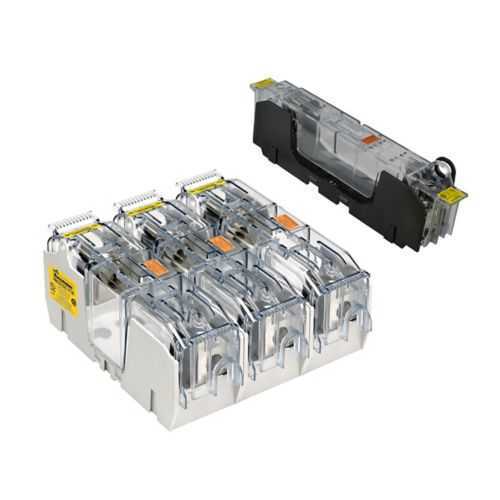

Eaton HM60030-1CHR Modular Fuse Block - 10 kA RMS
Part Number: HM60030-1CHR
Quick Summary
HM60030-1CHR from Eaton is a modular fuse block for panel or DIN-rail installation in 600 V power systems. It provides compact, reliable protection for critical circuits while simplifying replacement and maintenance. Engineers often grapple with selecting the correct fuse type and ensuring mounting compatibility, which can cause downtime; this unit addresses those challenges with box lug connections, hex-screw fasteners, and straightforward mounting options. The product carries RoHS compliance and PED 97/23 EC certification, reinforcing regulatory alignment in European and global markets. By accommodating Class H and Class K fuses and supporting #2-14 AWG stranded conductors, HM60030-1CHR delivers dependable protection with easy wiring, helping speed assembly, reduce spare parts, and improve long-term uptime for control panels and power-distribution blocks.
Product Information
Extended Description
HM60030-1CHR Eaton: Eaton Bussmann series HM modular fuse block, Box Lugs with hex screws, 30 A, 1P, 120°C, Class K, Class H, CVR(I)-RH-25030, Black, 10 kA, 75 °C, Stranded, Panel, DIN rail, 600 V, #2-14 AWG
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60030-1CHR
UPC
051712620390
Product Length/Depth
6.25 in
Product Height
2.3 in
Product Width
1.2 in
Product Weight
0.18208333 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
30 A
Impulse withstand voltage
10 kA RMS symmetrical
Interrupt rating
10 kAIC
Short-circuit rating
10 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor type
Stranded
Fuse type
Class H Class K
Number of Poles
Single-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-RH-25030
Connection
Box lug
Mounting method
Panel DIN rail
Special features
Box Lugs with Hex Screws
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Class H(K), J and R Power distribution fuse block overview
Class H(K), J and R Power distribution fuse block overview
Eaton Specification Sheet - HM60030-1CHR
Feature: Box Lugs with hex screws and single-pole configuration combined with a 30 A, 600 V rating. Business Impact: secure, vibration-resistant terminations and predictable protection characteristics, reducing maintenance time and downtime. Application: ideal for control panels and compact power-distribution blocks in harsh industrial environments. Feature: 10 kA RMS impulse withstand and 10 kAIC interrupt rating. Business Impact: higher fault tolerance and safer operation during surge or short-circuit events. Application: suitable for machines with high inrush or fault currents. Feature: Compatibility with Class H and Class K fuses. Business Impact: flexible protection strategy and spare-part flexibility, enabling easy substitution without redesigns. Application: motor drives, feeders, and essential loads. Feature: Conductor options rated for 'Both' and stranded #2-14 AWG. Business Impact: wiring versatility and reliable termination across a range of feeders, reducing installation time. Application: field wiring in cabinets with space constraints. Feature: Panel mounting and DIN-rail compatibility with compact dimensions (6.25 in L x 2.3 in H x 1.2 in W). Business Impact: improved panel density and faster integration in new or retrofit builds. Application: space-constrained control panels and machine enclosures. Feature: RoHS compliance and PED 97/23 EC certification. Business Impact: regulatory risk reduction and easier market access in RoHS/European markets. Application: standard compliance in European and global deployments.
