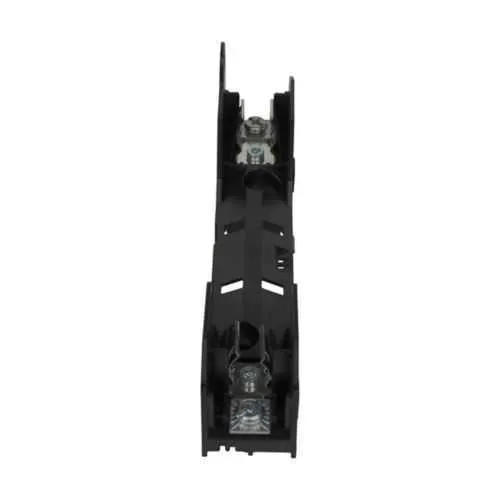

Eaton HM60030-1PR Fuse Block - UL Listed Class H/K
Part Number: HM60030-1PR
Quick Summary
The Eaton HM60030-1PR fuse block protects single-pole circuits in control panels and industrial equipment. Manufacturers often wrestle with finding protective blocks that fit compact spaces while delivering reliable short-circuit and voltage protection. This unit carries UL Listed and CSA Certified marks and RoHS compliance, easing regulatory qualification across North American and international installations. As part of the Bussmann HM modular line, it supports 0–30 A at 600 V with a 10 kA short-circuit rating, offering reliable performance and easy procurement. This combination translates to faster panel commissioning, lower nonconformance risk, and streamlined maintenance for industrial systems. Engineers benefit from clear markings, reliable mounting, and fast sourcing through Eaton's HM modular fuse block family.
Product Information
Extended Description
HM60030-1PR Eaton: Eaton Bussmann series HM modular fuse block, PR, 0-30 A, Single-pole, Class K, Class H, 10 kA, Screw with pressure plate, 10 kAIC, 600 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60030-1PR
UPC
051712511421
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
10 kA
Voltage rating
600 V
Number of Poles
Single-pole
Class
Class H Class K
Special features
PR
HM60030-1PR~Fuse Block, Class H, 600V 30A, 1 Pole
HM60030-1PR~Fuse Block, Class H, 600V 30A, 1 Pole
Class H(K), J and R Power distribution fuse block overview
Class H(K), J and R Power distribution fuse block overview
Eaton Specification Sheet - HM60030-1PR
Feature: Engineered amperage and voltage protection—0-30 A at 600 V with a 10 kA short‑circuit rating. Business Impact: Enables precise protection for small-control circuits, supporting selective coordination in compact panels and reducing nuisance trips. Application: Ideal for motor starters, PLC rails, and distributed I/O enclosures. Feature: Screw with pressure plate mounting provides secure retention in vibration-prone environments, reducing contact loosening and maintenance time. Business Impact: Longer service life and fewer field adjustments in conveyors, robotics cells, and packaging lines. Application: Panel assemblies in heavy-duty manufacturing environments. Feature: RoHS compliance, UL Listed, and CSA Certified marks streamline regulatory approvals and audits. Business Impact: Cuts validation time and retrofit costs, enabling smoother global deployments. Application: Global manufacturing plants and multi-site automation projects. Feature: Class H and Class K compatibility offers flexible protection schemes with HM fuses. Business Impact: Simplifies design reuse and BOM management across legacy and new panels. Application: Industrial control panels needing coordinated protection. Feature: Lightweight, compact HM modular family integration at 0.1 lb. Business Impact: Eases logistics, speeds panel assembly, and reduces handling in field service. Application: OEM assemblies, retrofit kits, and on-site installations.
Get a Quick Quote for a Eaton HM60030-1PR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM60030-1PR?
Enquire Now
FAQs
The HM60030-1PR is designed as a single-pole HM modular fuse block intended to accept Bussmann HM class fuses, including Class H and Class K devices. It supports an operating range of 0-30 A at 600 V and offers a 10 kA interrupt rating, enabling flexible protection schemes. Always pair the block with the appropriate class fuse to ensure coordinated protection and regulatory compliance.
HM60030-1PR carries UL Listed and CSA Certified marks and is RoHS compliant. These certifications simplify safety approvals, traceability, and audits across North American and international installations. For OEMs and integrators, certified protection blocks reduce risk during design reviews and accelerate time-to-market for global panels.
Installers should note the unit is a compact, single-pole fuse block with a screw and pressure plate termination for secure mounting. In tight panels, plan for straightforward access to the termination screws and ensure voltage and current ratings match the protected circuit. Proper torque on the screws avoids loosening under vibration and maintains reliable connectivity.
Key specs include an amperage rating of 0-30 A, voltage rating of 600 V, and a 10 kA short-circuit rating. It is a single-pole device with Class H and Class K compatibility and is part of Eaton's Bussmann HM modular fuse family. The unit is RoHS compliant and UL Listed with CSA certification, suitable for 600 V control panels.
You can access multiple Eaton resources for HM60030-1PR, including the Eaton Specification Sheet HM60030-1PR and full-line Bussmann catalogs. Digital assets also include product overviews and installation guidance, along with the 051712511421 UPC information for procurement. These documents support design decisions, installation planning, and regulatory verification.
