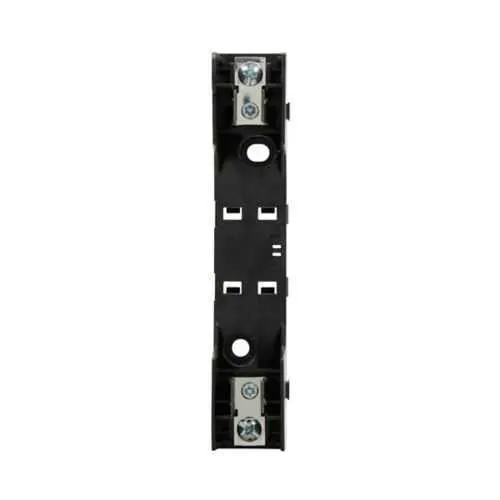

Eaton HM60030-1SR HM modular fuse block - UL Listed
Part Number: HM60030-1SR
Quick Summary
The Eaton HM60030-1SR is a modular fuse block designed for reliable overcurrent protection in industrial control panels. Engineers often face cramped panel spaces and difficult fuse replacements, which can drive maintenance downtime. Certified UL Listed and CSA Certified, with RoHS compliance, it meets rigorous safety and environmental standards. Featuring a 0-30 A capacity at 600 V and a 10 kAIC short-circuit rating, it supports modern machinery while keeping spare parts lean. Its single-pole SR design and compatibility with Class H and Class K fuses simplify coordination and replacement strategies, delivering both reliability and operational efficiency for critical control circuits.
Product Information
Extended Description
HM60030-1SR Eaton: Eaton Bussmann series HM modular fuse block, SR, 0-30 A, Single-pole, Class K, Class H, 10 kAIC, 600 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60030-1SR
UPC
051712511391
Product Length/Depth
6.25 in
Product Height
2.27 in
Product Width
1.21 in
Product Weight
0.14 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
10 kA
Voltage rating
600 V
Number of Poles
Single-pole
Class
Class H Class K
Special features
SR
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM60030-1SR
Feature is compact modular fuse block with a 0-30A amperage rating. Business impact is space-efficient protection that reduces panel depth and simplifies wiring logistics, enabling faster installation in control panels and switchgear. Application focuses on industrial automation and machine control where quick fuse changes minimize downtime in routine maintenance. Feature includes 600 V voltage rating and 10 kAIC short-circuit capability. Business impact is enhanced fault-tolerance in high-current environments, enabling safer startups and reduced risk during fault events. Application spans machine enclosures and electrical cabinets requiring robust, fast-replaceable protection. Feature emphasizes RoHS compliance and UL/CSA certifications. Business impact includes regulatory alignment, simpler procurement, and validated safety for manufacturing lines. Application covers Eaton Bussmann HM series integration with Class H and Class K fuse classifications. Feature notes SR special features for clear identification and rapid maintenance workflows. Business impact includes improved uptime and streamlined stocking of single-pole protection options.
Get a Quick Quote for a Eaton HM60030-1SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM60030-1SR?
Enquire Now
FAQs
Yes. The HM60030-1SR is designed for single-pole protection and supports Class H and Class K fuse types, enabling flexible coordination in compact control panels. This compatibility simplifies spare part stocking and ensures consistent performance across different fuse families while maintaining a slim form factor suitable for space-constrained enclosures.
The fuse block is rated for 0-30 A, with a 600 V maximum voltage rating and a 10 kA Short-Circuit Rating (AIC). These specs enable safe operation in typical industrial control circuits, providing robust protection against overcurrent conditions and fast interruption of faults in high-current environments.
The HM60030-1SR excels in manufacturing, packaging, and process industries where control panels and switchgear require compact, reliable protection. Its single-pole design fits narrow enclosures, while UL Listed, CSA Certified, and RoHS compliance support compliance-heavy environments and procurement standards for automation projects.
This unit carries UL Listed and CSA Certified markings and RoHS compliance, aligning with common electrical safety and environmental requirements in North American facilities. These certifications support safe integration into accredited electrical assemblies and facilitate supplier qualification during audits.
The compact footprint and lightweight 0.14 lb design save panel space and simplify wiring. The single-pole SR configuration enables rapid fuse replacement, reducing downtime and inventory complexity. Combined with wide compatibility and robust ratings, this fuse block delivers lower lifecycle costs and faster maintenance cycles for automated systems.
