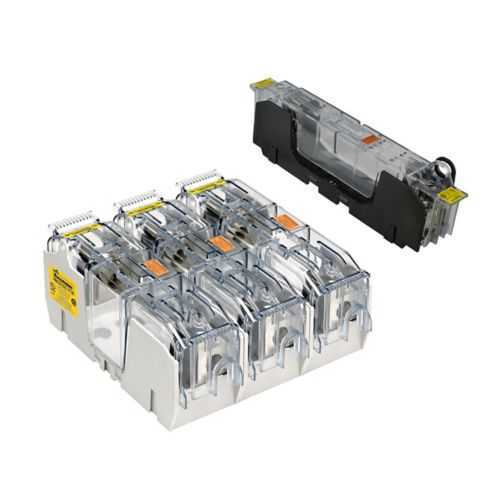

Eaton HM60030-2CHR Modular Fuse Block - 10 kA RMS
Part Number: HM60030-2CHR
Quick Summary
Eaton HM60030-2CHR modular fuse block protects 2-pole DIN rail panel circuits. Engineers often face downtime from fuse failures and difficult terminations, driving maintenance costs. This unit supports RoHS compliance and PED 97/23 EC certification, with a 600 V rating and 10 kA RMS capacity. The box lug termination with hex screws, 50 lb-in torque, and #2–14 AWG wiring simplifies installation and enhances reliability. Designed for electrical protection and control in industrial automation, HM60030-2CHR delivers predictable performance while reducing downtime and service costs. Its compact footprint—6.25 in long, 2.3 in high, and 2.4 in wide—fits tight panels and crowded control cabinets.
Product Information
Extended Description
HM60030-2CHR Eaton: Eaton Bussmann series HM modular fuse block, Box lugs with hex screws, 30 A, 2P, 120°C, Class K, Class H, CVR(I)-RH-25030, 10 kA RMS symm, Black, 10 kA, 75 °C, Stranded, DIN rail, Panel, 600 V, #2-14 AWG
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60030-2CHR
UPC
051712620406
Product Length/Depth
6.25 in
Product Height
2.3 in
Product Width
2.4 in
Product Weight
0.36416667 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
30 A
Impulse withstand voltage
10 kA RMS symmetrical
Interrupt rating
10 kAIC
Short-circuit rating
10 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor type
Stranded
Fuse type
Class H Class K
Number of Poles
Two-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-RH-25030
Connection
Box lug
Mounting method
Panel DIN rail
Special features
Box Lugs with Hex Screws
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM60030-2CHR
Feature: Two-pole design with a 30 A, 600 V rating and compatibility with Class H and Class K fuses. Business Impact: Delivers reliable overcurrent protection for critical control circuits while enabling standardized fuse types. Application: Panel assemblies and DIN-rail mounted protections in machine dashboards. The HM60030-2CHR supports faster part replacement and reduced spare parts inventory, improving maintenance turnaround times. Feature: Box lug termination with hex screws and a torque rating of 50 lb-in, plus support for #2–14 AWG conductors. Business Impact: Secure, vibration-resistant connections that minimize hot terminals and intermittent faults. Application: Industrial environments with frequent vibration and wiring variations. Feature: Impulse withstand of 10 kA RMS symmetrical and interrupt rating of 10 kAIC. Business Impact: Higher surge tolerance reduces nuisance trips and extends equipment life. Application: High-energy panels and motor control centers. Feature: Panel and DIN-rail mounting with compact dimensions and modest weight. Business Impact: Easier installation in crowded control panels and retrofit projects, lowering installation labor costs. Application: Modern machine builds and retrofit jobs requiring space efficiency. Feature: RoHS compliance and PED certs, along with CVR(I)-RH-25030 accessory option. Business Impact: Regulatory alignment for global markets and enhanced overall safety. Application: Environments demanding environmental and pressure equipment standards.
Get a Quick Quote for a Eaton HM60030-2CHR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM60030-2CHR?
Enquire Now
FAQs
HM60030-2CHR is designed for both panel mounting and DIN rail installation, utilizing box lug terminations with hex screws for secure connections. The recommended torque is up to 50 lb-in, and it accepts conductor sizes #2 through #14 AWG. This combination provides robust mechanical stability in vibration-prone environments and simplifies retrofit projects by using standard termination hardware.
This unit delivers 30 A at 600 V with a 10 kA RMS symmetrical impulse withstand and a 10 kAIC interrupt rating. These ratings translate to strong short-circuit protection and surge tolerance for demanding control circuits, reducing the risk of equipment damage and downtime while enabling compatibility with Class H and Class K fuses.
Yes. HM60030-2CHR is RoHS compliant and carries PED 97/23 EC certification, meeting environmental and regulatory requirements common in European and global markets. This ensures safer materials usage and compliance in industries such as chemical processing, metal fabrication, and automated manufacturing with stringent safety standards.
Best suited for electrical protection and circuit control in control panels, machine enclosures, and safety circuits. The 2P 30 A/600 V rating, along with convenient box-lug termination and DIN rail compatibility, makes it ideal for compact control cabinets, robotics panels, and expands to retrofit projects where reliable fuse protection is critical for uptime.
Maintenance benefits arise from its robust termination, high fault current tolerance, and standard wiring options that simplify inspections. ROI is supported by reduced downtime due to lower nuisance trips, easier fuse replacement with hex-screw lugs, and a compact footprint that minimizes panel redesign costs in upgrades or new builds, delivering long-term lifecycle value.
