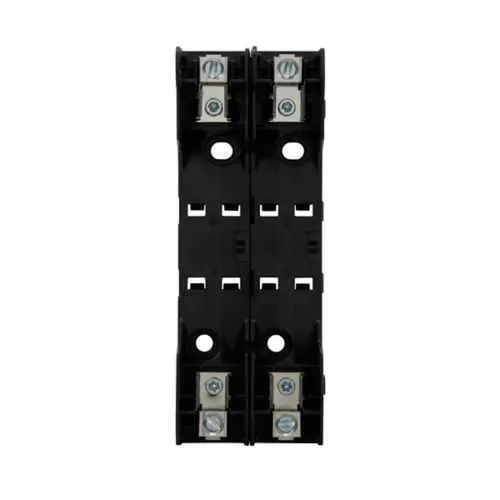

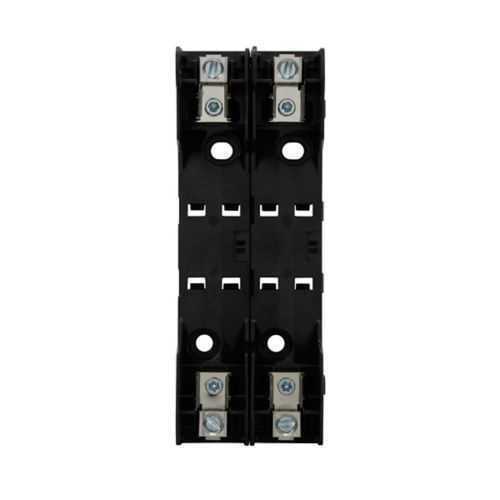

Eaton HM60030-2CR Fuse Block - UL Listed
Part Number: HM60030-2CR
Quick Summary
The Eaton HM60030-2CR modular fuse block protects electrical circuits in industrial panels, delivering reliable overcurrent protection. In harsh industrial environments, timing and accuracy matter when replacing fuses, so correct rating and quick replacement reduce downtime. This device carries UL Listed and CSA Certified marks and RoHS compliance, ensuring regulatory alignment across multiple regions. Optimized for 0-30 A at up to 600 V, it supports two-pole installations with Class H and Class K fuse compatibility, simplifying spares and maintenance. Engineers benefit from a compact, proven protection solution that aligns with modern panel design and supplier reliability, supporting efficient procurement and reduced total cost of ownership.
Product Information
Extended Description
HM60030-2CR Eaton: Eaton Bussmann series HM modular fuse block, CR, 0-30 A, Two-pole, Class H, Class K, 10 kAIC, 600 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60030-2CR
UPC
051712511469
Product Length/Depth
6.2 in
Product Height
2.25 in
Product Width
3.48 in
Product Weight
0.45 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
10 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class K Class H
Special features
CR
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Class H(K), J and R Power distribution fuse block overview
Class H(K), J and R Power distribution fuse block overview
Eaton Specification Sheet - HM60030-2CR
The HM60030-2CR is a two-pole modular fuse block rated for 0–30 A and 600 V, enabling compact protection in power distribution and control panels. This compatibility reduces panel depth and wiring complexity, cutting installation time and improving serviceability in industrial machines, conveyor drives, and motor control centers. With a 10 kAIC short-circuit rating, the unit tolerates high fault currents without immediate failure, protecting downstream equipment and lowering the risk of cascading damage during faults. UL Listed and CSA Certified, along with RoHS compliance, streamline regulatory approvals and supplier qualification across regions, accelerating time-to-market for equipment builds. The CR design supports straightforward labeling and replacement, contributing to lower maintenance costs and improved uptime. Built to the Bussmann HM modular family standards, it offers reliable sourcing and predictable performance across fleets of panels and machines.
Get a Quick Quote for a Eaton HM60030-2CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM60030-2CR?
Enquire Now
FAQs
Installation begins with ensuring the panel provides a 600 V rating and that the load does not exceed 30 A per pole. Mount the two-pole block securely, insert the appropriate Class H or Class K fuses, and connect conductors per the wiring diagram. Verify tightness of terminations and perform a functional check with a protected load to confirm correct operation and short-circuit clearance behavior.
The HM60030-2CR is rated for 0-30 A per pole and up to 600 V. It is a two-pole modular fuse block designed for industrial control and power distribution applications, with a short-circuit rating of 10 kA. These specifications support reliable protection in medium-power panels while remaining compatible with Class H and Class K fuses.
Yes, the HM60030-2CR carries UL Listed and CSA Certified marks, confirming compliance with established safety standards. RoHS compliance further ensures restricted substances are minimized. This combination facilitates regulatory approvals across regions, reduces verification effort for customers, and supports faster deployment in multi-national projects.
This two-pole modular fuse block is ideal for industrial control panels, motor control centers, and power distribution assemblies where space is at a premium and reliable overcurrent protection is critical. Its 0-30 A and 600 V ratings, along with 10 kAIC withstand capability, make it suitable for motors, drives, and feeders in manufacturing environments.
The HM60030-2CR provides predictable, vendor-certified protection with easy replacement and labeling (CR designation), reducing maintenance time during fuse changes. Its compatibility with Class H/K fuses simplifies stocking, minimizes spare-part variety, and lowers lifecycle costs. The robust short-circuit rating minimizes equipment downtime after faults, contributing to higher overall equipment effectiveness (OEE).
