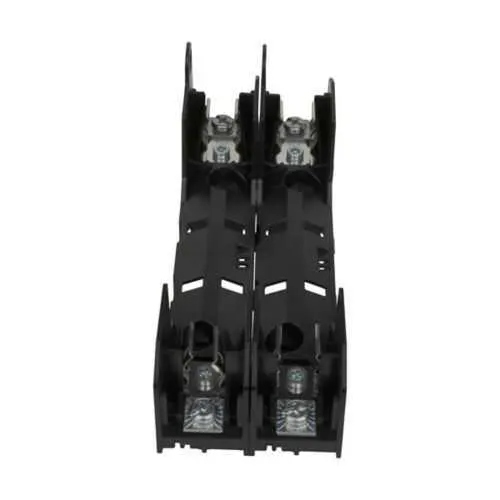

Eaton HM60030-2PR Fuse Block 600V 30A - UL Listed
Part Number: HM60030-2PR
Quick Summary
The Eaton HM60030-2PR fuse block provides modular protection for 600 V circuits in industrial control panels. Engineers often struggle with compact layouts and reliable terminations that endure vibration, heat, and frequent servicing. UL Listed, CSA Certified, and RoHS compliant marks are supported, along with Class H and Class K fusing options for selective protection of critical loads. Designed for 0-30 A operation and two-pole configuration, its screw with pressure plate terminations deliver secure field installs and low contact resistance. Compatibility with the Eaton HM modular family enables scalable protection across machines, power distribution blocks, and upgrade paths, delivering reduced part diversity and faster maintenance.
Product Information
Extended Description
HM60030-2PR Eaton: Eaton Bussmann series HM modular fuse block, 0-30 A, Two-pole, Class K, Class H, 10 kA, Screw with pressure plate, 10 kAIC, 600 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60030-2PR
UPC
051712511438
Product Length/Depth
6.2 in
Product Height
2.25 in
Product Width
3.48 in
Product Weight
0.45 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
10 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class K Class H
HM60030-2PR~Fuse Block, Class H, 600V 30A, 2 Pole
HM60030-2PR~Fuse Block, Class H, 600V 30A, 2 Pole
Class H(K), J and R Power distribution fuse block overview
Class H(K), J and R Power distribution fuse block overview
Eaton Specification Sheet - HM60030-2PR
Two-pole modular fuse block enables compact protection schemes in tight panel layouts, reducing wiring complexity and freeing space for other components. This improves serviceability and speeds replacement by enabling rapid pull-and-replace of a single module rather than an entire assembly. The HM60030-2PR is compatible with the Eaton Bussmann HM family, ensuring consistent interfaces across new installations and upgrades. Feature: 0-30 A continuous amperage rating with a 10 kAIC short-circuit rating provides reliable fault tolerance; Business Impact: Protects equipment from faults while reducing downtime and unplanned outages; Application: Ideal for general protection in 600 V industrial systems with moderate fault currents. Feature: Screw with pressure plate termination delivers secure terminations, better vibration resistance, and long-term connection reliability; Application: Suitable for high-vibration environments in manufacturing and material handling. Feature: RoHS compliant, UL Listed, CSA Certified streamlines procurement and regulatory alignment; Application: Widely applicable across automotive, packaging, and process industries requiring certified protection. Feature: Class K and Class H protection enables selective coordination for critical loads; Application: Used in control circuits where dual-class protection improves selectivity and equipment protection.
Get a Quick Quote for a Eaton HM60030-2PR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM60030-2PR?
Enquire Now
FAQs
Install the HM60030-2PR by mounting it in the two-pole module slot of Eaton’s HM modular fuse block family. It uses screw with pressure plate terminations for secure, vibration‑resistant connections and supports 0–30 A at 600 V with a 10 kA short‑circuit rating. It’s designed to be a direct fit within the HM family for scalable protection.
Key ratings are 0–30 A amperage, 600 V voltage, and 10 kA short‑circuit rating, with two poles and Class H and Class K protection. The device is RoHS compliant and carries UL Listed and CSA Certified markings, making it suitable for many industrial applications requiring certified protection.
Yes. The HM60030-2PR is a Class H/Class K fuse block designed to protect two-pole circuits up to 600 V. It supports the HM modular configurations for compact, code‑compliant protection in control panels, machine tools, and power distribution blocks. With a 10 kAIC rating, it handles typical fault currents encountered in industrial environments.
The HM60030-2PR carries UL Listed and CSA Certified marks and RoHS compliance, ensuring safety, electrical performance, and regulatory alignment for industrial environments. These certifications simplify supplier qualification, reduce sourcing risk for OEMs, and support procurement standards across machinery, conveyors, and control panels requiring certified protection.
Maintenance is minimal due to a durable screw with pressure plate termination and a modular design that enables quick fuse block replacement without rewiring. The 0–30 A, 600 V rating and 10 kAIC fault current handling reduce downtime, extend service intervals, and lower spare parts costs for ongoing production lines, contributing to a favorable total cost of ownership.
