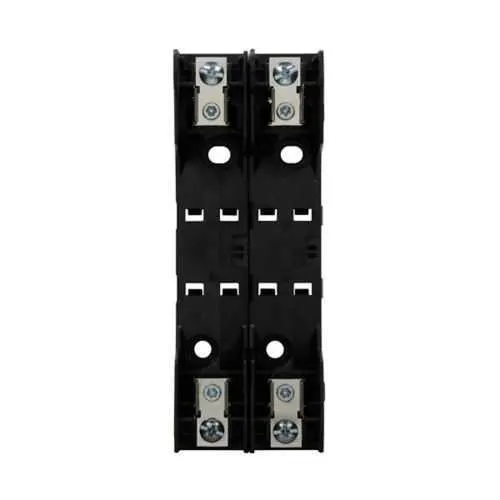

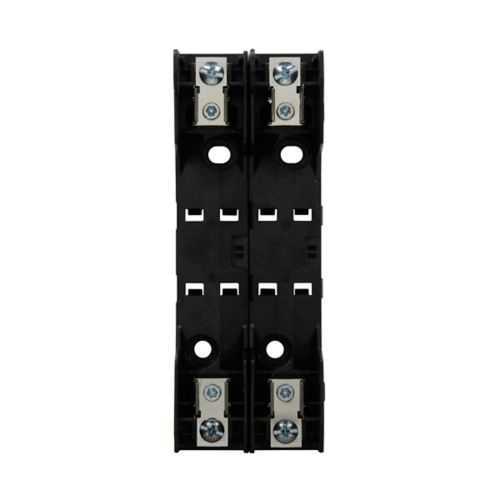

Eaton HM60030-2SR Modular Fuse Block - 10 kAIC
Part Number: HM60030-2SR
Quick Summary
The Eaton HM60030-2SR modular fuse block provides reliable overcurrent protection for control panels and industrial machinery. Engineers often struggle with downtime caused by fuse failures and cramped panel spaces, making maintenance slow and costly. UL Listed, CSA Certified, and RoHS Compliant, this device aligns with safety, regulatory, and environmental standards. Its compact two‑pole footprint supports efficient space utilization, while 0–30 A protection and a 600 V rating deliver scalable protection for diverse control circuits and motor feeder applications. By reducing spare parts variety and simplifying replacement, it improves maintenance efficiency and overall system uptime.
Product Information
Extended Description
HM60030-2SR Eaton: Eaton Bussmann series HM modular fuse block, 0-30 A, Two-pole, Class H, Class K, 10 kAIC, 600 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60030-2SR
UPC
051712511407
Product Length/Depth
6.2 in
Product Height
2.25 in
Product Width
3.48 in
Product Weight
0.45 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
10 kA
Voltage rating
600 V
Number of Poles
Two-pole
Class
Class H Class K
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Class H(K), J and R Power distribution fuse block overview
Class H(K), J and R Power distribution fuse block overview
Eaton Specification Sheet - HM60030-2SR
The HM60030-2SR delivers a wide 0-30 A amperage range and a 10 kA short-circuit rating at 600 V, enabling dependable protection for feeders and control circuits while maintaining a compact form factor. This translates to tangible business value by limiting fault exposure, lowering downtime, and reducing panel footprint in crowded enclosures. In practice, the two‑pole modular design simplifies wiring, speeds field upgrades, and minimizes panel rework during hardware changes, supporting lean maintenance programs and faster changeovers in automation lines. Compatibility with Class H and Class K fuse types reduces inventory diversity, streamlining procurement and stocking for electrical contractors and OEMs. RoHS compliance and safety certifications further de-risk projects, ensuring compliance with environmental and regulatory requirements while supporting ongoing component lifecycle management. The combination of a proven Bussmann HM platform and Eaton’s reliability delivers predictable performance in harsh industrial environments, where space, cost, and uptime matter most. Installation benefits include straightforward mounting, clear labeling, and consistent engineering practices across control panels and power distribution assemblies. Industry practitioners report smoother panel audits and faster fault isolation thanks to standardized HM modular fuse blocks.
Get a Quick Quote for a Eaton HM60030-2SR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM60030-2SR?
Enquire Now
FAQs
Yes, the HM60030-2SR is designed for Class H and Class K fuse types within a two‑pole modular block, rated up to 30 A and 600 V. It mounts in standard panel spaces, with a compact footprint of 6.2 in length, 3.48 in width, and 2.25 in height. Use proper labeling, secure mounting, and follow Eaton wiring diagrams to ensure reliable connections and safe operation.
The fuse block handles 0–30 A per pole with a short-circuit rating of 10 kA at 600 V. It is RoHS compliant and UL Listed, CSA Certified, ensuring safety and regulatory alignment. These specs support reliable protection for control circuits, motor feeders, and power distribution blocks in medium‑voltage industrial environments.
It is well suited for control panels, motor control centers, and industrial automation assemblies requiring compact, two‑pole overcurrent protection. The 0–30 A range and 600 V rating pair with Class H and Class K fuses to protect downstream equipment, while the modular design simplifies panel layout and future upgrades in machine automation and process control.
The HM60030-2SR carries UL Listed and CSA Certified markings and is RoHS compliant. These certifications support safety compliance, environmental responsibility, and ease of passing regulatory audits for industrial equipment, helping OEMs meet wiring standards and customers’ internal procurement requirements.
Technical documentation is available through Eaton’s official assets, including the Eaton Specification Sheet for HM60030-2SR and the Bussmann catalog. These resources support installation guidance, replacement fuse compatibility, and lifecycle planning, enabling maintenance teams to forecast part availability and minimize downtime in automated lines.
