Eaton HM60030-3CHR Modular Fuse Block - PED 97/23 EC
Part Number: HM60030-3CHR
Quick Summary
The Eaton HM60030-3CHR modular fuse block provides reliable circuit protection for control panels and DIN-rail installations. Design engineers often face wiring access, mounting flexibility, and ensuring quick, compliant protection in confined spaces. RoHS compliant and PED certified, it meets essential regulatory requirements while supporting traceability and safety. With 30 A capacity, 600 V rating, and three poles, it delivers robust short-circuit protection without sacrificing installation efficiency. Box lugs with hex screws, DIN rail or panel mounting, and compatibility with #2-14 AWG conductors streamline field wiring and maintenance. This combination reduces miswiring risk and accelerates commissioning in evolving automation environments, supporting lifecycle performance and lower total cost of ownership. Industry teams can rely on Eaton's documented specifications and application notes for integration.
Product Information
Extended Description
HM60030-3CHR Eaton: Eaton Bussmann series HM modular fuse block, Box lugs with hex screws, 30 A, 3P, 120°C, Class K, Class H, CVR(I)-RH-25030, Black, 10 kA, 75 °C, DIN rail, Panel, 600 V, #2-14 AWG
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60030-3CHR
UPC
051712620413
Product Length/Depth
6.25 in
Product Height
2.3 in
Product Width
3.5 in
Product Weight
0.54625 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
30 A
Impulse withstand voltage
10 kA RMS symmetrical
Interrupt rating
10 kAIC
Short-circuit rating
10 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor type
Stranded
Fuse type
Class H Class K
Number of Poles
Three-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-RH-25030
Connection
Box lug
Mounting method
Panel DIN rail
Special features
Box Lugs with Hex Screws

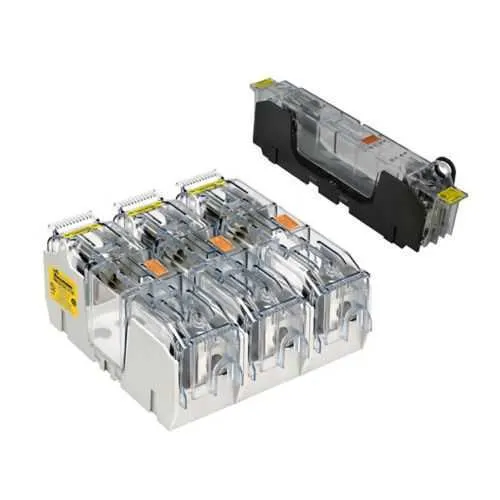

HM60030-3CHR~FUSE BLK, H 600V 30A 3P
HM60030-3CHR~FUSE BLK, H 600V 30A 3P
Class H(K), J and R Power distribution fuse block overview
Class H(K), J and R Power distribution fuse block overview
Eaton Specification Sheet - HM60030-3CHR
Feature → Business Impact → Application: The HM60030-3CHR offers a three-pole, 30 A rated module that delivers dependable short-circuit protection for multi-line circuits in control panels, reducing downtime and equipment damage. Application: Ideal for DIN-rail and panel mounting in industrial automation environments, enabling compact installations without compromising protection. Feature → Business Impact → Application: Box lugs with hex screws simplify field wiring and improve terminal reliability; combined with a 50 lb-in torque specification, this reduces loose connections and maintenance calls. Application: Suitable for #2-14 AWG conductors in power distribution blocks and machine controls. Feature → Business Impact → Application: 600 V rating and 10 kA RMS interrupt capability provide robust protection against surges and faults, supporting compliance with safety standards and lowering risk in high-energy systems. Application: Appropriate for 3P power distribution blocks in machinery and packaging lines. Feature → Business Impact → Application: RoHS compliant and PED certified ensures regulatory alignment; documentation (CVR(I)-RH-25030 accessory) aids certification audits and spares planning. Application: Streamlined procurement and lifecycle management for panel builders and OEMs.
