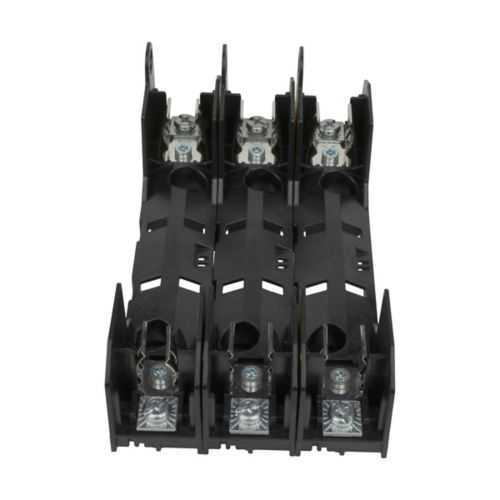

Eaton HM60030-3PR Modular Fuse Block - UL Listed
Part Number: HM60030-3PR
Quick Summary
The Eaton HM60030-3PR modular fuse block provides reliable overcurrent protection for three‑phase control panels and machine wiring. This compact, robust block helps engineers overcome space constraints while maintaining secure termination and quick field replacements. It carries UL Listed, CSA Certified markings and RoHS compliance, supporting safety regimes and regulatory audits. The modular design reduces wiring complexity in panel builds, enabling faster commissioning and easier future expansions. With a 0-30 A amperage range, 10 kAIC interrupt rating, and a 600 V rating, it matches common industrial protection requirements while supporting Class H and Class K fuses. For integrators, the combination of screw with pressure plate mounting and standard Bussmann HM series compatibility translates to lower install effort and longer service life.
Product Information
Extended Description
HM60030-3PR Eaton: Eaton Bussmann series HM modular fuse block, 0-30 A, Three-pole, Class H, Class K, Screw with pressure plate, 10 kAIC, 600 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60030-3PR
UPC
051712511445
Product Length/Depth
6.25 in
Product Height
2.25 in
Product Width
3.5 in
Product Weight
0.45 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
0-30A
Short-circuit rating
10 kA
Voltage rating
600 V
Number of Poles
Three-pole
Class
Class K Class H
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM60030-3PR
Space-saving modular design reduces panel footprint, freeing space for wiring and future upgrades while lowering enclosure costs. This translates to faster installation, easier maintenance, and improved overall line reliability in machine control panels and automation cabinets. The 0-30 A amperage rating, 600 V voltage rating, and 10 kAIC short-circuit capability deliver predictable protection for feeders and motor circuits, minimizing downtime and protecting expensive equipment. Three-pole configuration simplifies wiring and fault isolation for multi‑phase systems, while Class H and Class K fuse compatibility ensures the HM60030-3PR works with Bussmann HM series devices for streamlined parts management. Screw with pressure plate terminations provide secure connections that resist vibration in harsh industrial environments, reducing rework and contact resistance over time. The RoHS compliant, UL Listed, and CSA Certified profile supports regulatory compliance and safer procurement in regulated industries.
Get a Quick Quote for a Eaton HM60030-3PR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM60030-3PR?
Enquire Now
FAQs
Install the HM60030-3PR as a three-pole modular fuse block with screw‑with‑pressure plate terminations. The unit measures 6.25 in L × 3.5 in W × 2.25 in H and weighs 0.45 lb, making it straightforward to mount in panel spaces designed for Bussmann HM series blocks. Ensure secure termination and proper alignment with adjacent components to minimize wiring complexity and vibration.
The block supports 0-30 A, 600 V operation with a 10 kAIC short-circuit rating. It is three-pole and compatible with Class H and Class K fuses, enabling robust overcurrent protection for multi‑phase circuits in industrial equipment.
Yes. The HM60030-3PR is RoHS compliant and carries UL Listed and CSA Certified markings, supporting regulatory compliance and safer procurement for regulated industries.
Best suited for machine control panels, motor control centers, servo drives, and distribution panels in manufacturing environments where compact, reliable three‑phase protection is required and HM series compatibility is desired for parts commonality.
The screw with pressure plate termination provides a secure and vibration‑resistant connection, reducing loose contacts over time. The compact three‑pole design simplifies diagnostic access and future expansions, lowering maintenance time and improving uptime in automated lines.
