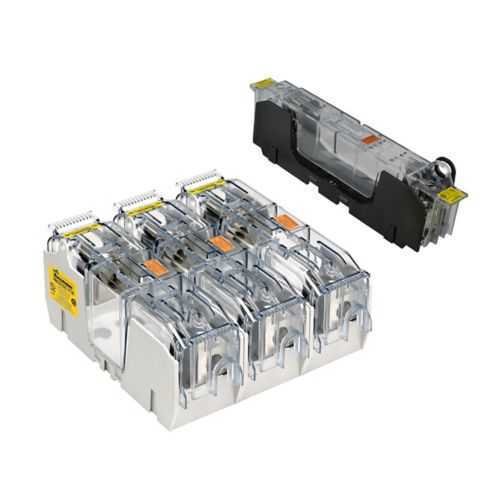

Eaton HM60060-2CHR Modular Fuse Block - 10 kA RMS

Part Number: HM60060-2CHR
HM60060-2CHR
Manufacturer
Eaton
Part number
HM60060-2CHR
Category

Quick Summary

Eaton HM60060-2CHR Fuse Block enables modular protection in control panels and power distributions. Engineers often struggle with crowded layouts, mismatched fuses, and time-consuming wiring when safeguarding circuits. This HM60060-2CHR addresses these challenges by combining box lugs with hex screws and DIN-rail mounting for fast, secure installation. It carries RoHS compliance and PED 97/23 EC certification, reassuring global regulatory acceptance, and supports Class H and Class K fuses for flexible protection. With a 60 A rating and 600 V maximum, it suits compact, high-demand applications, while robust 10 kA interrupt ratings ensure quick fault clearance. The design emphasizes reliability and ease of maintenance, delivering cost savings through reduced part variety and simpler spares management, complemented by easy accessory integration like CVR(I)-RH-60060.

Product Information

Extended Description

HM60060-2CHR Eaton: Eaton Bussmann series HM modular fuse block, Box lugs with hex screws, 60 A, 2P, 120°C, Class H, Class K, CVR(I)-RH-60060, Black, 10 kA, 75 °C, Panel, DIN rail, 600 V, #2-14 AWG
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60060-2CHR
UPC
051712620543
Product Length/Depth
6.8 in
Product Height
2.6 in
Product Width
3.1 in
Product Weight
0.50666667 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
10 kA RMS symmetrical
Interrupt rating
10 kAIC
Short-circuit rating
10 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor type
Stranded
Fuse type
Class H Class K
Number of Poles
Two-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-RH-60060
Connection
Box lug
Mounting method
DIN rail Panel
Special features
Box Lugs with Hex Screws
Bussmann series complete full line catalog no. 1007 Bussmann series complete full line catalog no. 1007 Class H(K), J and R Power distribution fuse block overview Class H(K), J and R Power distribution fuse block overview Eaton Specification Sheet - HM60060-2CHR
Feature: 2-pole modular fuse block with a 60 A, 600 V rating delivers targeted protection for control circuits. Business Impact: Enables reliable safeguarding of high-demand loads while keeping panel footprint small, reducing panel size and wire runs. Application: Ideal for compact control cabinets and machine panels that require robust protection without sacrificing space. Feature: Box lugs with hex screws provide secure, vibration-resistant terminations. Business Impact: Minimizes loose connections and maintenance visits, lowering downtime costs. Application: Suitable for DIN rail-mounted assemblies in rugged industrial environments. Feature: DIN rail and panel mounting compatibility offers flexible installation. Business Impact: Speeds up commissioning and simplifies upgrades during plant expansion. Application: Common in retrofits and new builds across automation infrastructure. Feature: RoHS compliance and PED 97/23 EC certification reduce regulatory risk. Business Impact: Improves global market eligibility and customer confidence, simplifying procurement across regions. Application: Critical for equipment shipped worldwide and integrated into certified safety systems. Feature: Class H and Class K fuse compatibility enables flexible protection schemes. Business Impact: Supports evolving protection strategies without replacing entire blocks, saving inventory costs. Application: Suitable for a variety of European and North American panel projects. Feature: Impulse withstand voltage of 10 kA RMS and short-circuit rating of 10 kA RMS symmetrical provide strong fault tolerance. Business Impact: Mitigates arc-flash risk and minimizes damage during short circuits, improving plant reliability. Application: Essential in high-current machinery and power distribution blocks. Feature: Wire size guidance #2-14 AWG ensures compatibility with common control wiring. Business Impact: Reduces re-termination and spare parts needs, accelerating field wiring. Application: Used in typical 24 VDC/120 VAC control circuits. Feature: Accessory CVR(I)-RH-60060 enables optional circuit verification and protection. Business Impact: Adds an extra layer of safety and diagnostics without costly redesigns. Application: Retrofit installations or new builds requiring enhanced visibility and protection.

Get a Quick Quote for a Eaton HM60060-2CHR

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton HM60060-2CHR? Enquire Now

FAQs

The HM60060-2CHR supports DIN rail mounting and panel installation with box lugs and hex screws for secure terminations. This combination facilitates fast field wiring, reduces loose connections, and simplifies retrofits in existing control cabinets while enabling clean, scalable layouts in new builds.
Key ratings include a 60 A amperage, 600 V voltage rating, 10 kA RMS interrupt rating, and 10 kAIC short-circuit rating. This combination provides robust fault protection for demanding loads, improves safety margins, and supports reliable operation in machine control circuits and panel boards.
Yes. The HM60060-2CHR is designed for DIN rail mounting and panel integration, offering a compact two-pole fuse block with box lug terminations. It fits standard control cabinets and supports quick upgrades or scalability for growing automation needs.
This fuse block is RoHS compliant and PED 97/23 EC certified, with additional designation for European safety and pressure equipment requirements. These certifications help ensure global market eligibility and regulatory alignment for equipment used in diverse industrial environments.
The HM60060-2CHR reduces spare part variety and simplifies maintenance through a single, versatile fuse block that covers multiple protection needs (H and K fuses). Its durable construction and high fault tolerance minimize downtime, while DIN rail compatibility speeds installation and future expansions, delivering measurable lifecycle cost savings.
