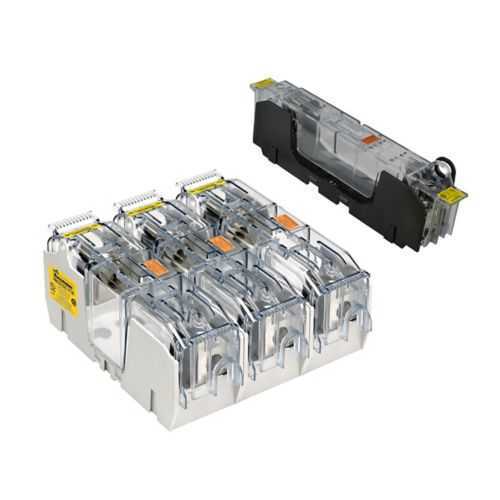

Eaton HM60060-3CHR HM Modular Fuse Block - PED 97/23 EC
Part Number: HM60060-3CHR
Quick Summary
The Eaton HM modular fuse block protects three-pole power circuits in panel and DIN rail installations. Engineers seek compact, code-compliant protection that’s simple to install and maintain under harsh industrial conditions. It carries RoHS compliance and PED 97/23 EC certification for European regulatory alignment, helping you meet safety and environmental requirements without extra sourcing complexity. With a 60 A rating, 10 kA RMS interruption, and Class K/H fuse capability, it delivers reliable protection while minimizing system downtime. Compatible with #2-14 AWG conductors and a 600 V maximum, it supports panel or DIN rail mounting, box lug connections, and straightforward field servicing, reducing lifecycle costs and accelerating project timelines.
Product Information
Extended Description
HM60060-3CHR Eaton: Eaton Bussmann series HM modular fuse block, Box Lugs with Hex Screws, 60 A, 3P, 10 kA RMS symm, 120°C, Class K, Class H, CVR(I)-RH-60060, 10 kA RMS symm, Black, Box lug, 75 °C, Stranded, Panel, DIN rail, 600 V, #2-14 AWG
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60060-3CHR
UPC
051712620550
Product Length/Depth
6.8 in
Product Height
2.6 in
Product Width
4.6 in
Product Weight
0.76 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
ARO European Pressure Equipment Directive (PED) 97 /23 EC
Amperage Rating
60 A
Impulse withstand voltage
10 kA RMS symmetrical
Interrupt rating
10 kAIC
Short-circuit rating
10 kA RMS symmetrical
Torque rating
50 lb-in maximum
Voltage rating
600 V
Color
Black
Conductor material rated for
Both
Conductor type
Stranded
Fuse type
Class K Class H
Number of Poles
Three-pole
Operating temperature - max
120 °C
Operating temperature - min
120 °C
Wire size
#2-14 AWG
Accessories
CVR(I)-RH-60060
Connection
Box lug
Mounting method
Panel DIN rail
Special features
Box Lugs with Hex Screws
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM60060-3CHR
60 A rating, 10 kA RMS symmetry interruption, and three-pole configuration provide robust fault protection for demanding loads. This enhances system resilience and reduces unplanned downtime, cutting repair costs and service intervals. It’s ideally suited for electrical protection in panel boards, motor control centers, and automated line sections. Box lug terminations with hex screws enable secure, vibration-resistant connections for #2-14 AWG conductors, improving wiring reliability and simplifying installation in crowded control panels. The 600 V rating supports common industrial power networks while maintaining safe operating margins. Mounting on both panels and DIN rails offers installation flexibility, reducing cabinet depth requirements and speeding panel upgrades. Compliance features including RoHS and PED 97/23 EC ensure regulatory alignment across European markets, easing audits and supplier qualification. The rugged black housing and CVR(I)-RH-60060 accessory compatibility support long service life and straightforward maintenance in harsh environments.
Get a Quick Quote for a Eaton HM60060-3CHR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM60060-3CHR?
Enquire Now
FAQs
Install the HM60060-3CHR on standard DIN rail or panel mounting rails using the included box lug connections. Verify conductor size (#2-14 AWG) and ensure tight hex-screw terminations for secure, vibration-resistant connections. When mounting, leave adequate clearance for heat dissipation and inspect for proper alignment with adjacent devices to avoid interference.
Key specifications include 60 A amperage rating, 600 V voltage rating, and 10 kA RMS symmetrical interrupt rating with 10 kAIC short-circuit capability. These figures indicate strong fault protection for medium-sized loads, protect downstream components, and help limit arc-flash risk while meeting typical industrial protection standards.
Yes. The HM60060-3CHR is RoHS compliant and carries PED 97/23 EC certification, aligning with European safety and environmental requirements. Its panel/DIN rail mounting and 600 V rating also suit European control panels and motor starters in automated lines and machine builds.
The unit is RoHS compliant and bears PED 97/23 EC certification (European Pressure Equipment Directive). This combination supports regulatory audits and supplier qualifications in many global markets, reducing compliance risk during design reviews and site inspections.
Maintenance is straightforward thanks to accessible box-lug terminations and DIN-rail/panel mounting. The 60 A/10 kA RMS ratings reduce downtime by providing reliable protection for critical loads, while the modular design simplifies replacements and field servicing, contributing to lower lifecycle costs and faster project turnover.
