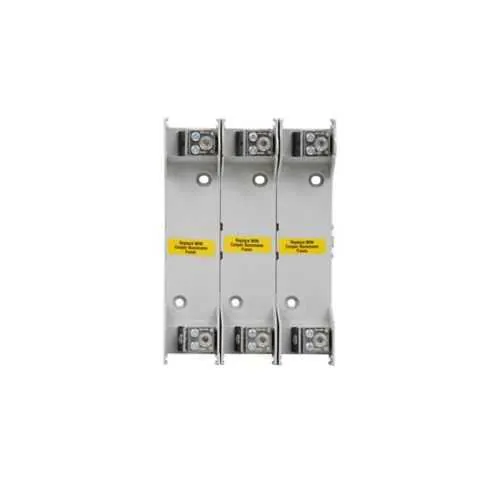

Eaton HM60100-1CR Modular Fuse Block - UL Listed
Part Number: HM60100-1CR
Quick Summary
Eaton HM60100-1CR modular fuse block protects electrical circuits in control panels and modular switchgear. Engineers rely on reliable, fast-replace protection to minimize downtime. UL Listed, CSA Certified, and RoHS Compliant certifications ensure safety and regulatory alignment in harsh industrial environments. The CR feature supports streamlined maintenance and compact integration in space-constrained cabinets while the 70–100 A rating and 600 V operating range match common industrial distributions. Designed for quick installation and predictable performance, this fuse block reduces spare-part inventories and lifecycle costs for motor drives, PLC I/O cabinets, and power distribution modules.
Product Information
Extended Description
HM60100-1CR Eaton: Eaton Bussmann series HM modular fuse block, CR, 70-100 A, Single-pole, Class H, Class K, 10 kAIC, 600 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60100-1CR
UPC
051712391153
Product Length/Depth
8.75 in
Product Height
2.75 in
Product Width
2 in
Product Weight
0.348 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
70-100A
Short-circuit rating
10 kA
Voltage rating
600 V
Number of Poles
Single-pole
Class
Class K Class H
Special features
CR
HM60100-1CR~100 amp class H fuse holder 600V -1 pole
HM60100-1CR~100 amp class H fuse holder 600V -1 pole
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM60100-1CR
Feature: 70–100 A protection with a 600 V rating. Business impact: provides precise overcurrent protection for control circuits and motor feeds, reducing nuisance trips and protecting equipment. Application: ideal for control panels and motor control centers in harsh industrial environments. The result is improved system availability and lower maintenance costs. Feature: Class H and Class K compatibility with CR feature. Business impact: enables selective protection with readily replaceable cartridge options, enhancing fault isolation and serviceability. Application: suited for varied protection schemes within the same panel, simplifying inventory and training. The outcome is faster repairs and clearer fault diagnostics. Feature: UL Listed and CSA Certified with RoHS compliance. Business impact: ensures regulatory compliance, supplier credibility, and safer product lifecycle, reducing risk for OEMs and end users. Application: critical in regulated industries like food & beverage, automation, and process control. The benefit is accelerated approvals and fewer compliance hold-ups. Feature: Single-pole design and compact footprint. Business impact: minimizes panel space requirements and enables straightforward retrofits in limited-clearance installations. Application: control cabinets, switchgear enclosures, and compact MCCs. Result: easier installation, lower hardware costs, and scalable protection. Feature: Lightweight, defined dimensions (8.75 in L, 2.75 in H, 2 in W, ~0.348 lb). Business impact: simplifies mounting and reduces weight constraints in large installations. Application: mass deployment across multiple panels with consistent fit and handling. The benefit is streamlined logistics and faster field deployment.
Get a Quick Quote for a Eaton HM60100-1CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM60100-1CR?
Enquire Now
FAQs
Installation requires mounting the unit in a compatible panel with a single-pole design. Verify panel clearance, secure with proper hardware, and connect to the protected circuit per Eaton's datasheet. The 8.75 in length and 2 in width facilitate straightforward mounting in standard RPP layouts, while the 0.348 lb weight helps simplify site handling and reduces installation fatigue.
HM60100-1CR provides 70–100 A protection at 600 V with a 10 kA short-circuit rating. This combination supports robust fault current interruption in industrial environments, aligning with typical MCC and control-cabinet protection schemes and helping to prevent downstream equipment damage.
Yes. The HM60100-1CR is designed to accommodate Class H and Class K protection schemes. This versatility supports selective coordination within a panel, enabling optimized fuse selection for varied load profiles and fault currents while simplifying stocking and maintenance.
The product is UL Listed, CSA Certified, and RoHS Compliant. These certifications support regulatory approvals, safer operation in harsh environments, and responsible materials management, which helps with customer audits and supplier qualification programs.
With a single-pole design and a compact footprint (8.75 in L, 2.75 in H, 2 in W), the HM60100-1CR is suitable for tight-panel installations and retrofit projects. Ensure compatible bus/rail mounting, plan for 600 V-rated circuits, and account for quick replacement during maintenance to minimize downtime.
