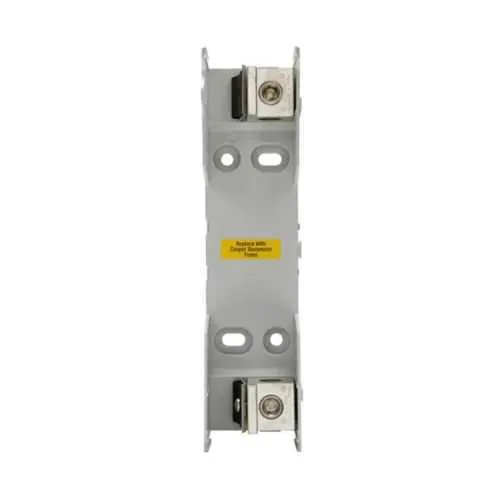

Eaton HM60200-1CR Modular Fuse Block - UL Listed
Part Number: HM60200-1CR
Quick Summary
Eaton HM60200-1CR modular fuse block is a compact, reliable overcurrent protection device designed for industrial electrical panels and control circuits. Engineers often struggle with space constraints and maintenance downtime when protecting critical loads; this module provides scalable, single-pole protection that fits tight panels. Certified RoHS compliant and UL Listed with CSA Certification, it helps meet regulatory requirements while maintaining safety margins. With a 110–200 A rating at 600 V and a 10 kA short-circuit rating, its compact footprint reduces wiring complexity and installation time. The HM60200-1CR aligns with Class K and Class H fuse types, offering flexible protection for diverse automation applications and ongoing cost savings.
Product Information
Extended Description
HM60200-1CR Eaton: Eaton Bussmann series HM modular fuse block, CR, 110-200 A, Single-pole, Class K, Class H, 10 kA, 10 kAIC, 600 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60200-1CR
UPC
051712387293
Product Length/Depth
1.5 in
Product Height
3.74 in
Product Width
2.6 in
Product Weight
0.9 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
110-200A
Short-circuit rating
10 kA
Voltage rating
600 V
Number of Poles
Single-pole
Class
Class K Class H
Special features
CR
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM60200-1CR
Datasheet - FNQ-30
Wide amperage range from 110 to 200 A enables a single HM60200-1CR module to protect a broad set of loads without swapping blocks. This reduces spare-part inventories and minimizes panel downtime during maintenance. Application: ideal for feeders, motor control circuits, and quick-expansion panels in automation lines. Low footprint and single-pole design save panel space and simplify wiring. This enables easier fitment in compact panels and faster installation. Application: control enclosures, machine-builds, and distributed I/O panels. Ten thousand ampere‑inrush fault protection is provided by a 10 kA short-circuit rating at 600 V. Impact: improves safety margins and reduces arc-flash exposure risk. Application: critical loads in power distribution units, motor starters, and high-current feeders. RoHS compliance, UL Listed, and CSA Certified status ensure regulatory acceptance. Impact: streamlines qualification, reduces compliance risk, and supports supplier audits. Application: procurement for industrial automation, panels in automotive, and process industries. CR designation and Class K/H compatibility provide flexible protection strategy. Impact: supports multiple fuse types with common blocks, minimizing inventory. Application: retrofit projects and modular machine builds for scalable protection.
Get a Quick Quote for a Eaton HM60200-1CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM60200-1CR?
Enquire Now
FAQs
The HM60200-1CR is designed for 110–200 A loads in single-pole configurations within industrial panels and supports Class K and Class H fuses. It is compatible with Eaton Bussmann HM modular systems, enabling easy upgrades and commonizing spares across multiple panel lines.
It delivers 110–200 A amperage, 600 V rating, and a 10 kA short-circuit capability with 10 kAIC interrupting rating. This combination provides robust fault protection while coordinating with upstream protection devices to minimize nuisance trips and equipment damage.
Yes. The compact, single-pole HM60200-1CR is well suited for motor control centers, PLC cabinets, and power distribution panels where space is at a premium. Its modular design simplifies expansion and maintenance without sacrificing protection performance or reliability.
Key certifications include UL Listed and CSA Certified, with RoHS compliance. These credentials support regulatory acceptance, customer qualification, and audit readiness across North America and many international markets.
Adopting the HM60200-1CR reduces spare parts sprawl, speeds field replacement, and shortens installation time thanks to its compact footprint and standard HM compatibility. The result is lower downtime, quicker panel upgrades, and a more scalable protection strategy for growing automation needs.
