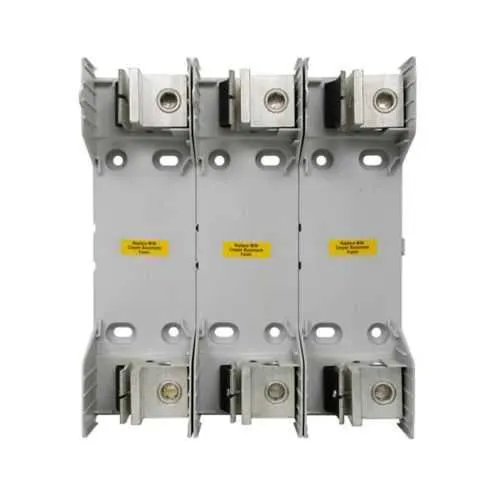

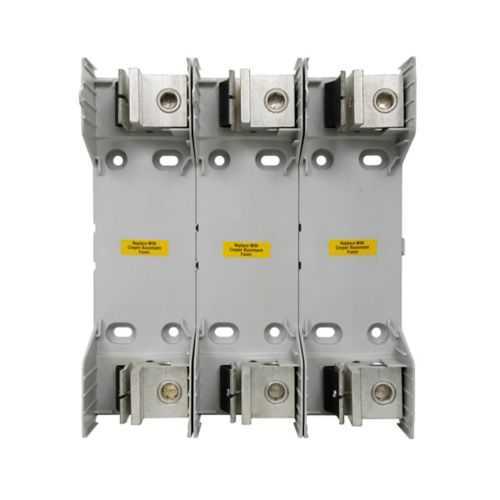

Eaton HM60400-3CR Fuse Block - UL Listed 600 V
Part Number: HM60400-3CR
Quick Summary
The Eaton HM60400-3CR fuse block provides reliable overcurrent protection for three-pole power circuits. Engineers often face space constraints, complex wiring, and downtime from inefficient fuse replacement; this modular block addresses those pain points with compact integration and straightforward maintenance. It carries RoHS compliance, UL Listed, and CSA Certified markings, along with a 600 V rating and a 225-400 A range, plus a 10 kA short‑circuit capability for robust protection. By aligning with the Bussmann HM family, it delivers standardized protection for automation panels while enabling faster procurement and easier sourcing of compatible fuses, ultimately reducing downtime and lifecycle costs for machine builders and panel shops.
Product Information
Extended Description
HM60400-3CR Eaton: Eaton Bussmann series HM modular fuse block, CR, 225-400 A, Three-pole, Class H, Class K, 10 kA, 10 kAIC, 600 V
Product Name
Eaton Bussmann series HM modular fuse block
Catalog Number
HM60400-3CR
UPC
051712386968
Product Length/Depth
12.5 in
Product Height
4.75 in
Product Width
11 in
Product Weight
6.92 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
225-400A
Short-circuit rating
10 kA
Voltage rating
600 V
Number of Poles
Three-pole
Class
Class K Class H
Special features
CR
HM60400-3CR~FUSE HOLDER
HM60400-3CR~FUSE HOLDER
Bussmann series Fuseology
Bussmann series Fuseology
Eaton Specification Sheet - HM60400-3CR
Datasheet - FNQ-30
The HM60400-3CR combines modular design with high current capability to streamline panel protections and maintenance workflows. Feature → Business Impact → Application: Three-pole modular construction enables consolidated wiring and cleaner panel layouts, reducing footprint and installation time in control panels for conveyors and packaging lines. This structure supports Class H and Class K fuses, providing flexibility for diverse protection strategies and simplifying stocking with standard Bussmann HM components. The 225-400 A amperage range paired with a 10 kA short-circuit rating at 600 V delivers dependable fault protection, minimizing unplanned outages in industrial automation and motor control centers. RoHS compliance, UL Listed, and CSA Certified markings reassure compliance and safety audits, lowering risk for OEMs and integrators while enabling easier supplier qualification. The block’s 12.5 in length, 11 in width, and 4.75 in height offer a compact footprint that fits tight panels, and its 6.92 lb weight aids in on-site handling during installation. Installation and service are simplified by the CR feature for quick fuse mounting and changes, reducing maintenance cycles and spare parts requirements. Overall, the HM60400-3CR supports streamlined procurement, standardized protection, and measurable uptime improvements for mid-to large-scale machine builds and panel enclosures.
Get a Quick Quote for a Eaton HM60400-3CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HM60400-3CR?
Enquire Now
FAQs
Installing the HM60400-3CR starts with confirming system voltage up to 600 V and amperage in the 225-400 A range. Mount the unit in a suitable enclosure space, wire the three poles to the incoming distribution and load circuits, and secure fuses using the CR mounting feature for quick swaps. Confirm continuity and perform a post-installation check for proper clearance and labeling. This approach minimizes startup time and ensures reliable protection across the panel.
The HM60400-3CR is rated for 225-400 A, with a short-circuit rating of 10 kA at 600 V. This combination supports high fault currents while maintaining safe operation for industrial control panels. The rating range accommodates a variety of Bussmann class fuses (H and K types) within a single modular block, simplifying protection strategy and spare parts planning.
Yes, the HM60400-3CR is RoHS compliant. It carries UL Listed and CSA Certified markings, ensuring conformity to North American electrical safety standards. This certification suite supports regulatory audits, supplier qualification, and risk mitigation for panel builders, OEMs, and integrators deploying protection blocks in machinery and automation systems.
The HM60400-3CR is designed for three-pole protection in industrial panels and motor control centers. It is compatible with Class H and Class K fuses from the Bussmann HM series, and its CR feature facilitates rapid fuse mounting and replacement. This compatibility supports standardized protection across multiple panels, aiding procurement and inventory management for machine builders.
Choosing the HM60400-3CR delivers space-efficient integration, standardized protection with HM series fuses, and robust electrical ratings (225-400 A, 600 V, 10 kA). These attributes translate to reduced maintenance downtime, easier sourcing, and consistent compliance across projects. The modular design also simplifies upgrades and replacements, ultimately lowering total cost of ownership for automated systems.
