Eaton HPA43775L Pauluhn Summit Linear Fluorescent - IP66
Part Number: HPA43775L
Quick Summary

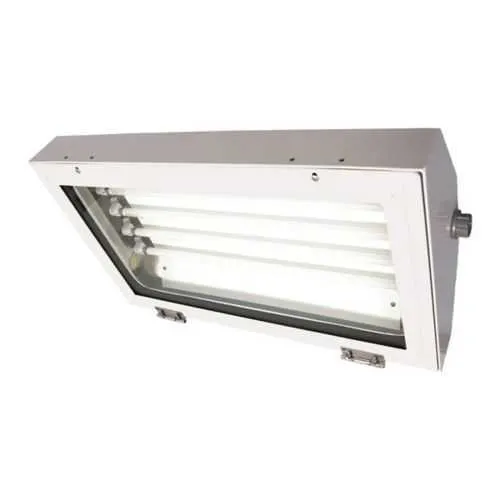

The Eaton HPA43775L Pauluhn Summit linear fluorescent light fixture is engineered for hazardous and classified locations, delivering reliable illumination in demanding industrial environments. End users often battle fixtures that fail under moisture, dust, or chemical exposure; this unit’s IP66 and NEMA 4 ratings help maximize uptime and reduce maintenance costs. It operates at 120–277 VAC with 50/60 Hz and uses a 4 ft, 3-lamp T8HO RDC configuration with lamps included for fast commissioning. With NEC/CEC compliance and hazardous-area classifications (Class I Division 2; Class II Division 1 and 2; Class III), it reduces regulatory risk while simplifying procurement. Rugged aluminum housing, an acrylic lens, and quick-release access support easy servicing and long-term life-cycle value in production lines and outdoor-rated enclosures.
Product Information
Extended Description
HPA43775L Eaton: Eaton Crouse-Hinds series Pauluhn Summit HPA linear fluorescent light fixture,3/4" (4) NPT hubs,50/60 Hz,4 ft lamp,Fluorescent,Acrylic lens,T8HO RDC,Aluminum,Pendant ,3-lamp,Lamps included,Through feed,Quick release,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn Summit HPA linear fluorescent light fixture
Catalog Number
HPA43775L
UPC
662276496309
Product Length/Depth
50.59 in
Product Height
6.59 in
Product Width
15.92 in
Product Weight
35 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Quick release
Material
Aluminum
Lamp length
4 ft
Number of lamps
3-lamp
Light type
T8HO RDC
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Pendant
Style
Through feed
Entry size
3/4"
Entry type
(4) NPT hubs
Wattage
48W
Lens material
Acrylic
Special features
Lamps included
Crouse-Hinds series Pauluhn Summit Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Summit Hazardous Area Linear Fluorescent catalog page
IF LBL1403 - Pauluhn Summit Linear Fluorescent
Eaton Specification Sheet - HPA43775L
Feature → Business Impact → Application. The HPA43775L uses a 3-lamp, 4 ft T8HO RDC configuration delivering 48W of efficient lighting, reducing energy consumption while maintaining high lumen output for critical zones in chemical plants and refineries. This translates to lower operating costs and improved visibility for operators in hazardous environments. Installation benefits include pendant mounting, through-feed wiring, and 3/4" NPT hubs with quick-release access, enabling rapid retrofit and simplified maintenance in constrained spaces such as pump rooms and outdoor enclosures. The aluminum housing with an acrylic lens provides robust ingress protection (IP66) and NEMA 4 protection, ensuring reliable operation during washdown cycles and in dusty or corrosive atmospheres. Compliance with NEC/CEC standards and hazardous-area classifications reduces regulatory risk and accelerates commissioning across multiple site facilities. The fixture’s universal 120–277 VAC supply and 50/60 Hz compatibility supports fleet-wide standardization, lowering spare-part inventories and procurement complexity.
Get a Quick Quote for a Eaton HPA43775L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HPA43775L?
Enquire Now
FAQs
Yes. The HPA43775L is designed for pendant mounting with a pendant mounting configuration and through-feed wiring. It features 3/4" NPT hubs and a quick-release cover for fast servicing, making it compatible with existing Pauluhn Summit installations and new hazardous-location projects alike. The fixture supports rapid commissioning in confined spaces typical of chemical plants, refineries, and similar sites.
Key specifications include 120–277 VAC input, 50/60 Hz operation, and a 48W rating. It is a 4 ft, 3-lamp fixture using T8HO RDC lamps, with lamps included for immediate deployment. The unit is engineered for reliable operation in harsh environments, delivering consistent illumination while minimizing energy usage and maintenance demands.
This fixture excels in hazardous/classified locations such as chemical plants, oil and gas facilities, refineries, and outdoor enclosures. With IP66 and NEMA 4 protection, it withstands washdowns, dust, and moisture, while the 3-lamp 4 ft configuration provides ample illumination for work areas, walkways, and equipment bays requiring robust, durable lighting.
The HPA43775L carries NEC/CEC compliance with hazardous-area ratings including Class I Division 2, Class II Division 1 and 2, and Class III. It also features IP66 ingress protection and a NEMA 4 rating, ensuring suitability for demanding environments while meeting regulatory and safety requirements for industrial facilities.
Lamps are included for quick startup, and quick-release access simplifies servicing and lamp replacement, reducing downtime. The rugged aluminum housing and acrylic lens resist corrosion and impact, lowering replacement frequency. Together with universal 120–277 VAC operation, the fixture supports fleet standardization and predictable maintenance cycles, delivering lower total cost of ownership over time.
