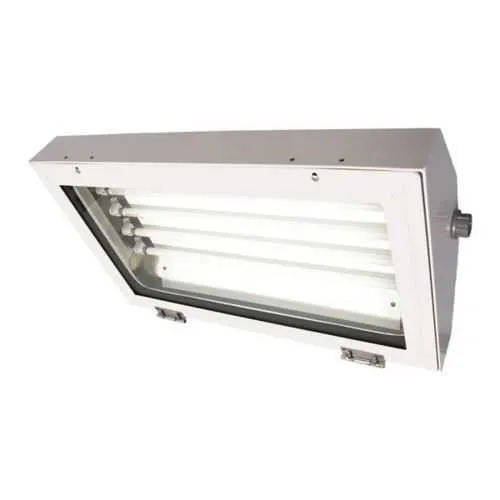

Eaton HPAB24171 Linear Fluorescent Light Fixture - IP66
Part Number: HPAB24171
Quick Summary
HPAB24171 is a linear fluorescent light fixture designed for hazardous-area illumination in industrial facilities. Engineers often struggle to obtain safe, compliant lighting that resists harsh environments and reduces maintenance downtime. It meets IP66 ingress protection, NEMA 4 enclosure, and NEC/CEC hazardous-location classifications (Class I, II, and III) for reliable compliance. Through-feed mounting and a rugged aluminum housing deliver long service life, while an acrylic lens and T5HO mini bi-pin lamps support efficient, low-cost operation. This combination supports safer facilities, easier inspection, and predictable budgeting for industrial plants.
Product Information
Extended Description
HPAB24171 Eaton: Eaton Crouse-Hinds series Pauluhn Summit HPA linear fluorescent light fixture,1/2" (2) NPT hubs,50/60 Hz,2 ft lamp,Fluorescent,Acrylic lens,T5HO mini bi-pin,Aluminum,4-lamp,Through feed,Bolted door,120-277 Vac,17W
Product Name
Eaton Crouse-Hinds series Pauluhn Summit HPA linear fluorescent light fixture
Catalog Number
HPAB24171
UPC
662276402423
Product Length/Depth
26.59 in
Product Height
6.59 in
Product Width
15.92 in
Product Weight
22 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Bolted door
Material
Aluminum
Lamp length
2 ft
Number of lamps
4-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
1/2"
Entry type
(2) NPT hubs
Wattage
17W
Lens material
Acrylic
Crouse-Hinds series Pauluhn Summit Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Summit Hazardous Area Linear Fluorescent catalog page
IF LBL1403 - Pauluhn Summit Linear Fluorescent
Eaton Specification Sheet - HPAB24171
Feature: Through-feed design simplifies conduit routing and reduces installation time. Business impact: Faster commissioning minimizes on-site labor costs and accelerates uptime. Application: Ideal for new builds and retrofits in chemical plants and refineries. Feature: 2 NPT hubs and 1/2" entry enable flexible conduit entry and secure sealing. Business impact: Improved dust and water ingress control lowers maintenance and replacement risk. Application: Suitable for washdown environments and rugged shop floors. Feature: 4-lamp configuration using 2 ft T5HO mini bi-pin fluorescent lamps. Business impact: Balanced light output with compact form factor; energy consumption around 68W total while delivering adequate illumination. Application: Perimeter lighting in hazardous areas and process zones. Feature: Aluminum housing with acrylic lens and bolted door. Business impact: Durable construction reduces impact damage and simplifies access for lamp replacement. Application: Maintenance-friendly service in Class I/II, Division 2 locations. Feature: 120–277 VAC, 50/60 Hz input. Business impact: Wide voltage compatibility enables single-source supply and reduces inventory complexity. Application: Facility-wide retrofit programs and new installations. Feature: IP66, NEMA 4 rating, and NEC/CEC compliance. Business impact: Strong regulatory alignment and protection against dust, water, and corrosive environments. Application: Offshore, chemical, and heavy industrial settings with stringent safety requirements.
Get a Quick Quote for a Eaton HPAB24171
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HPAB24171?
Enquire Now
FAQs
For HPAB24171, plan through-feed wiring with two 1/2 inch entry conduits and utilize the two NPT hubs for secure, sealed connections. The bolted-door enclosure simplifies lamp access, while the 2 ft lamp length and 4-lamp arrangement fit compact footprints without compromising illumination. Ensure compliance with Class I, II, and III locations and maintain proper clearances per NEC/CEC guidelines.
The fixture uses 4 lamps at 17 W each, delivering energy-efficient, high-quality illumination in hazardous areas. The T5HO mini bi-pin lamps paired with an acrylic lens optimize light dispersion, while the aluminum housing provides good thermal performance. These features support lower total operating costs, reduced maintenance cycles, and consistent lighting quality in tough industrial environments.
Yes. The HPAB24171 is certified for Hazardous/Classified Locations and supports NEC/CEC classifications, including Class I, Division 2 and Class II/III as applicable. With IP66 protection and a NEMA 4 enclosure, it is suitable for environments with dust, water exposure, and corrosive conditions, ensuring safe operation and compliance.
This Eaton fixture provides IP66 ingress protection, a NEMA 4 enclosure rating, and NEC/CEC hazardous-location classifications (Class I, Division 2; Class II, Division 1 and 2; Class III). It is built for hazardous-area lighting, with a rugged aluminum housing and acrylic lens to withstand washdown and impact while maintaining performance over time.
The bolted-door design, through-feed configuration, and 2 NPT hubs enable quick access for lamp replacement and wiring. The 4-lamp, 2 ft configuration offers robust illumination with relatively low energy use, reducing operating costs and downtime. These features translate to predictable maintenance schedules, fewer replacements, and better overall return on investment in harsh industrial settings.
