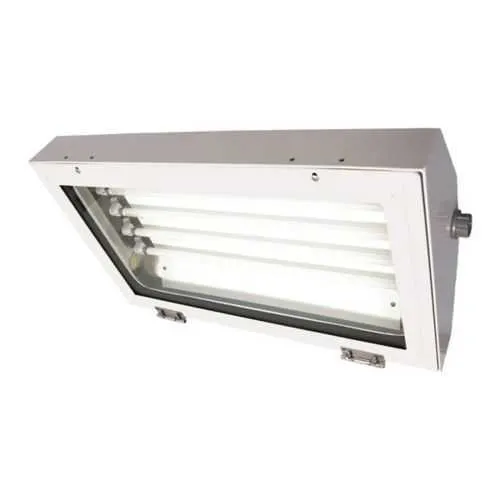

Eaton HPAB42570 Linear Fluorescent Light Fixture - IP66
Part Number: HPAB42570
Quick Summary
HPAB42570 provides hazardous-location illumination with a robust 2-lamp linear fluorescent fixture for industrial facilities. Maintenance teams often struggle with ingress protection and safe servicing in wet or dusty environments; this unit addresses those challenges with a rugged aluminum housing, acrylic lens, and bolted-door access. Key certifications underpin its suitability: IP66 ingress protection for washdown environments, NEC/CEC compliance for North American installations, and NEC hazardous-area ratings covering Class I Division 2 and related classifications. In practice, this enables reliable, code-compliant lighting across chemical plants, oil refineries, and other demanding sites while maintaining compatibility with 120–277 VAC power and 50/60 Hz systems. This combination supports reduced downtime and easier maintenance, delivering clear, safe illumination for critical operations.
Product Information
Extended Description
HPAB42570 Eaton: Eaton Crouse-Hinds series Pauluhn Summit HPA linear fluorescent light fixture,1/2" (2) NPT hubs,50/60 Hz,4 ft lamp,Fluorescent,Acrylic lens,T5HO mini bi-pin,Aluminum,Pendant ,2-lamp,Bolted door,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn Summit HPA linear fluorescent light fixture
Catalog Number
HPAB42570
UPC
662276402461
Product Length/Depth
50.59 in
Product Height
6.59 in
Product Width
15.92 in
Product Weight
34 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Bolted door
Material
Aluminum
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Pendant
Entry size
1/2"
Entry type
(2) NPT hubs
Wattage
54W
Lens material
Acrylic
Crouse-Hinds series Pauluhn Summit Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Summit Hazardous Area Linear Fluorescent catalog page
IF LBL1403 - Pauluhn Summit Linear Fluorescent
Eaton Specification Sheet - HPAB42570
Durable IP66 enclosure and hazardous-location rating protect internal components against dust, water, and washdowns. This reduces uptime loss from ingress and simplifies maintenance in harsh environments. It’s specifically suited to Class I Division 2 locations and similar classifications, enabling compliant operation in chemical plants, oil refineries, and offshore facilities. 4 ft lamp length with two lamps and T5HO mini bi-pin lamps delivers high-quality illumination and consistent color across large workfaces. Business impact includes improved operator visibility and reduced replacement cycles due to longer lamp life. Applications span plant floors, corridors, and equipment bays where reliable lighting is essential to safety and productivity. Pendant mounting and bolted-door access simplify installation and servicing in restricted spaces. The 1/2 inch entry with two NPT hubs supports flexible conduit routing and wiring options, reducing installation time and wiring complexity for new builds or retrofits. Universal voltage 120-277 VAC and 50/60 Hz support minimizes stock diversification and simplifies maintenance across multiple facilities. This compatibility also helps reduce total cost of ownership by allowing a single fixture to serve global operations and varying supply conditions. Aluminum housing and acrylic lens combine durability with easy handling, resisting corrosion and impact in demanding environments. The 54W lamp configuration provides ample brightness while keeping energy use economical, aligning with energy targets and code-required lighting levels in hazardous locations. Compliance and installation resources are readily accessible, with official Eaton installation sheets and specification documents informing safe, code-compliant commissioning and ongoing maintenance.
Get a Quick Quote for a Eaton HPAB42570
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HPAB42570?
Enquire Now
FAQs
HPAB42570 supports pendant mounting with a bolted access door and a 1/2 inch entry, plus two NPT hubs for flexible conduit routing. This combination enables straightforward installation in restricted or cluttered spaces common in chemical plants and refineries, while maintaining a clean wiring scheme and easy service access.
This fixture uses two 4 ft fluorescent lamps with a T5HO mini bi-pin configuration, drawing 54W total. It operates on 120–277 VAC and supports 50/60 Hz, delivering consistent performance across a wide power range and enabling simpler inventory and maintenance planning for mixed-site deployments.
Yes. HPAB42570 is rated for Hazardous/Classified Locations, including Class I Division 2, and complies with NEC/CEC standards. It also features IP66 ingress protection and a NEMA 4 enclosure, ensuring performance in wet, dusty, and washdown-prone industrial settings.
Installation benefits from pendant mounting and a bolted door that simplifies access during maintenance. The two NPT hubs and 1/2 inch entry provide flexible conduit routing, reducing wiring challenges. Documentation such as installation sheets and datasheets further reduce commissioning risk and expedite audits.
Durable aluminum housing and acrylic lens resist corrosion and impact, lowering replacement costs. The reliable 54W, dual-lamp design delivers strong, uniform illumination with energy efficiency. Combined with easy maintenance and broad voltage compatibility, operators see reduced downtime, fewer spare parts, and faster return on investment in hazardous-location lighting projects.
