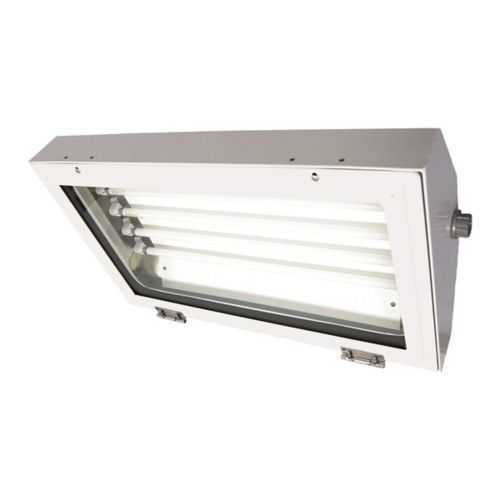

Eaton HPAB46573 Linear Fluorescent Light Fixture - IP66
Part Number: HPAB46573
Quick Summary
HPAB46573 linear fluorescent light fixture provides rugged illumination for hazardous locations in industrial facilities. Maintenance downtime and re-lamping in hazardous environments can drive costs and risk, but this luminaire is built for reliability. It complies with NEC/CEC standards and hazardous location ratings (Class I, Division 2; Class II, Division 1/2; Class III), plus IP66 and NEMA 4 for rugged environments. Designed for pendant mounting with 6 lamps over 4 ft of illumination, it supports 120–277 VAC at 50/60 Hz and minimizes energy costs while maximizing uptime. This 54W fixture aligns with modern efficiency targets, and the acrylic lens provides clear visibility in demanding environments. This makes it a reliable choice for plant-wide retrofits and new builds requiring hazardous-area compliant lighting.
Product Information
Extended Description
HPAB46573 Eaton: Eaton Crouse-Hinds series Pauluhn Summit HPA linear fluorescent light fixture,3/4" (2) NPT hubs,50/60 Hz,4 ft lamp,Fluorescent,Acrylic lens,T5HO mini bi-pin,Aluminum,Pendant ,6-lamp,Bolted door,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn Summit HPA linear fluorescent light fixture
Catalog Number
HPAB46573
UPC
662276402546
Product Length/Depth
50.59 in
Product Height
6.59 in
Product Width
15.92 in
Product Weight
36 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Bolted door
Material
Aluminum
Lamp length
4 ft
Number of lamps
6-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Pendant
Entry size
3/4"
Entry type
(2) NPT hubs
Wattage
54W
Lens material
Acrylic
Crouse-Hinds series Pauluhn Summit Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Summit Hazardous Area Linear Fluorescent catalog page
IF LBL1403 - Pauluhn Summit Linear Fluorescent
Eaton Specification Sheet - HPAB46573
Feature: Hazardous location readiness with IP66 protection and a NEMA 4 enclosure. Business Impact: Reduces risk of dust, water ingress and corrosion, lowering maintenance frequency and downtime. Application: Ideal for chemical plants, offshore facilities, and mining sites where exposed electrical gear must stay protected. Feature: 54W, 4 ft lamp length, 6-lamp configuration using T5HO mini bi-pin lamps. Business Impact: Delivers high lumen output with energy efficiency, helping facilities meet lighting standards while controlling operating costs. Application: Long aisle lighting and process areas requiring consistent, bright illumination with minimal energy draw. Feature: 120-277 VAC, 50/60 Hz operation and pendant mounting. Business Impact: Flexible power compatibility reduces installation complexity and site wiring diversity, speeding up retrofits. Application: New builds and retrofits in industrial environments with varied electrical distribution. Feature: Durable aluminum housing with acrylic lens and bolted door. Business Impact: Enhanced durability and easy access for maintenance, increasing uptime and lowering service costs. Application: Environments with frequent cleaning or washdown and frequent access needs. Feature: Certifications and compliance including NEC/CEC, Hazardous/Classified Locations, IP66, and NEMA 4. Business Impact: Simplifies regulatory alignment and procurement with a single, compliant solution. Application: Plant-wide hazard area lighting programs and safety-focused projects.
Get a Quick Quote for a Eaton HPAB46573
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HPAB46573?
Enquire Now
FAQs
The HPAB46573 is designed for pendant mounting with a 3/4 inch entry and two NPT hubs, offering flexible installation in hazardous or classified areas. Its bolted door and aluminum housing provide robust protection, while the 4 ft length and 6-lamp configuration support straightforward alignment with existing fixtures. Always follow the installation instructions and NEC/CEC guidelines to ensure proper clearance, ingress protection, and electrical connection integrity in Class I, Division 2 environments.
HPAB46573 uses fluorescent lamps (T5HO mini bi-pin) in a 6-lamp, 4 ft configuration with a total wattage of 54W. It operates on 120-277 VAC at a frequency of 50/60 Hz, making it compatible with most industrial power systems. The fixture is designed for long-term, high-efficiency operation, reducing energy consumption while delivering consistent lumen output across hazardous locations.
Yes. The HPAB46573 is rated for Hazardous/Classified Locations and includes NEC/CEC compliance with hazardous location protections. Its Class I Division 2 certification, along with IP66 ingress protection and NEMA 4 enclosure rating, makes it appropriate for environments with potential chemical vapors, dust, and washdown conditions while maintaining safe, reliable illumination.
HPAB46573 carries NEC/CEC standards, Hazardous/Classified Location ratings (Class I Division 2; Class II Division 1/2; Class III), IP66 ingress protection, and a NEMA 4 enclosure. These features ensure compliance with stringent safety regulations, protect against dust and water intrusion, and support dependable operation in demanding industrial settings such as chemical plants and oil/gas facilities.
The 54W, 4 ft, 6-lamp design delivers efficient lighting with fewer replacements compared to older large-fluorescent systems, reducing maintenance frequency and downtime. The robust aluminum housing, acrylic lens, and bolted door ease access for lamp replacement, while the IP66/NEMA 4 protections extend service life in harsh environments. Overall, this translates to lower lifecycle costs and improved uptime in hazardous-area facilities.
