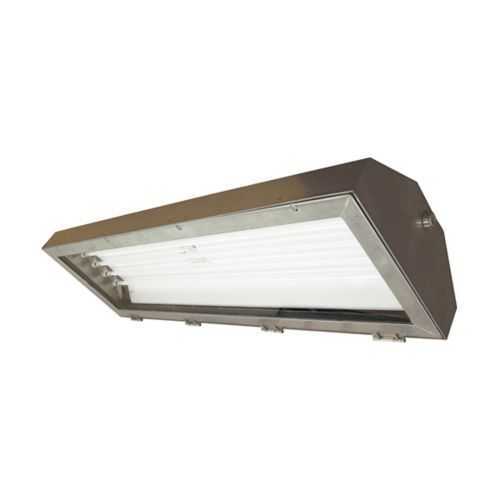

Eaton HPSB42170 Linear Fluorescent Light Fixture - IP66
Part Number: HPSB42170
Quick Summary
Eaton HPSB42170 linear fluorescent light fixture provides rugged hazardous-location illumination for industrial facilities. It helps overcome downtime and compliance headaches by delivering reliable lighting in classified areas. Certified for Hazardous/Classified Locations, with IP66, NEMA 4X protection and NEC/CEC compliance, it withstands harsh environments. Its pendant-mount design, 32W power, and universal 120–277 VAC rating support scalable, energy-efficient installations. The 4 ft, two-lamp configuration aligns with common industrial layouts, reducing fixture count and maintenance cycles. Acrylic lens and 304 stainless steel construction resist corrosion and chemical splash, extending service life in demanding facilities. This luminaire is compatible with Pauluhn Summit catalogs and supports bolted-door access for quick maintenance.
Product Information
Extended Description
HPSB42170 Eaton: Eaton Crouse-Hinds series Pauluhn Summit HPS linear fluorescent light fixture,1/2" (2) NPT hubs,50/60 Hz,4 ft lamp,Fluorescent,Acrylic lens,T8 bi-pin,304 stainless steel,Pendant ,2-lamp,Bolted door,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Summit HPS linear fluorescent light fixture
Catalog Number
HPSB42170
UPC
662276497283
Product Length/Depth
50.59 in
Product Height
6.59 in
Product Width
15.92 in
Product Weight
54 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Bolted door
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Pendant
Entry size
1/2"
Entry type
(2) NPT hubs
Wattage
32W
Lens material
Acrylic
Crouse-Hinds series Pauluhn Summit Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Summit Hazardous Area Linear Fluorescent catalog page
IF LBL1403 - Pauluhn Summit Linear Fluorescent
Eaton Specification Sheet - HPSB42170
The HPSB42170 is built from 304 stainless steel, delivering excellent corrosion resistance in chemical plants and outdoor-rated industrial spaces. The IP66 and NEMA 4X ratings provide dust-tight protection and water ingress resistance, minimizing downtime in wash-down environments. With a 2-lamp 4 ft T8 configuration and 32W power, operators achieve predictable lumen output while keeping energy costs in check; the universal 120–277 VAC input simplifies sourcing and installation across facilities with mixed power systems. The pendant mounting and 1/2" entry with two NPT hubs streamline conduit routing and mounting, reducing field labor and permit complexity. The bolted-door access and acrylic lens enable quick maintenance and easy lens cleaning, cutting total cost of ownership. Compatible with Pauluhn Summit Hazardous Area lighting families, this fixture supports scalable retrofit strategies.
Get a Quick Quote for a Eaton HPSB42170
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HPSB42170?
Enquire Now
FAQs
The fixture uses a 1/2" entry with two NPT hubs and pendant mounting, simplifying conduit routing and splices while maintaining watertight integrity in hazardous locations.
It carries NEC/CEC compliance with Hazardous/Classified Locations ratings, including Class I Division 2, Class II Division 1/2, and Class III, plus NEMA 4X and IP66 protection for robust field performance.
The unit is a 32W, 4 ft, 2-lamp, T8 bi-pin fixture rated for 120–277 VAC and 50/60 Hz, designed for pendant mounting in hazardous environments.
Ideal for chemical plants, refineries, and other Hazardous/Classified Locations where wash-downs, dust, and corrosive atmospheres occur, requiring durable stainless steel construction.
Bolted-door access, acrylic lens, and corrosion-resistant 304 stainless steel simplify cleaning, replacement of lamps, and lens maintenance, reducing downtime and service costs.
