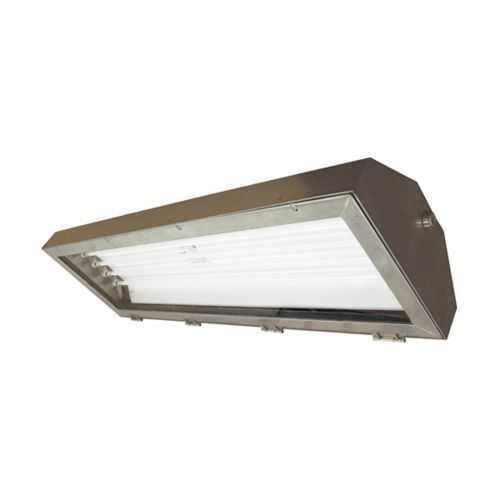

Eaton HPSB42572L Linear Fluorescent Light Fixture - IP66
Part Number: HPSB42572L
Quick Summary
HPSB42572L is a high-efficiency linear fluorescent light fixture designed for hazardous locations in industrial facilities. Maintenance downtime in harsh environments is costly, so this unit combines rugged construction with reliable lamp performance to minimize service interruptions. It carries NEC/CEC compliance with Class I, Division 2, Class II, Division 1 and 2, and Class III ratings, along with IP66 ingress protection and a NEMA 4X enclosure for maximum safety. By pairing through-feed wiring and a 120–277 VAC, 50/60 Hz power range with a 4 ft, two-lamp configuration, it supports multi-site deployments while delivering consistent illumination across demanding applications.
Product Information
Extended Description
HPSB42572L Eaton: Eaton Crouse-Hinds series Pauluhn Summit HPS linear fluorescent light fixture,1/2" (4) NPT hubs,4 ft,Acrylic lens,T5HO mini bi-pin,304 stainless steel,Pendant ,2-lamp,Lamps included,Through feed,Bolted door,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn Summit HPS linear fluorescent light fixture
Catalog Number
HPSB42572L
UPC
662276374379
Product Length/Depth
50.59 in
Product Height
6.59 in
Product Width
15.92 in
Product Weight
54 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Type
Bolted door
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Pendant
Style
Through feed
Entry size
1/2"
Entry type
(4) NPT hubs
Wattage
54W
Lens material
Acrylic
Special features
Lamps included
Crouse-Hinds series Pauluhn Summit Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Summit Hazardous Area Linear Fluorescent catalog page
IF LBL1403 - Pauluhn Summit Linear Fluorescent
Eaton Specification Sheet - HPSB42572L
Material and enclosure durability drive long-term value in harsh environments. The 304 stainless steel housing resists corrosion in washdown areas, offshore facilities, and chemical plants, reducing maintenance frequency and total cost of ownership. This translates to fewer replacements and downtime, improving line productivity in critical operations. Hazardous-location certifications provide immediate compliance confidence. With NEC/CEC classifications, Class I, Division 2, Class II, Division 1 and 2, and Class III ratings, combined with IP66 and NEMA 4X enclosures, users can deploy this fixture where ignition risks and harsh conditions are present, avoiding costly retrofits and ensuring worker safety. Electrical versatility supports site-to-site deployment. The 120–277 VAC, 50/60 Hz supply and 4 ft, 2-lamp T5HO mini bi-pin configuration deliver consistent lumen output while simplifying stock needs and maintenance planning across plants, refineries, and processing facilities. Installation efficiency and ease of maintenance are enhanced by design choices. A pendant mounting option, bolted door, through-feed capability, and 1/2" entry hubs (4 NPT) streamline wiring, reduce install time, and enable fast lamp replacement with lamps included in the package. Lifecycle performance and operational reliability matter in demanding industries. The acrylic lens provides clear, impact-resistant illumination, while 54 W per fixture delivers adequate light with lower energy consumption, helping facilities meet sustainability targets without compromising visibility.
Get a Quick Quote for a Eaton HPSB42572L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HPSB42572L?
Enquire Now
FAQs
Installation starts with selecting pendant mounting and confirming 120–277 VAC supply. The unit features (4) NPT hubs for through-feed wiring and a 1/2" entry size to simplify conduit connections. With a bolted door for quick access and lamps included, maintenance and lamp replacement can be completed rapidly, minimizing downtime in hazardous areas.
The HPSB42572L runs on 120–277 VAC at 50/60 Hz and uses a 54 W per fixture, two-lamp configuration with T5HO mini bi-pin lamps. The acrylic lens provides clear illumination while the 4 ft length supports ample light distribution in industrial spaces, reducing shadowed areas without increasing power draw.
Yes. The fixture carries NEC/CEC certifications with Class I, Division 2, Class II, Division 1, and Class II, Division 2, plus Class III ratings, and an IP66/NEMA 4X enclosure. This combination enables safe operation in hazardous, classified, and washdown environments such as chemical plants, refineries, and offshore facilities.
Lamps are included for immediate operation, and the bolted-door design simplifies access during routine maintenance. The 304 stainless steel housing resists corrosion, extending life in harsh environments. This reduces maintenance frequency and replacement costs, delivering a lower total cost of ownership over the fixture’s life.
Ideal for hazardous or classified locations requiring robust ingress protection and durable construction, such as chemical processing plants, water treatment facilities, offshore platforms, and other industrial environments. The 4 ft, 2-lamp configuration provides efficient coverage, while through-feed wiring supports scalable installations across multiple zones.
