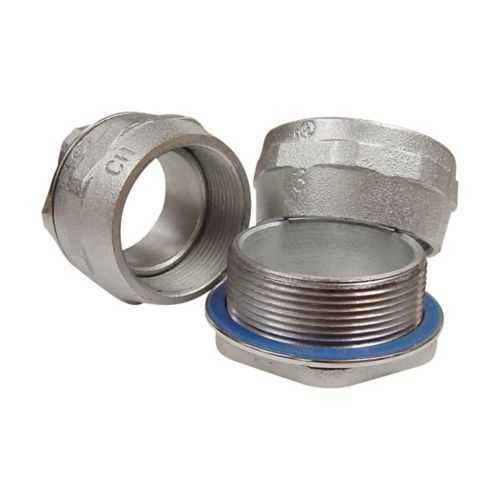

Eaton HUB3 Conduit Hub - 1 in Malleable Iron Space-Saver
Part Number: HUB3
Quick Summary
Eaton HUB3 conduit hub is a durable, space-saving conduit termination for industrial electrical installations. Installers often struggle with bulky fittings in tight enclosures, and this hub design helps fit more wiring without sacrificing integrity. It aligns with NEC/CEC standards and is suitable for ordinary/non-hazardous locations, with Canadian certification references supporting regulatory compliance. This combination delivers robust, space-efficient terminations for control panels, making procurement and installation faster and more predictable. For teams seeking reliable, code-compliant, space-saving conduit hubs, HUB3 offers a proven solution that fits tightly packed automation environments.
Product Information
Extended Description
HUB3 Eaton: Eaton Crouse-Hinds series HUB conduit hub, Malleable iron, 1", Space-Saver
Product Name
Eaton Crouse-Hinds series HUB conduit hub
Catalog Number
HUB3
UPC
782274490373
Product Length/Depth
1.78 in
Product Height
1.57 in
Product Width
1.78 in
Product Weight
0.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Trade size
1"
Material
Malleable iron
Special features
Space-Saver
Eaton Crouse-Hinds HUB3 3D drawing
Crouse-Hinds series Conduit Hubs catalog page
Commercial Hubs Canadian certification
Commercial Hubs Canadian certification
Eaton Specification Sheet - HUB3
Space-Saver form factor reduces enclosure footprint, accelerating installation and enabling denser wiring in control panels and automation racks. Business impact: faster project timelines and reduced cabinet size, lowering overall system cost. Applications: ideal for 1 inch conduit terminations in compact panels and process automation enclosures. Malleable iron construction provides rugged durability, delivering long-term performance in vibrating industrial environments and harsh factory floors. Business impact: fewer field replacements and lower maintenance costs, improving total cost of ownership. Applications: heavy-duty manufacturing lines, packaging and material handling systems. Standard 1 inch trade size ensures compatibility with widely used conduits, simplifying procurement and installation while reducing stock variety. Business impact: streamlined sourcing and faster on-site assembly. Applications: new builds and retrofits in industrial plants. NEC/CEC compliance and ordinary/non-hazardous location suitability minimize compliance risk during audits. Business impact: smoother approvals and safer operation in standard facilities. Applications: warehouses, automotive assembly, and process plants. Space-Saver plus compatibility with Crouse-Hinds catalogs and 3D CAD drawings supports faster engineering and installation. Applications: panel design, early-stage BOMs, and field wiring.
Get a Quick Quote for a Eaton HUB3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HUB3?
Enquire Now
FAQs
HUB3 is designed for ordinary/non-hazardous locations and complies with NEC/CEC standards. It is well-suited for 1 inch conduit terminations in control panels, electrical cabinets, and other industrial enclosures. Its space-saving design helps maximize enclosure density without compromising code compliance or mechanical integrity.
Key specs for HUB3 include a 1 inch trade size, solid malleable iron construction for durability, and a weight of approximately 0.5 lb. The overall footprint is compact, with dimensions around 1.78 in by 1.78 in by 1.57 in, making it suitable for tight panel assemblies.
Yes, HUB3 is designed for standard North American conduit installations and aligns with NEC/CEC requirements for ordinary locations. Its 1 inch trade size matches common conduit runs, and its Space-Saver form factor helps fit in compact panels typical of automation controllers and electrical cabinets.
HUB3 references NEC/CEC standards for electrical fittings and is suitable for ordinary locations. Canadian certification references are available via UL-based listings for commercial hubs, supporting regulatory compliance in Canadian markets. This combination helps streamline approvals and audits across North American facilities.
The rugged malleable iron construction offers long service life and reduced replacement cycles in vibrating industrial settings. The Space-Saver design accelerates installation and reduces enclosure space, which can lower labor costs and enable more compact control architectures, improving overall return on investment for panel builds and retrofits.
