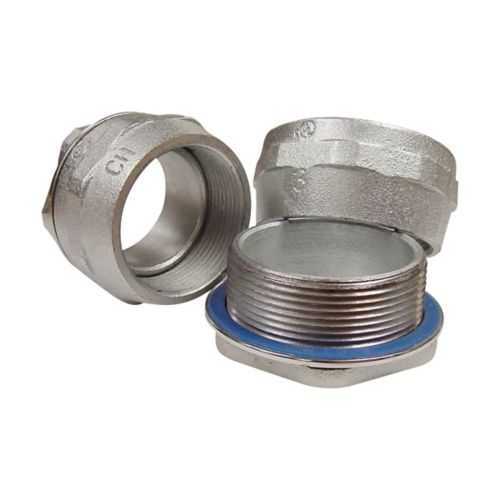

Eaton HUB5 Conduit Hub - Malleable Iron Space-Saver
Part Number: HUB5
Quick Summary
Eaton HUB5 Conduit Hub is a durable space-saving conduit hub designed for fast, secure terminations in electrical enclosures. Engineers often struggle with crowded panels and time-consuming installs, and HUB5 helps reduce mounting steps and alignment friction. These hubs are NEC/CEC compliant and UL-listed for Commercial Hubs in the US and Canada, with an area rating of Ordinary/Non-Hazardous Locations. For buyers, the combination of a compact footprint and proven Eaton reliability translates to lower install costs, simpler procurement, and consistent performance in control panels and junction boxes. The 1-1/2 inch trade size and malleable iron construction support rugged industrial environments while maintaining a streamlined, repeatable installation process.
Product Information
Extended Description
HUB5 Eaton: Eaton Crouse-Hinds series HUB conduit hub, Malleable iron, 1-1/2", Space-Saver
Product Name
Eaton Crouse-Hinds series HUB conduit hub
Catalog Number
HUB5
UPC
782274490397
Product Length/Depth
2.37 in
Product Height
2 in
Product Width
2.37 in
Product Weight
0.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Trade size
1-1/2"
Material
Malleable iron
Special features
Space-Saver
Eaton Crouse-Hinds HUB5 3D drawing
Crouse-Hinds series Conduit Hubs catalog page
Commercial Hubs UL certification
Commercial Hubs UL certification
Eaton Specification Sheet - HUB5
Feature: Space-Saver design and compact footprint. Business Impact: Reduces panel depth requirements and inline clearance, enabling faster terminations and easier routing in crowded enclosures. Application: Ideal for 1-1/2 inch conduit terminations in control panels and compact electrical assemblies. Feature: Malleable iron construction. Business Impact: Delivers durable, impact-resistant fittings that withstand daily industrial use, reducing replacement and maintenance costs. Application: Suitable for harsh manufacturing environments where mechanical robustness matters. Feature: Exact 1-1/2 inch trade size. Business Impact: Guarantees compatibility with standard conduit runs, lowering rejection risk during procurement. Application: Used across electrical closets, utility rooms, and machine control cabinets. Feature: Space-Saver with lightweight profile. Business Impact: Cuts installation time and labor costs while preserving tight fit in limited spaces. Application: Common in modern modernizations and panel upgrades where space is at a premium. Feature: NEC/CEC compliance and UL listings. Business Impact: Provides regulatory confidence and traceable certification for projects in the US and Canada. Application: Aligns with commissioning standards for commercial hubs and non-hazardous locations. Insight: Documentation and catalog support from Eaton—3D CAD drawings, catalogs, and datasheets—facilitate accurate engineering estimates and procurement.
Get a Quick Quote for a Eaton HUB5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HUB5?
Enquire Now
FAQs
HUB5 is ideal for control panels and electrical enclosures in ordinary, non-hazardous locations. It supports 1-1/2 inch conduit terminations with a compact footprint, helping prevent panel crowding and easing procurement through a standard product in the Crouse-Hinds HUB family.
The Space-Saver design reduces the required panel clearance and enables tighter routing. Coupled with a lightweight 0.2 lb body and a 2.37 in footprint, it accelerates alignment and tightening steps, delivering measurable labor savings on typical panel upgrades.
Yes. HUB5 complies with NEC/CEC standards and is UL certified for commercial hubs in the US and Canada, making it a compliant choice for non-hazardous location installations and simplifying regulatory documentation for projects.
Eaton provides 3D CAD drawings, a catalog page, and a datasheet for the HUB5, plus UL certification references. These resources help with accurate Bill of Materials, dimensional checks, and compliance verification during design reviews.
Confirm trade size of 1-1/2 inches, material malleable iron, weight around 0.2 lb, and dimensions of approximately 2.37 inches in length and width with a 2 inch height. These specs ensure proper fit, durability, and compatibility with existing conduit runs.
