Eaton HUB6 Conduit Hub - Space-Saver 2" Iron - NEC
Part Number: HUB6
Quick Summary
The Eaton HUB6 conduit hub is a rugged junction for 2-inch conduit runs used in industrial electrical systems. In dense panels and constrained spaces, bulky fittings slow assembly and consume panel real estate. It complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. As part of the Crouse-Hinds HUB family, the Space-Saver design and 2" trade size provide compact, durable connections. This combination supports faster project delivery and lower total cost of ownership for industrial wiring, enclosure integration, and panel assemblies.
Product Information
Extended Description

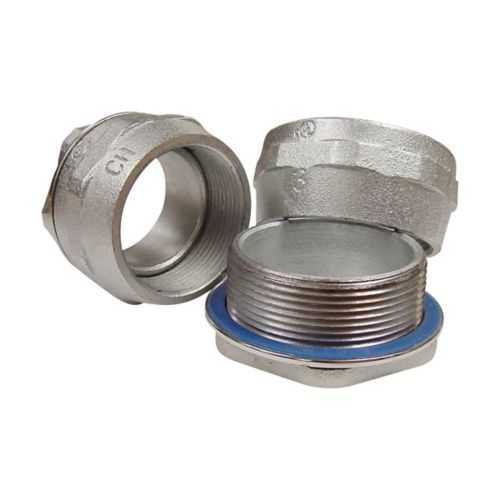

HUB6 Eaton: Eaton Crouse-Hinds series HUB conduit hub, Malleable iron, 2", Space-Saver
Product Name
Eaton Crouse-Hinds series HUB conduit hub
Catalog Number
HUB6
UPC
782274490403
Product Length/Depth
2.93 in
Product Height
2.19 in
Product Width
2.93 in
Product Weight
0.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Trade size
2"
Material
Malleable iron
Special features
Space-Saver
Eaton Crouse-Hinds HUB6 3D drawing
Crouse-Hinds series Conduit Hubs catalog page
Commercial Hubs UL certification
Commercial Hubs UL certification
Eaton Specification Sheet - HUB6
Feature: 2" trade size and malleable iron construction deliver robust, code-ready joints. Business Impact: Enhanced durability and reliability reduce rework and downtime while meeting harsh industrial conditions. Application: Control panels, switchgear enclosures, and process equipment housings in manufacturing environments benefit from secure, long-lasting connections. Feature: Space-Saver design minimizes footprint and wiring congestion. Business Impact: More efficient use of enclosure space lowers panel height and interior clutter, speeding wiring and inspection. Application: Compact control cabinets and tight-installation scenarios in automation facilities. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Business Impact: Simplifies regulatory approvals and lowers risk of non-compliance during audits. Application: Non-hazardous plant zones and general purpose conduit fittings in industrial plants. Feature: Lightweight geometry with precise dimensions (2.93 in length/width, 2.19 in height, 0.1 lb). Business Impact: Easier handling, faster field installation, and reduced shipping costs. Application: Field service and modular assemblies where weight and space matter. Feature: Availability of design assets and certifications (3D CAD, catalogs, UL certifications). Business Impact: Accelerates design validation, procurement, and compliance checks, reducing RFQ cycles. Application: Engineering workflows, electrical design teams, and procurement departments.
Get a Quick Quote for a Eaton HUB6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton HUB6?
Enquire Now
FAQs
HUB6 is designed for straightforward installation in standard 2" conduit runs. Begin by aligning the hub with the conduit entries, secure to the enclosure using appropriate threaded connections, and confirm a tight seal where required. The space-saving form factor helps maximize internal panel space, reducing wire bend radii and speeding the wiring process for enclosure interiors in manufacturing lines.
Yes. HUB6 is manufactured to NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. This makes it suitable for typical industrial environments where non-hazardous ratings apply, simplifying compliance during design reviews and reducing the likelihood of rework due to regulatory findings.
The HUB6 measures 2.93 inches in length and width, 2.19 inches in height, and weighs 0.1 pounds. These compact dimensions support tighter packing in panels and cabinets, enabling engineers to optimize conduit routing without sacrificing structural integrity or ease of maintenance.
Absolutely. The Space-Saver design reduces enclosure footprint while maintaining a robust 2" conduit connection. This is especially valuable in compact control panels or densely populated automation cabinets, where every inch of space matters for cable organization, heat management, and accessibility during maintenance.
You can access a 3D CAD drawing package, the Crouse-Hinds HUB hubs catalog page, and UL certification documents through Eaton’s materials. These assets support design validation, procurement, and compliance checks, helping you accelerate RFQs and ensure correct part selection for US and Canada applications.
