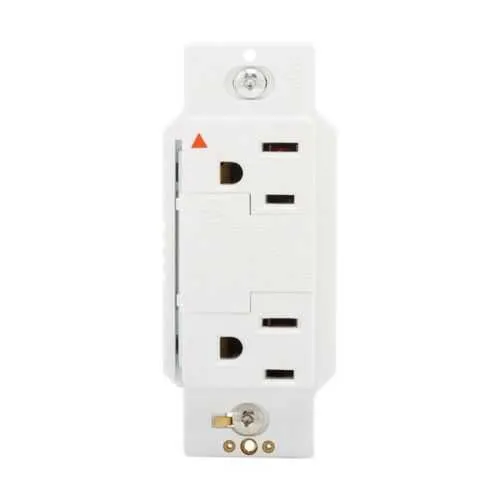

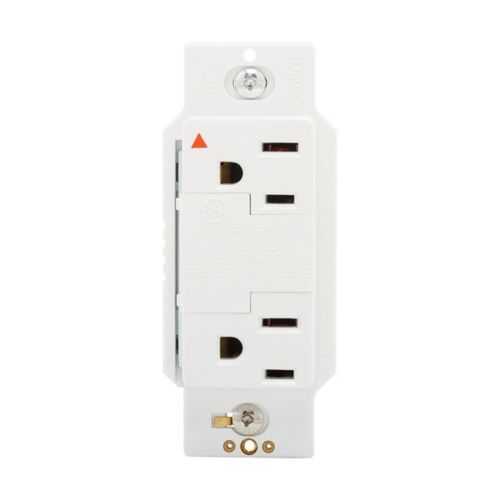

Eaton IG1208W SurgeBloc Receptacle - cULus Listed
Part Number: IG1208W
Quick Summary
IG1208W SurgeBloc receptacle delivers trusted surge protection for commercial outlets and sensitive equipment. Outages and transient surges can disrupt operations and damage electronics; this device minimizes downtime with isolated grounding. With a cULus Listed certification and commercial-grade construction, it meets safety and performance standards for office, light industrial, and data environments. Designed for easy wall- flush installation and reliable service, it supports standard 6 inch #12 AWG leads and a 5-15R duplex configuration, delivering protection with straightforward integration and minimal installation complexity.
Product Information
Extended Description
IG1208W Eaton: Eaton SurgeBloc protection receptacle, Isol grnd, Stand 6" #12 AWG leads, 15A, Comm specif, Wall/flush mnt, Wire leads, 340J, 2 recept, 0° to 40°C, Wht, Brs, Strght blade, Polycarb, 5-15R, Dplx
Product Name
Eaton SurgeBloc protection receptacle
Catalog Number
IG1208W
UPC
032664534935
Product Length/Depth
1.96 in
Product Height
4.1 in
Product Width
1.79 in
Product Weight
0.295 lb
Certifications
cULus Listed
Device type
Straight blade
Special features
Isolated ground
Type
SurgeBloc protection receptacle
Amperage Rating
15A
Voltage rating
125 V
Contact material
Brass
Joules
340J
Allowable wire size
Standard 6 in #12 AWG leads
NEMA configuration
5-15R
Application
Commercial
Device grade
Commercial
Wiring method
Wire leads
Material
Thermoplastic
Number of receptacles
2
Operating temperature
0 to 40 °C
Number of wires
3
Mounting method
Wall Flush
Number Of Poles
Two-pole
Style type
Duplex
Color
White
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Feature: Surge protection rated at 340 joules with 15A, 125V supply. Business impact: Transient suppression reduces equipment damage and downtime, improving uptime metrics. Application: Suitable for commercial outlets and point-of-use protection in offices and light-industrial spaces. Feature: Isolated ground design. Business impact: Reduces electrical noise and interference for sensitive devices, improving signal integrity in labs and data rooms. Application: Ideal for servers, AV setups, and measurement equipment. Feature: 2 receptacles in a duplex, NEMA 5-15R configuration. Business impact: Doubles outlet availability without extra wiring, lowering installation costs. Application: Wall-mounted workstations and breakout zones. Feature: Wire leads and wall flush mounting. Business impact: Faster, cleaner installs with safer wiring and easier retrofits. Application: Retrofit projects and new-build offices. Feature: Durable thermoplastic body with polycarbonate face. Business impact: Enhanced impact resistance and long-term reliability in fluctuating environments. Application: Shared workspaces and operating rooms where reliability matters.
Get a Quick Quote for a Eaton IG1208W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton IG1208W?
Enquire Now
FAQs
The IG1208W is designed for wall flush mounting with standard 6 inch #12 AWG leads. It wires with three conductors (hot, neutral, ground) to yield a two-receptacle duplex, 5-15R configuration. It supports straightforward retrofits in standard electrical boxes and aligns with common commercial installation practices, reducing field wiring time and ensuring reliable termination with solid strain relief.
Key specs include a 15A amperage rating, 125V voltage rating, and 340 joules of surge energy protection. The device features a straight blade two-pole, three-wire grounding receptacle configuration (5-15R) with isolated ground to minimize electrical noise. The wiring method is wire leads, enabling simple, secure connections in commercial environments.
Yes. The IG1208W includes an isolated ground feature that reduces noise and improves signal integrity for sensitive equipment, making it a solid choice for offices, labs, light industrial spaces, and data-related rooms where surge protection and clean grounding are priorities.
The IG1208W carries the cULus Listed safety certification, indicating compliance with recognized safety standards for commercial electrical equipment. This certification, combined with its commercial device design and rated performance, supports regulatory alignment for professional installations in office and light industrial settings.
With 340 joules of protection and durable thermoplastic/polycarbonate construction, the IG1208W offers long-term reliability in commercial spaces. Routine inspection of mounting integrity, wire lead insulation, and receptacle cleanliness is advised; surge protection performance does not require regular replacement unless protection capacity is exhausted or signs of wear appear, contributing to lower replacement and downtime costs.
