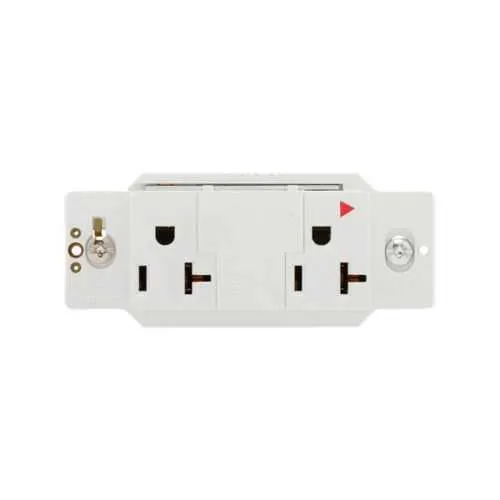

Eaton IG1210W SurgeBloc receptacle - cULus Listed
Part Number: IG1210W
Quick Summary
SurgeBloc receptacle protects critical equipment by diverting surge energy in commercial power applications. In many facilities, voltage spikes damage sensitive equipment and trigger costly downtime. Eaton IG1210W carries a cULus Listed safety certification and a 340J joule rating for effective surge protection. With 6 inch #12 AWG leads and wall flush mounting, installation is straightforward and compliant for commercial environments. Its isolated-ground design helps maintain clean signal paths in data and control cabinets, reducing noise and potential ground loops. Industries like offices, healthcare, and data centers benefit from reliable power delivery without extra wiring changes. This model’s compact, thermoplastic body resists impact and makes retrofits smoother while meeting general-purpose commercial standards.
Product Information
Extended Description
IG1210W Eaton: Eaton SurgeBloc protection receptacle, Isol grnd, Stand 6" #12 AWG leads, 20A, Comm specif, Wall/flush mnt, Wire leads, 340J, 2 recept, 0° to 40°C, Wht, Brs, Strght blade, Polycarb, 5-20R, Dplx
Product Name
Eaton SurgeBloc protection receptacle
Catalog Number
IG1210W
UPC
032664534973
Product Length/Depth
2.01 in
Product Height
4.07 in
Product Width
1.73 in
Product Weight
0.295 lb
Certifications
cULus Listed
Device type
Straight blade
Special features
Isolated ground
Type
SurgeBloc protection receptacle
Amperage Rating
20A
Voltage rating
125 V
Contact material
Brass
Joules
340J
Allowable wire size
Standard 6 in #12 AWG leads
NEMA configuration
5-20R
Application
Commercial
Device grade
Commercial
Wiring method
Wire leads
Material
Thermoplastic
Number of receptacles
2
Operating temperature
0 to 40 °C
Number of wires
3
Mounting method
Wall Flush
Number Of Poles
Two-pole
Style type
Duplex
Color
White
Face/body material
Polycarbonate
Receptacle type
Two-pole, three-wire, grounding
Feature: 340J surge energy rating. Business Impact: minimizes damage from power transients, reducing unplanned downtime and warranty costs. Application: protection for sensitive office electronics, HVAC controllers, and point-of-sale systems in commercial spaces. Feature: Isolated-ground design. Business Impact: preserves signal integrity by minimizing noise and ground loops, improving performance of data and control equipment. Application: data centers, labs, and network closets where clean grounding matters. Feature: 6 inch #12 AWG leads. Business Impact: simplifies wiring, speeds installation, and lowers field termination risk for compliant, repeatable installations. Application: retrofit projects and new installs in existing wall boxes. Feature: NEMA 5-20R, 20A at 125V, straight blade. Business Impact: broad plug compatibility with common commercial cords, reducing adapters and mis-matches. Application: wall outlets in offices, retail, and light-industrial spaces. Feature: Wall/Flush mounting with thermoplastic polycarbonate body. Business Impact: compact footprint, durable enclosure, and easy integration into finished walls. Application: indoor commercial environments requiring neat, dependable outlets.
Get a Quick Quote for a Eaton IG1210W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton IG1210W?
Enquire Now
FAQs
IG1210W is designed for wall flush mounting with standard commercial outlets and uses fixed 6 inch #12 AWG leads for straightforward wiring. It accepts NEMA 5-20R plugs and supports common commercial configurations, reducing retrofit complexity and speeding up commissioning in offices, clinics, or retail spaces.
The IG1210W is rated for 20A at 125V with a 340J surge energy rating. This combination delivers solid protection against voltage transients while staying compatible with typical office equipment and power supplies, helping minimize equipment failures and unplanned downtime.
Yes. The isolated-ground (IG) feature helps minimize electrical noise and ground loops, preserving signal integrity for sensitive data and control circuits. In data rooms or labs, a two-receptacle, straight-blade configuration with robust surge protection supports reliable operation of controllers, sensors, and network gear.
IG1210W carries cULus Listed safety certification, signaling compliance with UL standards for commercial electrical devices. This certification helps ensure electrical safety and performance in professional installations, supporting code compliance and reducing risk when specifying outlets for commercial buildings.
With a 340J surge rating and isolated-ground design, IG1210W reduces the likelihood of surge-related damage and noisy grounds, leading to lower maintenance costs and fewer downtime events. Its durable thermoplastic/polycarbonate construction also supports long service life in busy commercial environments with minimal ongoing upkeep.
