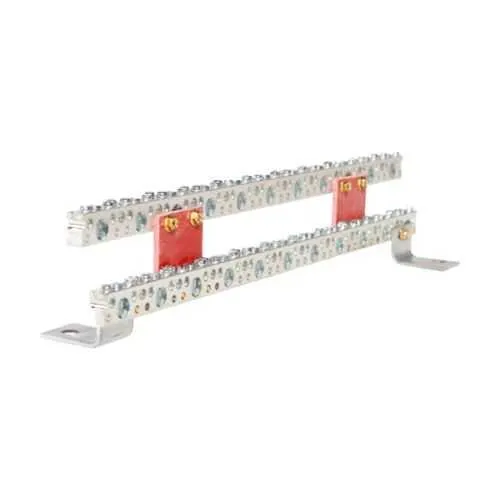

Eaton ISOGROUND Pow-R-Xpress ISO ground - UL 67
Part Number: ISOGROUND
Quick Summary
Pow-R-Xpress ISO ground by Eaton is an insulated/isolated ground assembly designed for panelboards and industrial electrical systems. Engineers often struggle with ground loops, electrical noise, and nuisance tripping when grounding is inadequately implemented in control panels. ISOGROUND delivers a dedicated, low-impedance ground path that improves signal integrity for sensitive instrumentation and reduces interference in speed-controlled drives. This solution carries UL 67 safety certification and aligns with essential electrical safety standards, providing reliable operation in harsh industrial environments. By combining a compact footprint with easy compatibility with PRL accessories, Eaton offers a scalable grounding option that accelerates assembly, simplifies maintenance, and lowers total cost of ownership for panelboard and control-panel installations.
Product Information
Extended Description
ISOGROUND Eaton: Eaton Pow-R-Xpress insulated/isolated ground assembly
Product Name
Eaton Pow-R-Xpress ISO ground
Catalog Number
ISOGROUND
UPC
782116064007
Product Length/Depth
2.8 in
Product Height
0.9 in
Product Width
1.2 in
Product Weight
1 lb
Certifications
UL 67
Number of circuits
42
Type
Insulated/Isolated ground assembly
Amperage Rating
600A
Special features
PRL1X/2X - PRL1A/2A
Used with
PRL1A, PRL2A, PRL3A
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Eaton's Pow-R-Xpress stocking program
Pow-R-Line Xpert family overview
Eaton Specification Sheet - ISOGROUND
Feature: 600A amperage rating provides a robust grounding path capable of handling high-load panelboards. Business impact: reduces the risk of overheating and ground faults, improving system reliability in electrical rooms and control panels. Application: ideal for factory automation and power distribution where high current integrity is essential. Feature: 42 circuits supported by the insulated/isolated ground assembly enables comprehensive panelboard grounding across multiple circuits. Business impact: simplifies layout planning and reduces wiring complexity, cutting installation time. Application: data centers, manufacturing lines, and large enclosures with dense I/O. Feature: UL 67 certification reinforces compliance with electrical safety requirements. Business impact: minimizes regulatory risk and accelerates project approvals. Application: any industrial enclosure requiring certified grounding. Feature: compact 2.8 in length, 0.9 in height, 1.2 in width saves cabinet space and enables retrofits. Business impact: enables easier installation in tight panel spaces and reduces enclosure footprint. Application: retrofit projects and new builds with limited clearance. Feature: compatibility with PRL accessory family PRL1X/2X and PRL1A/2A/3A streamlines expansion. Business impact: scalable grounding that supports phased upgrades and reduced lojistics. Application: panelboards using Eaton Pow-R-Xpress components in automation setups. Feature: designed for 42 circuits and 600A in a single assembly supports large control systems. Business impact: consolidates grounding in one reliable unit, lowering part counts. Application: multi-circuit industrial panels and switchgear assemblies.
Get a Quick Quote for a Eaton ISOGROUND
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ISOGROUND?
Enquire Now
FAQs
ISOGROUND is designed to integrate with Eaton's Pow-R-Xpress PRL accessory family, including PRL1A, PRL2A, PRL3A, and the PRL1X/2X variants. This compatibility enables seamless expansion in panelboards and control panels, reducing wiring complexity and installation time while preserving certified grounding integrity across the system.
Begin by confirming the panelboard accepts insulated/isolated ground assemblies and that UL 67 compliance is in place. Mount ISOGROUND, connect the isolated ground conductor to the designated terminal, and link with the compatible PRL accessories as needed. Verify continuity and insulation resistance, then document the grounding path for future maintenance and audits.
ISOGROUND is rated for 600A and supports 42 circuits. This makes it suitable for high-current panelboards and multi-circuit control panels where a dedicated insulated grounding path is required to maintain signal integrity and safety in demanding industrial environments.
Yes, ISOGROUND carries UL 67 certification, indicating compliance with established electrical safety standards for insulating and isolating ground assemblies. It is well-suited for industrial panelboards, automation control panels, and environments where ground noise and interference must be minimized to protect sensitive electronics.
ISOGROUND reduces maintenance and downtime by providing a dedicated, low-impedance grounding path that minimizes ground-loop issues and electrical noise. Its compatibility with PRL accessories simplifies upgrades and expansions, lowers installation labor, and improves overall system reliability, delivering measurable total cost of ownership improvements over time.
