Eaton IZMX-AS22-16-1 PXR Auxiliary Switch - UL Listed
Part Number: IZMX-AS22-16-1
Quick Summary
Eaton Series NRX auxiliary switch is a compact signaling device that complements NRX universal-frame contactors for control circuits in industrial panels. Engineers often struggle with mounting and wiring within tight control enclosures, which can drive up installation time and increase error rates. UL Listed certification supports safety and regulatory compliance, while the NRX family’s universal frame and PXR type enable consistent signaling across multiple devices. This article highlights how the IZMX-AS22-16-1 delivers reliable operation with a Short Leads Kit, simplifying field wiring and reducing downtime. By standardizing on NRX auxiliary switches, technicians gain faster commissioning and better spare-parts alignment, especially in high-mix, low-volume manufacturing environments.
Product Information
Extended Description

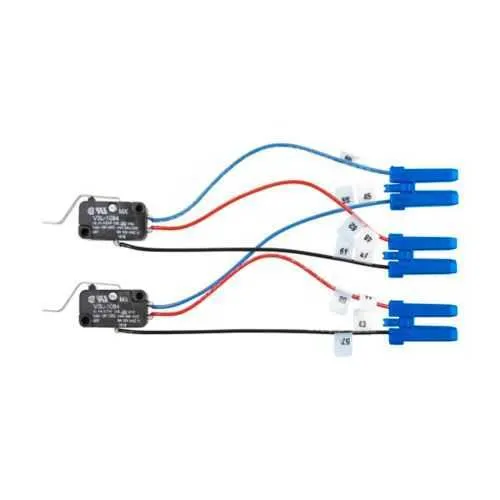

IZMX-AS22-16-1 Eaton: Eaton Power Defense ICCB auxiliary switch, Universal frame, PXR, Short Leads
Product Name
Eaton Series NRX auxiliary switch
Catalog Number
IZMX-AS22-16-1
UPC
786685998503
Product Length/Depth
8 in
Product Height
2 in
Product Width
2 in
Product Weight
1.5 lb
Certifications
UL Listed
Type
PXR Auxiliary Switch
Special features
Short Leads Kit
Trip Type
T253
Frame
Universal
Accessories
Auxiliary switch
Series
Series NRX
Feature: Universal frame compatibility with the NRX series. Business Impact: Reduces spare parts inventory and simplifies panel layouts, accelerating installation. Application: Ideal for machines and control panels using Eaton NRX contactors. Feature: PXR auxiliary switch type. Business Impact: Ensures reliable signaling for start/stop logic and interlocking in control circuits. Application: Common in motor control centers and automated lines. Feature: Short Leads Kit. Business Impact: Cuts wiring time and minimizes field terminations, lowering commissioning risk. Application: Quick integration in compact control panels with limited space. Feature: UL Listed certification. Business Impact: Verifies compliance with safety standards, easing regulatory review and audits. Application: Required in many North American industrial installations. Feature: Compact dimensions and weight. Business Impact: Enables fitment in tight enclosures and reduces panel height by consolidating signaling hardware. Application: Suitable for retrofit and new-build NRX-based control schemes. Feature: Catalog number clarity and NRX alignment. Business Impact: Streamlines procurement and sourcing, reducing order errors. Application: Facilitates consistent stocking across maintenance teams.
Get a Quick Quote for a Eaton IZMX-AS22-16-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton IZMX-AS22-16-1?
Enquire Now
FAQs
Install the IZMX-AS22-16-1 directly onto the NRX universal-frame compatibility surface, ensuring proper alignment with the contactor terminals. Use the Short Leads Kit to minimize lead length, then secure with standard mounting hardware and verify signaling continuity in the control circuit.
Key specs include Catalog Number IZMX-AS22-16-1, Type PXR Auxiliary Switch, Frame Universal, Trip Type T253, Short Leads Kit, and UL Listed certification. Dimensions are 8 in length, 2 in width, 2 in height, with a weight of 1.5 lb.
Yes. The PXR auxiliary switch on a universal-frame NRX setup provides reliable signaling for restart/interlock logic in motor control centers and automated lines, enabling standardized signaling across multiple devices in an NRX-based control scheme.
The IZMX-AS22-16-1 is UL Listed, indicating compliance with established safety standards for industrial control products. This certification supports safer installation, regulatory compliance, and smoother audits in North American facilities.
Benefits include faster commissioning due to Short Leads Kit, reduced wiring errors from standardized NRX signaling, easier spare-parts management with a single model in the NRX family, and improved reliability in demanding environments thanks to a proven UL-listed signaling component.
