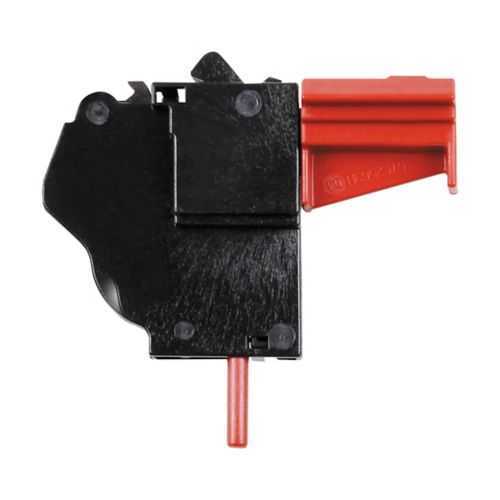

Eaton IZMX-RR230AD-40-1 NRX Trip Indicator - UL Listed
Part Number: IZMX-RR230AD-40-1
Quick Summary
Eaton NRX trip indicator provides remote reset capability for motor protection in industrial control panels. Operators often face unnecessary downtime when reset signals require manual intervention or hard-to-reach locations. UL Listed safety certification ensures compliance, with 208-250 Vac/dc rating and RF frame compatibility simplifying field installs. This kit supports reliable remote reset and clear trip indication in industrial protection schemes, enabling faster maintenance and improved equipment uptime. Designed for the RF frame architecture, IZMX-RR230AD-40-1 integrates with PXR remote reset functionality and offers easy wiring and integration with existing protection schemes. And with Eaton's NRX family, procurement and spare parts logistics are simplified, reducing training time for maintenance staff.
Product Information
Extended Description
IZMX-RR230AD-40-1 Eaton: Eaton Power Defense ICCB trip indicator, 208-250 Vac/dc, RF Frame, PXR, Remote Reset
Product Name
Eaton Series NRX trip indicator
Catalog Number
IZMX-RR230AD-40-1
UPC
786685997964
Product Length/Depth
8.75 in
Product Height
2 in
Product Width
4 in
Product Weight
1.75 lb
Certifications
UL Listed
Type
RF 208-250 Vac/Vdc Trip Ind Kit w/ Remote Reset – PXR
Voltage rating
208-250 Vac/dc
Trip Type
T253
Frame
RF
Accessories
Trip indicator
Contact configuration
Remote reset
Series
Series NRX
Feature → Remote reset and clear trip indication. Business Impact → Reduces downtime by providing quick, clean fault acknowledgment and reset without现场 service trips. Application → Ideal for industrial control panels needing fast fault recovery and clear status visibility in protection circuits. Feature → Wide voltage compatibility. Business Impact → Supports both 208-250 Vac/dc controls, enabling flexible power sourcing across machinery lines. Application → Suitable for multi-volt protection schemes in manufacturing environments. Feature → RF frame compatibility with compact footprint. Business Impact → Simplifies installation in existing NRX RF frame layouts, reducing panel depth and wiring complexity. Application → Useful for retrofits and new builds with limited space. Feature → UL Listed certification. Business Impact → Ensures safety compliance and smoother procurement with standard safety approvals. Application → Essential for regulated industries and maintenance audits. Feature → Clear labeling and remote reset configuration. Business Impact → Improves fault diagnosis speed and reduces maintenance labor costs. Application → Supports efficient uptime management in power protection systems.
Get a Quick Quote for a Eaton IZMX-RR230AD-40-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton IZMX-RR230AD-40-1?
Enquire Now
FAQs
To install, power down the panel, mount the indicator in the RF frame, and connect the remote reset wiring per the NRX system guidelines. Verify voltage rating of 208-250 Vac/dc and ensure proper wiring to the trip circuit. Use the remote reset feature to restore normal operation after a fault, minimizing field service time.
Yes. IZMX-RR230AD-40-1 is designed as a NRX trip indicator kit for the Series NRX protection family, featuring RF frame compatibility and a remote reset option to integrate seamlessly with existing NRX installations.
The unit operates at 208-250 Vac/dc with a Trip Type of T253 and a RF frame configuration. It includes a remote reset capability and a trip indicator accessory to provide clear trip status in industrial protection schemes.
The IZMX-RR230AD-40-1 carries UL Listed certification. This certification confirms safety compliance for use in industrial control environments, streamlining procurement, vendor audits, and maintenance approvals for safety-critical applications.
Benefits include reduced downtime from faster fault resets, improved visibility of trip conditions, and simpler maintenance workflows thanks to remote reset and clear trip indication. These factors collectively lower service labor costs and increase equipment uptime in manufacturing and power distribution panels.
