Eaton JBXPC0G03FSNDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G03FSNDSMR
Quick Summary
The Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector enables quick, rugged cable interconnections for industrial automation panels. Professionals often struggle with time-consuming mating, moisture ingress, and field repairs when using weaker connectors. UL 1977 compliance and IP40/IP68 ratings ensure safety and environmental resilience, while a straight backshell and sealing gland with optional boot enhance sealing and maintenance. With a compact 38 mm length, 10 mm width, and 12.14 g weight, the plug-and-receptacle assembly fits tight panel interiors and supports faster wiring in control cabinets. For manufacturers seeking scalable wiring solutions, this connector combines compatibility, protection, and ease of installation to improve overall equipment efficiency.
Product Information
Extended Description

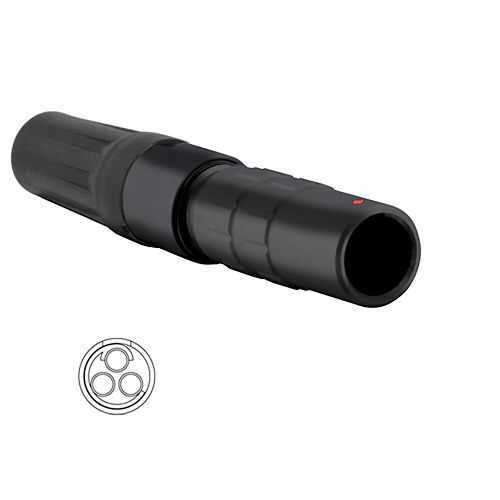

JBXPC0G03FSNDSMR Eaton: In line cable receptacle, IP40, size 0, 3 female contacts, cable clamp protective boot; JBXPC0G03FSNDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G03FSNDSMR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.14 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature: The metallic JBXPC0G03FSNDSMR provides IP40 and IP68 protection, guarding against dust and immersion in demanding environments. Business impact: This reduces ingress-related failures and extends service life, cutting unplanned downtime in outdoor enclosures and wet production areas. Application: Ideal for control panels, outdoor machinery, and conveyor systems in harsh settings. Feature: Push-pull coupling enables quick, repeatable mating with robust retention, reducing maintenance time and operator effort. Business impact: Faster field assembly and fewer reseats improve line uptime and project throughput. Application: Robotics, packaging lines, and material handling where rapid disconnections are valued. Feature: Backshell with sealing gland and optional boot delivers reliable sealing with flexible installation options. Business impact: Minimized moisture ingress and simplified cable routing lower service costs over the equipment life. Application: Enclosures subject to washdown and variable temperatures. Feature: Inline cable receptacle design with 3 female contacts in size 0 minimizes panel footprint while preserving electrical performance. Business impact: Denser wiring ferries fewer connectors per cabinet, freeing space for critical components. Application: Control cabinets and machinery interiors. Feature: UL 1977 compliant with IP ratings provides regulatory confidence and safer operation in automated systems. Business impact: Supports compliance programs and reduces risk of non-conformance during audits. Application: Industrial automation, conveyor networks, and process control.
Get a Quick Quote for a Eaton JBXPC0G03FSNDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G03FSNDSMR?
Enquire Now
FAQs
The connector’s 38 mm length and 10 mm width with a 10 mm height fit tight panel interiors, and the inline receptacle design supports compact wiring. Use the straight backshell with the sealing gland and optional boot to maintain ingress protection. Ensure UL 1977 compliance in panel assemblies and observe proper cable routing to minimize strain.
Yes. With three female contacts in size 0 and a sealing gland, it pairs with common cable clamps and routing schemes in control cabinets. The metallic IP40/IP68 housing supports typical industrial wiring practices, while the optional boot enhances sealing around cable entry points, improving moisture resistance and ease of maintenance.
Ideal for control panels, outdoor machinery, robotics, conveyors, and other harsh-environment environments. Its IP40/IP68 protection and quick-connect push-pull mechanism support rapid field service, reliable mating in vibration-prone setups, and dense panel layouts where space is at a premium.
This connector is UL 1977 compliant and carries IP40/IP68 protection ratings. UL 1977 ensures safety in wiring devices used in electrical equipment, while the dual IP ratings provide protection against dust and immersion, improving reliability in harsh industrial settings and supporting regulatory compliance during audits.
Expect reduced downtime from quicker mating and unmating thanks to push-pull action, improved ingress protection with sealing gland and boot, and simplified wiring in tight cabinets. The rugged metallic build and UL 1977 compliance also lower long-term maintenance costs and support ongoing compliance in automated production lines.
