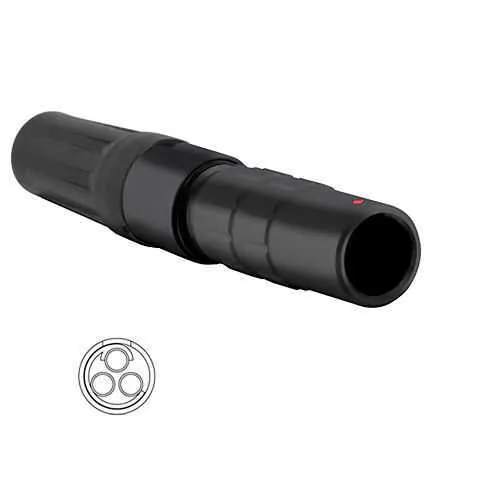

Eaton JBXPC0G03FSSDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G03FSSDSMR
Quick Summary
Introducing the Eaton Souriau JBX push-pull connector for rugged, IP-rated connectivity on industrial machinery and control panels. Too often moisture, dust, and vibration cause outages or mis-mating in harsh plants. UL 1977 compliance with IP40/IP68 ratings ensures safe, sealed operation across demanding environments. This compact 38 mm long metallic push-pull connector supports sealed backshell options and a protective boot, streamlining cabinet installation and field wiring. Engineers value the consistent mating performance and reduced assembly time achieved with the 3-female contact configuration. Trust in UL 1977 compliance and the JBX series reputation for rugged industrial connectivity. Designed for easy field wiring with straight backshell and optional boot.
Product Information
Extended Description
JBXPC0G03FSSDSMR Eaton: In line cable receptacle, IP40, size 0, 3 female contacts, cable clamp protective boot; JBXPC0G03FSSDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G03FSSDSMR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.14 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature: IP40/IP68 metallic backshell with a sealing gland and optional boot. Business Impact: Delivers dependable ingress protection across indoor and outdoor facilities, cutting unplanned maintenance and downtime in harsh environments. Application: Ideal for in-line cable receptacles on control panels, robotics, and machine frames in automation plants. Feature: Compact form factor—38 mm length, 10 mm width, 10 mm height, and 12.14 g weight, with 3 female contacts. Business Impact: Enables tighter panel layouts and easier cable routing, reducing enclosure space and weight. Application: Suitable for panel-mount environments in automation and packaging lines. Feature: Backshell type Sealing Gland With Optional Boot. Business Impact: Additional sealing and improved cable grip, enabling faster field retrofits and long-term reliability. Application: Field wiring and installations requiring extra moisture sealing and boot options. Feature: Compliance UL 1977. Business Impact: Verified safety for interconnects in industrial and commercial equipment. Application: Machinery, conveyors, and robotic systems with UL recognized components. Feature: Straight backshell orientation with compatibility to cable clamp protective boot. Business Impact: Simplifies assembly, ensures strain relief, and reduces risk of cable damage. Application: Cabinets and enclosures in harsh industrial settings.
Get a Quick Quote for a Eaton JBXPC0G03FSSDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G03FSSDSMR?
Enquire Now
FAQs
When installing the JBXPC0G03FSSDSMR, ensure straight backshell orientation for straightforward alignment and use the cable clamp protective boot to provide strain relief. The 38 mm length and 10x10 mm cross-section fit in compact control panels, while three female contacts simplify harnessing. Verify UL 1977 compliance for safety in your machine, and plan for IP40/IP68 ingress protection in your environment.
IP40 provides basic protection against solid intrusion in typical indoor environments, while IP68 indicates higher protection against dust ingress and immersion under defined conditions. The JBX series achieves these protections through the sealing gland, backshell design, and optional boot, enabling reliable operation in damp, dusty, or wet areas and reducing maintenance needs.
Ideal for industrial automation, packaging lines, robotics, CNC machinery, and control panels. The compact 38 mm form factor and 3-female-contact configuration suit tight panel spaces, while IP40/IP68 ratings and UL 1977 compliance support reliable interconnects in harsh environments, conveyors, and outdoor installations where robust sealing and quick mating are valued.
The connector complies with UL 1977, ensuring recognized safety for interconnections in industrial equipment. It is specified to provide IP40/IP68 ingress protection with the appropriate backshell and boot configurations, making it suitable for rigorous manufacturing and automation applications that require approved, durable connectivity solutions.
Expect reduced downtime due to reliable sealing and mating performance, thanks to IP ratings and UL 1977 compliance. The lightweight, compact design simplifies installation and harness routing, while the optional boot and sealing gland streamline field retrofits. Over the device lifecycle, this translates to lower maintenance costs and improved system uptime on automation and control applications.
