Eaton JBXPC0G03MCSDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G03MCSDSR
Quick Summary
The Eaton Souriau JBX series IP40/IP68 metallic push-pull connector is a rugged, field-ready solution for harsh industrial environments. In many machines, sealing reliability and quick, vibration-resistant connections are critical, yet ordinary connectors fail under moisture or shock. With IP40 and IP68 ratings and UL 1977 compliance, this connector delivers certified performance across demanding installations. As a reliable wiring & connectivity option, it reduces maintenance costs and downtime while supporting scalable automation in compact, space-constrained assemblies.
Product Information
Extended Description

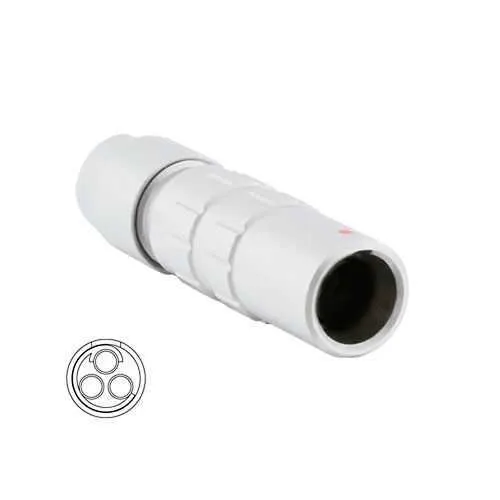

JBXPC0G03MCSDSR Eaton: In line cable receptacle, IP40, size 0, 3 male contacts, cable clamp backshell; JBXPC0G03MCSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G03MCSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.69 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature: IP rated protection (IP40/IP68) → Business Impact: Protects the electrical interface from dust, humidity, and wash-down cycles, reducing corrosion risk and unscheduled downtime; Application: Outdoor equipment, food and beverage lines, and wash-down environments. Feature: In line cable receptacle with cable clamp backshell → Business Impact: Simplifies cable routing and strain relief, accelerating field assembly and improving environmental sealing; Application: Machinery control panels and robotic cells. Feature: Size 0, 3 male contacts → Business Impact: Optimizes density in compact control housings while delivering essential signal or small-power paths; Application: PLC I/O, servo drives, and sensor networks. Feature: Straight backshell with sealing gland → Business Impact: Enables straightforward mating and reliable sealing in rigid or constrained layouts; Application: Panel-mounted or chassis-integrated connectors. Feature: Lightweight design (11.69 g) and compact dimensions (38 mm length, 10 x 10 mm footprint) → Business Impact: Reduces weight and space requirements in portable or mobile equipment; Application: Mobile automation devices and remote instrumentation. Feature: UL 1977 compliant → Business Impact: Ensures recognized safety and interoperability with electrical components in automation systems; Application: Industrial automation, process control, and machine builders. This combination supports faster installation, predictable performance under vibration, and lower total cost of ownership across the lifecycle of your wiring & connectivity network.
Get a Quick Quote for a Eaton JBXPC0G03MCSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G03MCSDSR?
Enquire Now
FAQs
The JBXPC0G03MCSDSR is part of the JBX family and uses the same mating interface and backshell concept, enabling mixed configurations with other JBX IP-rated connectors. Match the size, contact count, and backshell style to ensure seamless assembly and reliable sealing across components.
Key specs include IP40/IP68 protection, size 0, 3 male contacts, 38 mm length, 10 mm width, 10 mm height, and a weight of 11.69 g. It features a straight backshell and a sealing gland with a cable clamp backshell for secure field installations, and UL 1977 compliance for safety.
Yes. The combination of IP40/IP68 ratings, sealing gland backshell, and cable clamp backshell provides reliable sealing against dust, moisture, and wash-down conditions, making it well-suited for factory floors, outdoor installations, and demanding process environments.
The connector complies with UL 1977, offering recognized safety and performance for industrial automation. It also provides IP ratings IP40 and IP68, confirming its sealed operation across a range of environmental conditions.
Installation is streamlined thanks to the in line receptacle with backshell and straightforward mating. The sealed, vibration-resistant design reduces field maintenance, downtime, and spare-part variety, delivering lower lifecycle costs and improved system uptime for automated equipment.
