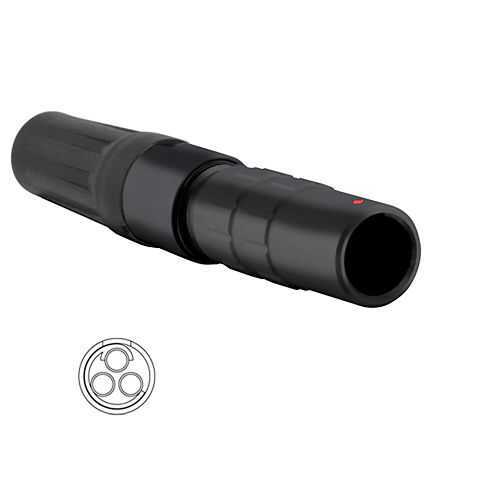

Eaton JBXPC0G03MSNDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G03MSNDSMR
Quick Summary
The Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector delivers reliable, fast-mating cable connections for harsh industrial environments, including automated machinery and control panels. Engineers frequently confront moisture ingress, vibration, and space constraints that complicate field installation and maintenance. This part meets UL 1977 safety standards while offering IP40/IP68 protection, a straight backshell, and a sealing gland with an optional boot to fit tight installations. By combining rugged sealing with quick mating, it reduces commissioning time, minimizes downtime, and supports scalable wiring and connectivity across automation and control networks.
Product Information
Extended Description
JBXPC0G03MSNDSMR Eaton: In line cable receptacle, IP40, size 0, 3 male contacts, cable clamp protective boot; JBXPC0G03MSNDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G03MSNDSMR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.81 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature: IP40/IP68 metallic construction with 3 male contacts and a straight backshell. Business Impact: Delivers robust ingress protection and a compact footprint that minimize enclosure footprint and maintenance, improving equipment uptime. Application: Ideal for in-line cable receptacles on automation equipment and control panels where reliability and space efficiency matter. Feature: Sealing gland with optional boot enhances moisture and dust sealing. Business Impact: Reduces field fault rates in damp or dusty environments and simplifies installation with optional boot configurations. Application: Outdoor or damp industrial settings, machine bays, and conveyor systems requiring dependable seals. Feature: UL 1977 compliance and standardized Souriau JBX series compatibility. Business Impact: Supports regulatory compliance and easy integration with existing modular connectors, lowering procurement risk. Application: Industrial automation, robotics, and process control. Feature: 38 mm length, 10 mm width, 10 mm height, and 11.81 g weight offer a small, lightweight form factor. Business Impact: Simplifies panel design and reduces structural load while preserving ease of handling. Application: Control cabinets with tight space constraints and modular wiring layouts. Feature: 3 male contacts and IP40/IP68 protection provide reliable, fast-mating connections. Business Impact: Cuts installation time and enhances system reliability in harsh environments. Application: Wiring & connectivity tasks in factory automation, material handling, and packaging lines.
Get a Quick Quote for a Eaton JBXPC0G03MSNDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G03MSNDSMR?
Enquire Now
FAQs
What mounting and sealing steps are recommended for this JBX series connector? Ensure the straight backshell is aligned for proper mating, install the sealing gland with or without the optional boot based on ambient exposure, and use the cable clamp boot to protect the entry. Verify UL 1977 compliance and test ingress protection after assembly to confirm enclosure integrity.
This connector complies with UL 1977 and offers IP20-level to IP40/IP68 protection depending on mating conditions. It belongs to the Souriau JBX series of metallic push-pull connectors, delivering rugged performance suitable for industrial automation, control panels, and equipment enclosures while supporting safe, regulatory-compliant wiring.
Yes. The JBXPC0G03MSNDSMR is part of the Souriau JBX family, designed for compatibility with other JBX series backshells and accessories. When selecting mating connectors, verify the size 0 configuration and 3 male contact arrangement to ensure proper fit and maintained IP protection during mating and unmating cycles.
It provides fast mating with a robust seal, reducing commissioning time and maintenance cycles. The IP40/IP68 rating protects against dust and moisture, while UL 1977 compliance ensures safety for automated systems. Its compact 38 mm length and lightweight design simplify panel layout and wiring harness integration in factory automation.
The combination of durable ingress protection, quick-mating capability, and regulatory compliance lowers downtime, reduces field service visits, and supports longer equipment life. While initial cost may be higher than basic connectors, the total cost of ownership is reduced through fewer faults, faster maintenance, and easier component upgrades in high-demand automation environments.
