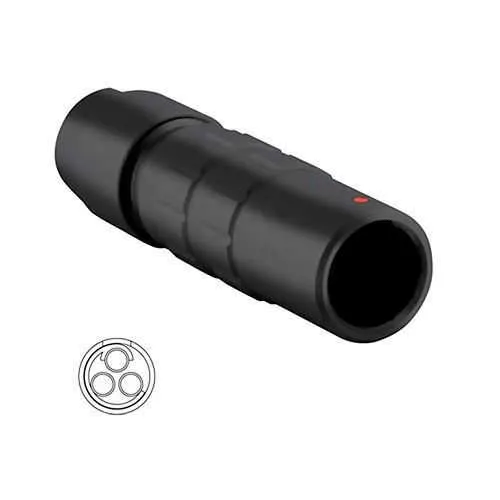

Eaton JBXPC0G03MSNDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G03MSNDSR
Quick Summary
Eaton JBXPC0G03MSNDSR push-pull connectors deliver robust, sealed cable connections for harsh industrial environments. Engineers often wrestle with moisture ingress and downtime in field installations, risking performance and schedule delays. UL 1977 compliance, IP40/IP68 ratings, and a sealing gland-backed backshell provide a reliable foundation for rugged automation. This solution also reduces maintenance frequency and supports compact layouts, offering cost-effective, scalable connectivity for modern automation and wiring projects.
Product Information
Extended Description
JBXPC0G03MSNDSR Eaton: In line cable receptacle, IP40, size 0, 3 male contacts, cable clamp backshell; JBXPC0G03MSNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G03MSNDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.81 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
The IP40/IP68 metallic push-pull design delivers reliable sealing that reduces moisture ingress and dust intrusion, improving uptime in demanding environments, which translates to lower maintenance costs and fewer unplanned outages. The 38 mm length and 10x10 mm footprint enable compact installations in space-constrained machinery, robotics, or packaging lines, while keeping performance consistent across vibration-rich applications. A straight backshell with a sealing gland and cable clamp backshell simplifies installation, ensuring strain relief and predictable performance even in dynamic systems. UL 1977 compliance provides regulatory assurance for industrial machinery, helping with audit readiness and safety certifications. At 11.81 g, the connector minimizes weight-induced wear in high-cycle applications, supporting longer lifecycle operation in automated systems. Compatibility with the Souriau JBX family offers scalable inventory and future-proofing for evolving plant networks.
Get a Quick Quote for a Eaton JBXPC0G03MSNDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G03MSNDSR?
Enquire Now
FAQs
This in-line receptacle uses a straight backshell and sealing gland; install with the cable clamp to secure strain relief. The 38 mm length and 10x10 mm body fit tight spaces, while maintaining IP40/IP68 performance when mating hardware is properly seated. Follow UL 1977 guidelines for correct termination and gasket seating to preserve sealing integrity.
Yes. The connector is designed for the Souriau JBX series ecosystem, supporting straight backshell configurations and sealing gland options. Use compatible backshells and gaskets to ensure consistent IP ratings and mating performance across the same family, simplifying spares and maintenance in mixed-joint installations.
Ideal for robotics, packaging lines, and general machinery that face moisture, dust, or vibration. The IP40/IP68 rating, three-male-contact arrangement, and compact form factor support reliable field connections in constrained panels, while the cable clamp backshell ensures stable strain relief in high-cycle environments.
The connector carries UL 1977 compliance and IP ratings of IP40 and IP68 as applicable to the mating configuration. It features a straight backshell and sealing gland design to maintain environmental protection, with three male contacts and a compact 38 mm length for space-constrained installations.
The sealed, rugged design reduces downtime from moisture ingress and contamination, while the lightweight, compact form minimizes installation effort and panel load. Long-term, this translates to lower maintenance costs, fewer field replacements, and predictable lifecycle performance in high-demand automation environments.
