Eaton JBXPC0G03MSSDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G03MSSDSMR
Quick Summary
The Eaton Souriau JBX series IP40/IP68 metallic push-pull connector provides rugged, fast-mate connectivity for industrial automation wiring. Engineers frequently contend with space constraints, harsh environments, and the need for reliable, tool-free mating in control panels and field equipment. It delivers IP protection from dust and moisture (IP40/IP68) and UL 1977 compliance, supporting safe and dependable operation in demanding applications. This solution also aligns with Wiring & Connectivity strategies, enabling standardized harnessing and streamlined procurement to reduce downtime and total cost of ownership. For teams prioritizing rugged performance with compact form factors, it offers a clear pathway to faster assembly and longer equipment life.
Product Information
Extended Description

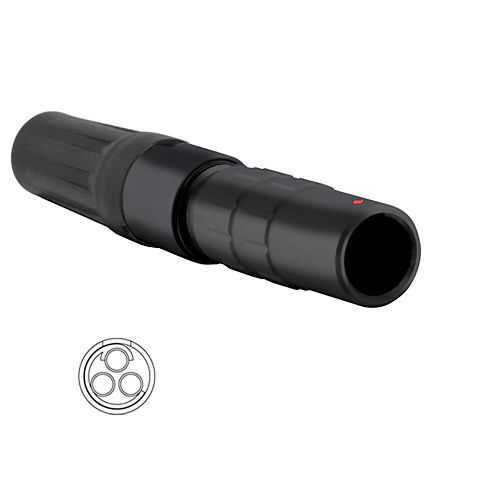

JBXPC0G03MSSDSMR Eaton: In line cable receptacle, IP40, size 0, 3 male contacts, cable clamp protective boot; JBXPC0G03MSSDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G03MSSDSMR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.81 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
The JBXPC0G03MSSDSMR features IP40/IP68 protection and a corrosion-resistant metallic body, delivering rugged performance across indoor and outdoor installations; this reduces maintenance windows and protects critical control circuits from dust, water ingress, and repeated connect/disconnect cycles that are common in automated lines. With three male contacts in size 0, the in-line receptacle provides a compact, high-integrity harness option that balances signal integrity with power handling in tight control panels, while its 38 mm length and 10 mm width create a predictable footprint to optimize routing and reduce wiring costs in multi-connector assemblies. The backshell incorporates a sealing gland with an optional boot for enhanced sealing and cable strain relief under vibration or flex, simplifying field servicing without compromising enclosure integrity. A straight backshell supports straightforward mating in crowded enclosures, speeding installation and reducing misalignment during production handovers. UL 1977 compliance provides regulatory assurance for reliability and safety in automation systems, supporting faster procurement and qualified supplier processes across industries. At 11.81 g, this unit contributes minimal mass to complex harnesses, helping to manage overall enclosure weight and space while maintaining rugged performance across demanding environments.
Get a Quick Quote for a Eaton JBXPC0G03MSSDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G03MSSDSMR?
Enquire Now
FAQs
When integrating the JBXPC0G03MSSDSMR, ensure mating with the in-line receptacle using the straight backshell orientation for alignment in tight panel spaces. Use the Sealing Gland with optional Boot to maintain IP protection during field servicing, and confirm UL 1977 compliance for the assembler and end-user documentation. Plan for the 38 mm length and 10 mm width to optimize routing and avoid interference with nearby components.
This connector features three male contacts in size 0, with a compact 38 mm length and 10 mm width, and weighs 11.81 g. It provides IP40/IP68 protection and UL 1977 compliance, suitable for rugged industrial environments. The backshell is straight, and the assembly includes a sealing gland with an optional boot to improve sealing and cable strain relief during operation.
Yes. The JBXPC0G03MSSDSMR is designed for harsh environments, offering IP40/IP68 protection and a metallic housing that resists corrosion. The sealing gland with optional boot enhances water and dust sealing, while the straight backshell simplifies mating in constrained outdoor control cabinets and equipment subject to vibration and moisture exposure.
The connector carries UL 1977 compliance, aligning with recognized safety and performance standards for plug-and-play interfaces in industrial equipment. Its IP40/IP68 ratings provide environmental protection against dust and moisture. While CE labeling is not indicated in the data provided, the UL 1977 certification and IP ratings are the primary compliance references for procurement and integration.
The combination of a rugged metallic push-pull design, sealing gland with an optional boot, and UL 1977 compliance reduces maintenance cycles and field repairs by delivering reliable, water- and dust-resistant connections. The compact footprint and lightweight construction simplify installation and harness management, lowering labor time and total cost of ownership across multi-port assemblies in automation projects.
