Eaton JBXPC0G04FCNDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G04FCNDSR
Quick Summary
Eaton JBXPC0G04FCNDSR is a rugged push-pull connector for IP40/IP68 sealed connections in industrial equipment. Engineers often struggle with reliable sealing and fast mating under harsh environments, leading to increased downtime. Key certifications include UL 1977 compliance, IP ratings that support dust and water ingress protection, and a metal backshell with a sealing gland for rugged field use. This compact, inline solution simplifies panel routing, reduces installation time, and enhances maintenance intervals, while aligning with Souriau’s JBX series for scalable automation deployments.
Product Information
Extended Description

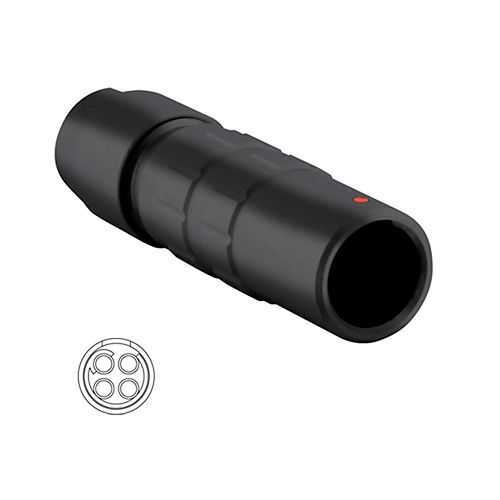

JBXPC0G04FCNDSR Eaton: In line cable receptacle, IP40, size 0, 4 female contacts, cable clamp backshell; JBXPC0G04FCNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G04FCNDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.08 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
The IP40/IP68 rated metallic push-pull design provides robust ingress protection and reliable mating under vibration, delivering tangible uptime improvements in conveyors, robotics, and packaging lines. This translates to lower maintenance costs and reduced unplanned downtime, especially in confined spaces where space-saving form factors matter. The inline cable receptacle with four female contacts enables compact wiring schemes, while the backshell with a sealing gland improves moisture resistance and cable integrity, resulting in fewer field reworks and faster diagnostics. At 38 mm in length with a 10 × 10 mm footprint and a weight of 12.08 g, the connector offers a lightweight yet durable solution suitable for tight control cabinets and machinery housings. UL 1977 compliance adds confidence for commercial and industrial appliance applications, supporting safer, regulated deployments. Compatibility with the JBX family ensures streamlined spares and consistent installation practices across automation projects. The straight backshell simplifies cable routing and reduces assembly complexity, making it an attractive option for high-merv automation environments. In practice, field technicians value the immediate mating reliability and reduced risk of ingress when performing quick panel installations or rework in moving lines.
Get a Quick Quote for a Eaton JBXPC0G04FCNDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G04FCNDSR?
Enquire Now
FAQs
JBXPC0G04FCNDSR is an inline cable receptacle with a straight backshell and sealing gland. It mates with the corresponding JBX plug in the Souriau JBX series, enabling straightforward mating in tight control cabinets. The 38 mm length and compact 10 × 10 mm footprint simplify panel routing, while the cable clamp backshell helps secure the cable entry during installation.
Yes. The connector is designed for IP40 as standard and supports high ingress protection in rugged environments when mated with the appropriate plug, with sealing gland backshell ensuring robust moisture barriers. UL 1977 compliance further supports its use in control cabinets and automation panels where regulatory conformity matters.
The unit provides four female contacts in an inline receptacle configuration, suitable for compact signal and lightweight power paths in automation systems. The mating interface aligns with the JBX plug family, enabling reliable connections in space-constrained assemblies. Specific current and voltage ratings should be confirmed against the corresponding JBX plug/module specifications.
The sealing gland backshell delivers enhanced moisture ingress protection and robust strain relief, reducing field repair time and safeguarding internal contacts. This design simplifies cable entry and routing, contributing to faster assembly, easier maintenance, and longer service life in humid or dusty production lines.
Choosing the Eaton JBX connector offers higher uptime due to IP68-rated sealing and rugged metal construction, reducing unplanned downtime and replacement costs. The UL 1977 compliance and standardized JBX family compatibility lower total cost of ownership by simplifying spares, training, and maintenance across automation projects.
