Eaton JBXPC0G04FSNDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G04FSNDSR
Quick Summary
Eaton JBXPC0G04FSNDSR push-pull connector provides rugged, sealed cable connections for industrial automation equipment. In practice, technicians contend with loose mating, moisture ingress, and vibration that drive downtime. This solution delivers IP40 and IP68 sealing with a metallic backshell and UL 1977 compliance to support safe operation across harsh environments. It suits control cabinets, robotics, conveyors, and outdoor equipment, offering a compact interface within Souriau JBX series ecosystems. By choosing this connector, engineers gain reliability, faster field replacements, and reduced maintenance while meeting evolving safety and performance standards.
Product Information
Extended Description

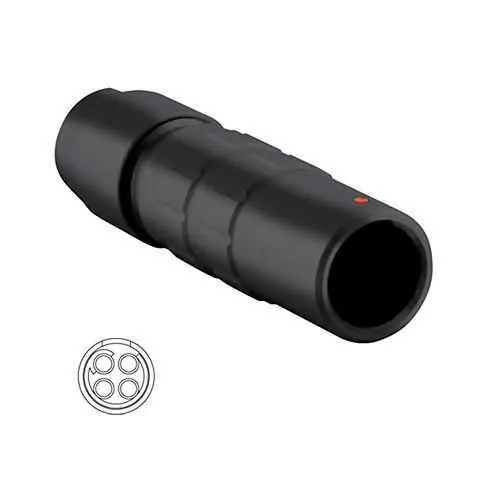

JBXPC0G04FSNDSR Eaton: In line cable receptacle, IP40, size 0, 4 female contacts, cable clamp backshell; JBXPC0G04FSNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G04FSNDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.13 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
The IP40/IP68 metallic push-pull connector in Eaton's JBX series provides rugged environmental sealing and fast mating, reducing downtime in harsh environments. With four female contacts and a cable clamp backshell, it ensures dependable power and signal transmission in control panels, robotics, and conveyors. Backshell angle is Straight and Backshell type Sealing Gland, which simplifies installation and provides moisture sealing at the harness interface. This design also supports strain relief, extending connector life in vibration-heavy machinery and mobile equipment. The compact form factor—38 mm depth, 10 mm width, and 10 mm height—coupled with a 12.13 g weight enables space-efficient integration in crowded cabinets and robotic joints, accelerating retrofit projects. UL 1977 compliance demonstrates safety and reliability for industrial environments, helping you meet regulatory requirements without overhauling existing test dossiers. Compatibility with the Souriau JBX ecosystem enables straightforward replacements and upgrades, reducing spare-part variety and lifecycle costs in automation lines.
Get a Quick Quote for a Eaton JBXPC0G04FSNDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G04FSNDSR?
Enquire Now
FAQs
Installation begins with selecting the mating Souriau JBX interface, ensuring the straight backshell aligns with the panel cutout. Utilize the cable clamp backshell to secure the conductors and apply the sealing gland to maintain IP40/IP68 protection. Verify each connection is fully seated before mating with the corresponding plug, and torque any fastening points per enclosure specifications to preserve sealing integrity.
The JBXPC0G04FSNDSR combines IP40/IP68 sealing in a metallic backshell with a sealing gland, providing dust-tight and moisture-resistant performance across indoor and outdoor installations. UL 1977 compliance further supports regulatory expectations in industrial automation, reducing risk during operation in vibration, temperature variation, and washdown scenarios.
Yes. The JBXPC0G04FSNDSR is part of the Souriau JBX ecosystem, designed for interoperability with matching JBX connectors and backshell configurations. This compatibility simplifies replacement, expands modularity for harnesses, and minimizes stock diversity during retrofits or upgrade projects in control cabinets and robotics systems.
UL 1977 compliance confirms suitability for industrial control equipment and non-incendive applications, while IP40/IP68 ratings address dust and water ingress protection. These certifications matter because they validate safety, reliability, and long-term performance in demanding environments, helping engineers meet internal standards and regulatory requirements during design reviews.
The sealing gland backshell and robust IP-rated seal reduce condensation-related faults, lowering maintenance frequency and downtime. Its compact form factor facilitates faster installation and easier retrofit, which translates into lower labor costs and shorter project timelines. Over the lifecycle, you gain improved uptime, consistent signal integrity, and reduced spare-parts inventory for Souriau JBX-based systems.
