Eaton JBXPC0G04FSSDSR push-pull connector - IP40/IP68
Part Number: JBXPC0G04FSSDSR
Quick Summary
The Eaton Souriau JBX series IP40/IP68 metallic push-pull connector is an in-line cable receptacle built for rugged industrial environments. Engineers often face sealing, speed, and space constraints wiring control panels and robotic cells; this solution addresses those pain points with a compact, field-proven design. Compliant with UL 1977 and rated IP40/IP68, it offers versatile protection across indoor and harsh enclosures while maintaining dependable mating performance. The 38 mm length and 10 mm cross-section enable tight harness routing, reducing enclosure footprint and installation time. By choosing a metallic, backshell-equipped connector, your teams gain durable performance and easier field maintenance, helping improve uptime and overall equipment efficiency while supporting scalable automation projects.
Product Information
Extended Description

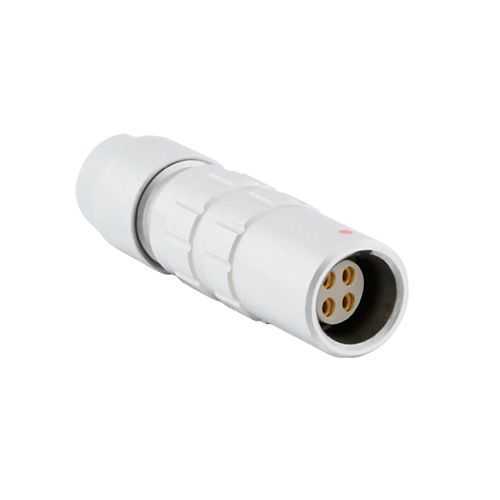

JBXPC0G04FSSDSR Eaton: In line cable receptacle, IP40, size 0, 4 female contacts, cable clamp backshell; JBXPC0G04FSSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G04FSSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.13 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature: IP40/IP68 metallic push-pull design ensures durable protection against dust and water ingress while enabling quick mating. Business Impact: reduces field failures, minimizes downtime, and speeds assembly in crowded control panels. Application: ideal for conveyors, robotic cells, and machine frames where reliability and fast connectivity are critical. Feature: 38 mm length and 10x10 mm profile deliver a compact footprint that simplifies harness routing and panel layout. Business Impact: saves space, lowers enclosure costs, and improves cable management. Application: machines with dense wiring, multi-axis robots, and compact control enclosures. Feature: UL 1977 compliance provides regulatory assurance for interconnection systems. Business Impact: simplifies procurement and validation, improves safety documentation, and supports audits. Application: industrial control panels, OEM assembly lines, and safety-critical automation deployments. Feature: Four female contacts accommodate common signal and low-power distribution needs. Business Impact: enables efficient harness design, reduces connector count, and lowers assembly time. Application: medium-density automation wiring and modular power/signal distribution in control cabinets. Feature: Cable clamp backshell delivers secure strain relief and reliable sealing. Business Impact: reduces cable movement, extends connector life, and preserves IP rating during maintenance. Application: wet or dusty environments, outdoor enclosures, and machinery in harsh factories. Feature: Straight backshell and sealing gland design simplify installation and improve serviceability. Business Impact: faster field replacements and consistent sealing performance, lowering maintenance costs. Application: panel upgrades, retrofits, and new builds across harsh industrial settings.
Get a Quick Quote for a Eaton JBXPC0G04FSSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G04FSSDSR?
Enquire Now
FAQs
To install, align the plug and receptacle and mate with a straight insertion. The straight backshell and 38 mm body length simplify mounting in tight spaces, while the cable clamp backshell provides strain relief and sealing. Use compatible 4-pin female harnesses and organize cables to maintain IP sealing during maintenance.
The connector is UL 1977 compliant and carries IP ratings IP40 and IP68, providing dust and water protection for industrial environments. It features four female contacts in a size 0 housing with a sealing gland backshell, supporting reliable performance in control panels and automation equipment.
Yes. The JBXPC0G04FSSDSR is part of the Souriau JBX family and uses a four-female-contact configuration with a straight backshell. It is designed for compatibility with standard Souriau harnesses and modular backshell components, enabling upgrades or retrofits without changing existing cables.
Typical applications include automated machinery, conveyors, robotics cells, and control panels where compact, sealed connections are required. The IP40/IP68 rating protects against dust and water, and the push-pull mechanism enables fast mating in restricted spaces, reducing downtime and improving reliability in high-density wiring scenarios.
The connector reduces downtime through quick connect/disconnect and reliable sealing, while UL 1977 compliance simplifies validation and audits. Its compact form and lightweight construction lower panel costs and support scalable automation projects, delivering tangible return on investment through faster maintenance, longer service life, and improved equipment uptime.
