Eaton JBXPC0G04MCNDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G04MCNDSR
Quick Summary
JBXPC0G04MCNDSR push-pull connector from Eaton enables rugged, sealed electrical connections in industrial harnesses. Operators often struggle with weatherproofing, fast mating, and field maintenance in harsh environments. UL 1977 compliance, IP40/IP68 ratings, and a sealing gland backshell provide safety, reliability, and long service life in demanding installations. This design supports cost-efficient installations, faster maintenance, and scalable connectivity across automation cabinets. By combining a compact footprint with a straight backshell and a sealing gland, technicians gain easier routing and improved strain relief. For design engineers, the JBX platform simplifies specification processes and speeds time-to-market for rugged machinery.
Product Information
Extended Description

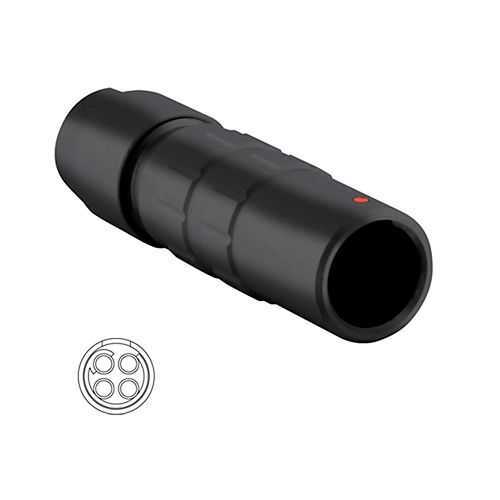

JBXPC0G04MCNDSR Eaton: In line cable receptacle, IP40, size 0, 4 male contacts, cable clamp backshell; JBXPC0G04MCNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G04MCNDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.67 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature: IP protection with IP40/IP68 ratings in a rugged metallic housing. Business Impact: This broad protection minimizes ingress-related failures, reducing service interventions and warranty costs. Application: Ideal for outdoor control panels, outdoor automation, and equipment in challenging environments. Feature: 4 male contacts in a compact size. Business Impact: Enables higher wiring density and smaller panel footprints, lowering part and labor costs. Application: robotics, machine tools, and packaging lines where space is premium. Feature: Sealing gland backshell with cable clamp. Business Impact: Improves cable seal integrity and strain relief, which extends connector life and prevents leakage. Application: field-deployed sensors, hazardous-area panels, and conveyor systems. Feature: Straight backshell orientation and precise 38 mm length. Business Impact: Simplifies mating alignment and panel cutouts, shaving installation time and reducing mis-mates. Application: modular automation racks and compact enclosures where alignment matters. Feature: UL 1977 compliance and industry‑standard compatibility. Business Impact: Ensures safety, regulatory alignment, and easier extendability across systems. Application: OEMs and integrators requiring certified components for control networks and safety interlocks. Feature: Lightweight form factor (11.67 g) and 10x10 mm envelope. Business Impact: Reduces overall chassis weight and enables easier harness routing. Application: portable or mobile machinery where weight matters.
Get a Quick Quote for a Eaton JBXPC0G04MCNDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G04MCNDSR?
Enquire Now
FAQs
The JBXPC0G04MCNDSR is a size 0, 4‑contact in-line receptacle with a straight backshell and sealing gland. It fits standard panel cutouts designed for 38 mm length and 10x10 mm cross-section, aligning mating interfaces easily and supporting cable clamps for secure harness routing.
The connector is UL 1977 compliant, ensuring safety and reliability for modular wiring systems. It also offers IP40/IP68 protection, providing ingress resistance across indoor and outdoor deployments, which is essential for harsh industrial environments.
Yes. The IP40/IP68 ratings combined with the sealing gland backshell enable reliable operation in outdoor cabinets, conveyors, and rugged machinery. The metal housing adds durability against impacts and harsh conditions, reducing maintenance intervals.
The straight backshell simplifies alignment during mating, reduces the likelihood of mis-mates, and shortens installation time in tight enclosures. The 38 mm length and compact 10x10 mm footprint fit neatly into compact automation cabinets and panel layouts.
With four male contacts, a sealing gland backshell, and UL 1977 compliance, the connector delivers durable performance and easy field maintenance. The robust ingress protection minimizes downtime, while the light weight and compact form factor ease harness installation and rework costs.
