Eaton Souriau JBXPC0G04MCSDSR JBX Series IP40/IP68 Connector - UL 1977
Part Number: JBXPC0G04MCSDSR
Quick Summary
Eaton Souriau JBXPC0G04MCSDSR JBX IP40/IP68 push-pull connector provides rugged inline cable receptacles for automation equipment. Tight spaces, inconsistent seals, and difficult maintenance disrupt line reliability. It combines IP40/IP68 sealing and UL 1977 compliance to meet essential safety and environmental standards. For automation wiring and connectivity projects, the compact 38 mm profile, lightweight build, and 4‑pin configuration translate to faster installation and reduced total cost of ownership. This makes it suitable for robotics, conveyors, and packaging lines where reliable mating and seal integrity are critical. Engineers value predictable performance and simplified sourcing from Eaton's Souriau JBX family.
Product Information
Extended Description

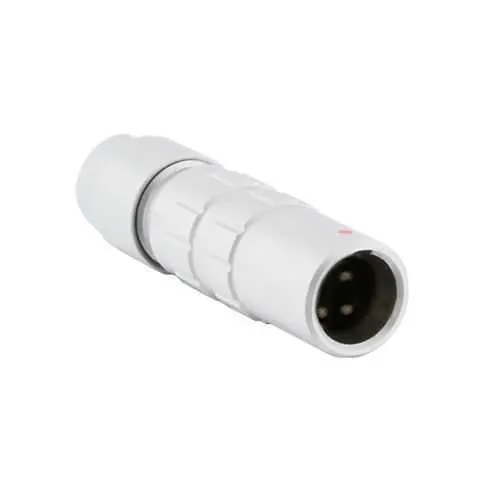

JBXPC0G04MCSDSR Eaton: In line cable receptacle, IP40, size 0, 4 male contacts, cable clamp backshell; JBXPC0G04MCSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G04MCSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.67 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
IP40/IP68 sealing and a metallic backshell provide dependable environmental protection, reducing ingress risk in wet and dusty environments and extending service intervals. This directly translates to lower maintenance costs and higher line uptime in harsh manufacturing settings, particularly for in-line cable receptacles used on conveyors and robotics. The compact 38 mm length and 10×10 mm footprint, paired with a total weight of 11.67 g, enable space-efficient installations in tight control panels and mobile equipment, improving dynamic response and reducing enclosure footprint. The straight backshell with a sealing gland simplifies cable routing and end-face sealing, speeding assembly and decreasing rework caused by gasket misalignment. Four male contacts support straightforward integration with standard cabling schemes, streamlining harness design for sensors and actuators on machine platforms. UL 1977 compliance further reinforces regulatory alignment and safety. In practical terms, this means faster commissioning, predictable performance, and longer lifecycle for industrial automation projects.
Get a Quick Quote for a Eaton JBXPC0G04MCSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G04MCSDSR?
Enquire Now
FAQs
The JBXPC0G04MCSDSR uses a straight backshell and sealing gland for easy alignment and reliable sealing. It is designed for inline cable receptacles in compact automation panels, with a 38 mm depth that fits shallow enclosures. Ensure the panel cutout supports the 10 mm width and 38 mm depth, and use proper gland sealing to maintain IP40/IP68 protection.
This connector features 4 male contacts and supports IP40 and IP68 sealing ratings. The IP68 capability provides robust ingress protection against dust and water for submersion conditions, while IP40 covers common indoor industrial environments. These ratings, combined with UL 1977 compliance, help ensure safe operation in automated machinery and robotic systems.
Yes. The 4‑pin, metallic push‑pull design with sealing gland backshell is well-suited for robotics and conveyors. The IP40/IP68 sealing ensures reliability in dusty or damp environments, while the compact 38 mm profile minimizes space impact on moving equipment. The rugged construction supports frequent mating cycles typical in automation lines, improving uptime and ease of maintenance.
The JBXPC0G04MCSDSR complies with UL 1977 and offers IP40/IP68 ingress protection. Its metallic backshell and sealing gland design meet environmental protection and safety requirements relevant to interconnection devices in industrial automation. This combination supports regulatory compliance during system integration and factory acceptance testing.
The IP sealing and sealing gland backshell reduce ingress-related maintenance, lowering downtime and repair costs. The 38 mm compact form factor simplifies wiring harness design, enabling faster commissioning and fewer field modifications. Over the system lifecycle, the robust construction and UL 1977 certification contribute to longer service intervals and improved total cost of ownership in high-demand automation environments.
