Eaton JBXPC0G04MSSDSR Wiring & Connectivity - IP40/IP68
Part Number: JBXPC0G04MSSDSR
Quick Summary
The Eaton JBXPC0G04MSSDSR is a rugged push-pull connector optimized for IP40/IP68 environments in industrial wiring and control panels. It addresses common pain points such as difficult mating, uncertain seal integrity, and time-consuming field maintenance. UL 1977 compliance, IP ratings, and a durable metal housing ensure dependable performance across harsh manufacturing floors and outdoor installations. As part of the Souriau JBX series, the design supports compact, high-density harnessing and faster, safer assemblies for automation projects. This translates to lower total cost of ownership and improved uptime for panel builders, integrators, and maintenance teams.
Product Information
Extended Description

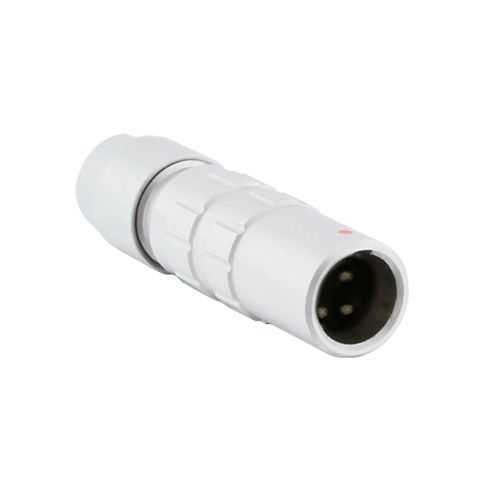

JBXPC0G04MSSDSR Eaton: In line cable receptacle, IP40, size 0, 4 male contacts, cable clamp backshell; JBXPC0G04MSSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G04MSSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.76 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
The JBXPC0G04MSSDSR features a rugged metallic push-pull housing that delivers robust mating reliability and EMI shielding, enabling compact 4-contact connections for power and signal in demanding automation environments. This directly improves system uptime and allows engineers to design smaller, cleaner harnesses for control cabinets and robotics, reducing installation time and field fault rates. The 38 mm length with a 10x10 mm footprint supports tight panel layouts while preserving mechanical strength, contributing to faster commissioning and easier serviceability in conveyors and packaging lines. The straight backshell and sealing gland backplane simplify routing and ensure ingress protection, which lowers rework and supports cleanability in wash-down environments. UL 1977 compliance further guarantees regulatory alignment for industrial machinery, automation, and process applications, while the IP40/IP68 ratings provide flexible deployment from indoor to demanding outdoor settings. The 11.76 g weight minimizes harness mass and vibration-induced wear, improving overall system reliability in dynamic applications. Compatibility with the Souriau JBX series streamlines procurement and spare-part management, enabling standardized harness architectures across multi-line automation projects. Industry-specific advantages include predictable maintenance cycles and reduced training time for technicians thanks to consistent interfaces and documentation across the product family.
Get a Quick Quote for a Eaton JBXPC0G04MSSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G04MSSDSR?
Enquire Now
FAQs
The JBXPC0G04MSSDSR is designed to mate with other Souriau JBX series connectors, sharing the same straight backshell and sealing gland interface. This enables seamless module-to-harness integration in IP40/IP68 configurations, supporting 4 male contacts for compact power and signal runs. Using the same family simplifies sourcing, reduces tooling needs, and improves traceability across automation panels and robotic systems.
IP40 and IP68 protection influence both indoor and wash-down outdoor installations by providing durable ingress protection across environmental conditions. Ensure proper cable clamp backshell engagement and correct mating orientation to preserve seal integrity during assembly. This reduces field faults, lowers maintenance cycles, and supports reliable operation in conveyors, packaging lines, and material-handling automation.
Yes, UL 1977 compliance is applicable to this connector, indicating suitability for use in industrial control and automation circuits. The certification supports safe termination with four contacts and reliable performance under normal and fault conditions. It helps engineers meet regulatory requirements, simplify supplier qualification, and maintain equipment safety standards across automation, processing, and packaging facilities.
Straight backshell with a sealing gland design simplifies cabling paths and ensures consistent seal performance. Plan for correct clamp positioning, verify the gland seal after assembly, and align cable entry to minimize bending and stress. This reduces installation errors, preserves IP protection, and accelerates panel-building timelines in control cabinets and field devices.
Adopting the JBX series connector yields measurable ROI through longer service life, fewer field faults, and easier maintenance in harsh environments. The metallic housing and sealing gland backplane provide rugged protection, while compact size and light weight ease harnessing in tight spaces. Combined with UL 1977 and IP ratings, this translates to higher uptime and lower total cost of ownership.
