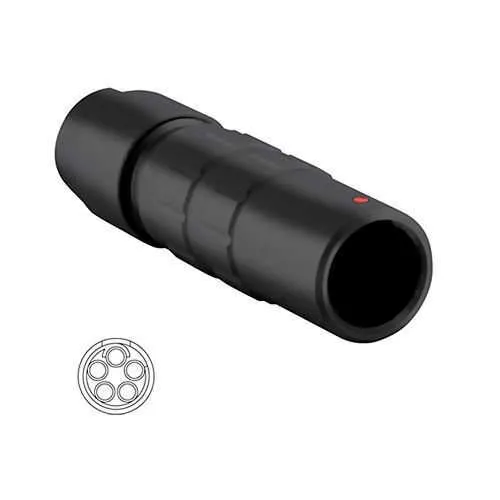

Eaton JBXPC0G05FCNDSR IP40/IP68 Metallic Push-Pull Connector - UL 1977
Part Number: JBXPC0G05FCNDSR
Quick Summary
The Eaton JBXPC0G05FCNDSR is a rugged metallic push-pull connector for IP-rated industrial wiring and automation interfaces. Engineers often struggle with sealing reliability, quick mating, and durability in harsh environments. UL 1977 compliance, IP40/IP68 ratings, and a sealing gland backshell provide regulatory confidence, broad environmental tolerance, and robust cable management. This compact, straight-backshell design minimizes panel space while delivering dependable performance across automation and machine-build applications, making it a versatile choice for factory floors, packaging lines, and control panel assemblies.
Product Information
Extended Description
JBXPC0G05FCNDSR Eaton: In line cable receptacle, IP40, size 0, 5 female contacts, cable clamp backshell; JBXPC0G05FCNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G05FCNDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.21 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
The IP40/IP68 metal Push-Pull design delivers environmental protection across indoor and demanding field installations, reducing unwanted ingress and downtime while simplifying maintenance in control panels and machines. This robust housing translates to measurable uptime gains and longer service intervals, especially in conveyors, robotics, and automated assembly lines where reliability matters. Its compact footprint—38 mm length with 10 x 10 mm cross-section—saves panel real estate and eases harness routing, enabling faster installations and more economical enclosures with minimal cabling complexity. With 5 female contacts, the connector supports flexible wiring schemes for power, data, and control signals, improving harness versatility and reducing the need for additional parts. The Sealing Gland backshell and cable clamp backshell enhance strain relief and environmental sealing, addressing common field-installation challenges such as cable movement and moisture ingress. UL 1977 compliance further reduces risk in control-system interconnects, aligning with stringent industrial standards. The straight backshell and compatibility with the Souriau JBX series streamline replacement and future upgrade paths for OEMs and integrators.
Get a Quick Quote for a Eaton JBXPC0G05FCNDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G05FCNDSR?
Enquire Now
FAQs
The connector supports IP40 and IP68 ratings. IP40 protects against solid objects, while IP68 provides enhanced ingress protection against water and dust, indicating suitability for harsh industrial environments and field installations.
The device has a compact 38 mm depth with a 10 mm width and height, and it contains 5 female contacts, enabling versatile wiring for power, data, and control signals.
Yes, it is UL 1977 compliant, which supports safe and reliable interconnection in control systems and industrial equipment.
It uses a Sealing Gland backshell with a cable clamp backshell, providing enhanced sealing and strain relief to protect against moisture ingress and cable movement.
It's ideal for industrial automation, control panels, robotics, and machine-build wiring where a compact, rugged, IP-rated interconnect with reliable sealing and quick-mate capability is required.
