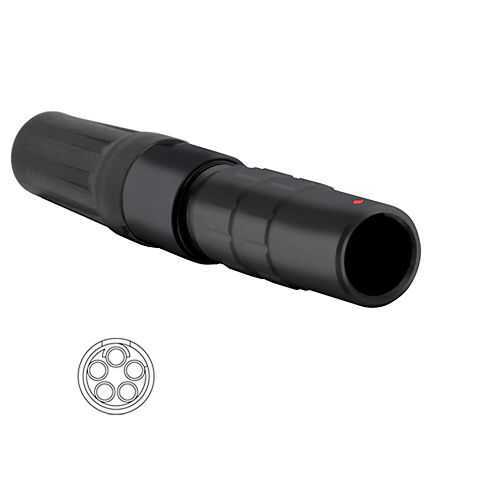

Eaton JBXPC0G05FCSDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G05FCSDSMR
Quick Summary
The Eaton Souriau JBXPC0G05FCSDSMR Push-Pull Connector is a rugged in-line solution for fast, secure power and signal coupling in harsh industrial environments. End users often wrestle with ingress, vibration, and costly field maintenance when choosing connectors that seal poorly or resist repeated mating. UL 1977 compliance and IP40/IP68 protection ensure safety and reliability in the toughest panel and enclosure applications, while the straight backshell and sealing gland with an optional boot simplify installation and field service. With a compact 38 mm length, 10 mm width and height, and five female contacts, this connector minimizes panel footprint and wiring complexity, delivering tangible cost savings in automation projects and equipment upgrades.
Product Information
Extended Description
JBXPC0G05FCSDSMR Eaton: In line cable receptacle, IP40, size 0, 5 female contacts, cable clamp protective boot; JBXPC0G05FCSDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G05FCSDSMR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.21 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Rugged metallic housing delivers IP40 and IP68 protection, meeting stringent industrial standards and shielding fragile contacts from dust, moisture, and mechanical shocks. This directly reduces failure rates in factory floors, outdoor installations, and rugged robotics, enabling longer service intervals and lower maintenance costs. Five female contacts in a compact 38 mm inline receptacle enables multi-node connections without demanding panel real estate. The small footprint accelerates assembly in tight control cabinets, short harness lengths, and faster field terminations, improving overall installation times and reducing long-term wire management costs. Backshell with sealing gland and optional boot provides robust sealing and strain relief at the cable exit, decreasing ingress risk after a panel is sealed. This feature simplifies field retrofits and reduces resealing work during maintenance, which is critical in high-vibration environments. Straight backshell and compatibility with the Souriau JBX family offer straightforward mating and predictable alignment in automated assemblies. This improves repeatability during automated tooling and reduces misalignment risk in robotic grippers or conveyor systems. UL 1977 compliance, combined with IP40/IP68 protection and a lightweight, compact form factor (38 mm Ă— 10 mm Ă— 10 mm; 12.21 g), supports cost-efficient panel upgrades, regulatory compliance, and easier field service. The design choice of five female contacts aligns with common low-power control and signaling needs in industrial automation.
Get a Quick Quote for a Eaton JBXPC0G05FCSDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G05FCSDSMR?
Enquire Now
FAQs
The JBXPC0G05FCSDSMR uses a rugged metallic housing, a sealing gland with an optional boot, and a straight backshell to deliver IP40/IP68 protection. This combination resists dust, moisture, and vibration, ensuring reliable mating and long service life in factory floors, outdoor installations, and robotics where environmental exposure is common.
Yes, this connector is UL 1977 compliant, indicating adherence to recognized safety and performance standards for interconnections used in intelligent devices. For control panels, UL 1977 compliance supports safer operation, easier regulatory approvals, and improved traceability, especially in applications where panel assemblies are subject to electrical and environmental stress.
Yes, the backshell supports a sealing gland with an optional boot, which provides enhanced sealing and strain relief at the cable exit. This simplifies field installations and retrofit work, reduces ingress risk after sealing, and improves reliability in moist or vibration-heavy environments.
The connector footprint is compact: 38 mm in length with a 10 mm width and height, and a weight of 12.21 g, housing 5 female contacts. This small form factor enables higher packing density, shorter harnesses, and more efficient panel layouts in control cabinets and machinery enclosures, lowering overall system size and wiring complexity.
Industrial automation, robotics, control panels, and rugged field equipment stand to gain from the JBX series. Its IP protection, UL 1977 compliance, and compact metallic construction make it well suited for harsh environments, high-vibration machinery, and tight-panel implementations where reliable, quick-mating connectors are essential.
