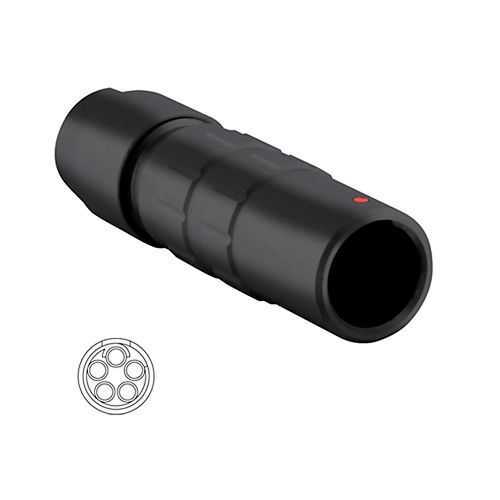

Eaton JBXPC0G05FSNDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G05FSNDSR
Quick Summary
The Eaton Souriau JBXPC0G05FSNDSR is a rugged metallic push-pull connector designed for harsh industrial wiring. Engineers often struggle with moisture ingress, dust, and unreliable quick-connects that slow production and drive maintenance costs. This solution delivers IP40 and IP68 sealing along with UL 1977 compliance, backed by a straight backshell and sealing gland for dependable performance in challenging environments. The compact 38 mm length and 5 female contacts enable flexible installations in tight panels while keeping field service simple and cost-efficient for machine builders and system integrators alike.
Product Information
Extended Description
JBXPC0G05FSNDSR Eaton: In line cable receptacle, IP40, size 0, 5 female contacts, cable clamp backshell; JBXPC0G05FSNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G05FSNDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.28 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
IP rated sealing and rugged metallic construction reduce moisture and dust intrusion, extending service intervals and lowering downtime in harsh industrial environments. The 38 mm long, 10 mm wide and 10 mm high form factor fits compact control panels and tight enclosures, enabling cleaner routing and easier installation, while the 5 female contacts support essential signal and small-power applications with reliable mating. A cable clamp backshell provides strain relief and helps maintain integrity in vibration-prone settings, reducing field wear and rework costs. UL 1977 compliance adds certified safety and reliability for industrial wiring harnesses, aligning with customer requirements for regulated applications. The straight backshell with a sealing gland simplifies mating alignment and ensures consistent sealing performance across assemblies, delivering predictable installation and reduced maintenance burden. This combination improves overall equipment effectiveness (OEE) by reducing troubleshooting time and enabling quicker field upgrades, especially in automation panels, process equipment, and packaging lines. Compatibility with the JBX series ecosystem ensures seamless integration with existing Souriau components and simplifies part sourcing and inventory management.
Get a Quick Quote for a Eaton JBXPC0G05FSNDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G05FSNDSR?
Enquire Now
FAQs
What mounting and mating considerations are required for the JBXPC0G05FSNDSR in legacy equipment? The connector uses a straight backshell with a sealing gland and a 38 mm depth, allowing straightforward alignment with panel cutouts. Ensure the mating half is compatible within the Souriau JBX family, secure the cable clamp for strain relief, and verify UL 1977 compliance for the final assembly.
How does the 5 female contact arrangement affect performance? The five-pin configuration supports essential signal and low-current power connections with reliable contact density. In practice, this improves wiring efficiency in control panels and reduces the number of separate connectors, lowering assembly time and potential contact wear in vibration-prone equipment.
Why is it appropriate for outdoor or harsh environments? The IP40/IP68 ratings provide ingress protection across indoor and outdoor conditions, with a sealing gland backshell that maintains sealing integrity under vibration. This makes it suitable for machinery enclosures, outdoor automation, and process equipment exposed to dust, moisture, or washdowns.
What certifications apply to this connector? It is UL 1977 compliant, offering recognized safety and performance standards for industrial connectors in automation and control systems. IP ratings further confirm environmental protection, while the metal backshell adds mechanical robustness for field or factory installations.
How does this connector affect maintenance and ROI? The combination of IP sealing, a sealing gland backshell, and a compact 38 mm footprint reduces maintenance downtime and simplifies retrofits. Fewer ingress-related faults, quicker mating, and compatibility with existing Souriau components translate to lower lifecycle costs and faster deployment in automation projects.
