Eaton JBXPC0G05FSSDSMR JBX Push-Pull Connector - UL1977
Part Number: JBXPC0G05FSSDSMR
Quick Summary
The Eaton Souriau JBXPC0G05FSSDSMR is a rugged metallic push-pull connector designed for harsh industrial environments. Engineers often struggle with reliable sealing, easy mating, and maintenance in vibration-prone assemblies. This series supports IP40 and IP68 ratings for flexible indoor and outdoor use, with UL 1977 certification to meet connector safety and performance standards. Ideal for control panels, robotics, and process automation, it helps reduce downtime and simplify installation for procurement teams.
Product Information
Extended Description

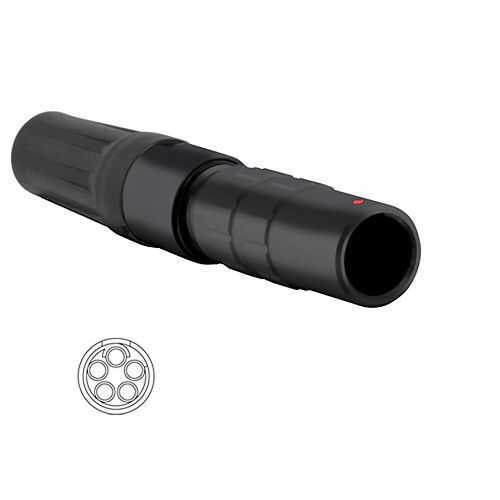

JBXPC0G05FSSDSMR Eaton: In line cable receptacle, IP40, size 0, 5 female contacts, cable clamp protective boot; JBXPC0G05FSSDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G05FSSDSMR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.28 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature → Business Impact → Application: IP40 / IP68 environmental protection reduces ingress risk across indoor and exterior environments, improving uptime and reliability in washdown zones and outdoor installations. This translates to lower maintenance costs and fewer unplanned outages in automation lines, particularly in food, beverage, and manufacturing settings where hygiene and rugged sealing matter. Feature → Business Impact → Application: Metallic construction provides robust shielding and EMI performance, enhancing signal integrity in noisy factory floors. Use this in robotics and CNC machines to prevent interference and ensure consistent control and sensing. Feature → Business Impact → Application: 5 female contacts in a compact, size 0 footprint enables compact harness design and flexible circuit wiring, streamlining panel layouts and reducing cable clutter in control cabinets. Feature → Business Impact → Application: Sealing gland with optional boot offers field adaptability without compromising IP ratings, simplifying retrofits and custom installations in evolving automation lines. Feature → Business Impact → Application: Straight backshell and plug compatibility with Souriau JBX series ensure quick, tool-free mating, lowering commissioning time and inventory complexity for OEMs and integrators. Feature → Business Impact → Application: UL 1977 compliance reinforces safety and reliability in industrial automation, supporting warranty terms and regulatory alignment while enabling scalable deployment across multiple lines.
Get a Quick Quote for a Eaton JBXPC0G05FSSDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G05FSSDSMR?
Enquire Now
FAQs
For installation, the straight backshell supports fixed panel mounting, while the Sealing Gland With Optional Boot preserves IP sealing even with cable entry. The 38 mm length fits compact enclosures, and correct mate orientation prevents connector damage. Use standard Souriau components within the JBX family to ensure reliable alignment and consistent performance in dynamic environments.
Yes. This connector is part of the JBX series and shares the same mating interface with IP40/IP68 sealing. With 5 female contacts and a size-0 configuration, it plugs into compatible JBX receptacles and cables, ensuring reliable mating, proper alignment, and reduced risk of cross-connection in mixed-harness environments.
Ideal for control panels, robotic systems, and machine automation wiring where rugged IP-rated connectivity is required. The combination of IP68 sealing, metal housing, and optional boot supports washdown and high-vibration environments, making it suitable for outdoor machinery, conveying systems, and sensor/actuator harnesses in industrial plants.
This connector complies with UL 1977 for safety and performance in electrical connections used in automation. It also provides IP ratings IP40 and IP68, enabling reliable operation in varied indoor and outdoor conditions while maintaining environmental protection and mechanical robustness in demanding industrial settings.
Adopting the JBX push-pull connector reduces downtime through tool-free mating and reliable sealing, lowering maintenance costs. Its compact, lightweight footprint simplifies harness routing and panel space, enabling faster assembly and easier retrofits. UL 1977 compliance further supports warranty terms and regulatory alignment, delivering measurable efficiency gains across automation lines.
