Eaton JBXPC0G05FSSDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G05FSSDSR
Quick Summary
The Eaton Souriau JBX push-pull connector delivers IP40/IP68 reliability for harsh industrial environments. This compact, metallic housing supports fast mating and robust sealing in space-constrained assemblies. Designers often battle with ingress, backshell integrity, and cable strain in panel-mounted or harnessed applications. UL 1977 compliance ensures safe, dependable operation in control panels, while IP ratings guard against dust and moisture. By combining a 38 mm length with a 10 mm width and 10 mm height, and a 5-female-contact configuration, this connector streamlines installation and reduces maintenance, offering a durable, cost-effective solution for automation, machine tooling, and material handling projects.
Product Information
Extended Description

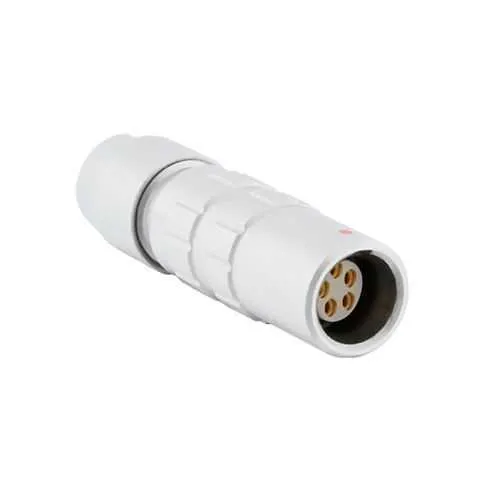

JBXPC0G05FSSDSR Eaton: In line cable receptacle, IP40, size 0, 5 female contacts, cable clamp backshell; JBXPC0G05FSSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G05FSSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.28 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature → IP40/IP68 protection in a metallic push-pull housing → Business Impact → Delivers versatile protection against dust and moisture, supporting reliable operation in demanding environments; Application → Ideal for automation equipment, conveyors, and robotics where rugged sealing reduces downtime. Feature → 5 female contacts in a compact body → Business Impact → Enables compact harnessing with sufficient signal/power channels; Application → Fits space-constrained control panels and multi-function assemblies. Feature → Sealing gland backshell with cable clamp → Business Impact → Improves cable retention and environmental sealing; Application → Simplifies field-installation and long-term strain relief in harsh installations. Feature → Straight backshell and 38 mm length, 10x10 mm footprint → Business Impact → Facilitates easy mating in tight panel spaces; Application → Suitable for in-line, panel-mounted, or harness-based configurations. Feature → UL 1977 compliance and rugged lightweight design → Business Impact → Meets safety standards while reducing weight and overall system cost; Application → Preferred for electrical interconnections in industrial automation and material handling. Feature → 12.28 g weight → Business Impact → Minimizes added mass in multi-connector harnesses, improving vibration resistance; Application → Beneficial in robotics and mobile machinery where weight is critical.
Get a Quick Quote for a Eaton JBXPC0G05FSSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G05FSSDSR?
Enquire Now
FAQs
The connector is designed as an in-line cable receptacle with a straight backshell and a sealing gland, supporting both panel- and harness-based installations. Its compact 38 mm length and 10x10 mm footprint enable dense layouts. Use the cable clamp backshell to secure the cable and reduce strain, ensuring reliable mating and long-term performance in harsh environments.
This model provides 5 female contacts within a 38 mm long body, with overall dimensions of 38 mm length and 10x10 mm cross-section. It weighs 12.28 g and carries UL 1977 compliance. The housing is metallic and designed for IP40/IP68 protection, with a straight backshell and a sealing gland for robust environmental sealing.
Yes. The JBXPC0G05FSSDSR supports IP68 in addition to IP40, making it suitable for equipment exposed to dust and moisture in rugged or mobile applications. The sealing gland backshell maintains interface integrity, while the metallic housing provides mechanical protection against vibration and impact common in industrial machinery and conveyors.
UL 1977 compliance indicates suitability for use in wiring devices and interconnections within control panels and industrial equipment. This certification supports safe operation under typical industrial conditions and helps with supplier qualification, reducing qualification time for OEMs. Always verify the specific regional adoption and any supplementary standards required for your application.
The JBXPC0G05FSSDSR reduces maintenance needs through robust sealing and a secure backshell, lowering ingress-related failures. Its light weight and compact form support dense harnesses, improving installation efficiency and reducing assembly time. UL 1977 compliance adds confidence in safety, potentially lowering warranty and downtime costs in automation, robotics, and material-handling systems.
