Eaton JBXPC0G05MCNDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G05MCNDSMR
Quick Summary
The Eaton Souriau JBXPC0G05MCNDSMR push-pull connector provides rugged, IP-rated connectivity for harsh industrial environments and demanding automation applications. This compact solution helps control panels, robotics, and machine-building teams overcome space constraints without sacrificing reliability. With UL 1977 compliance and IP ratings that cover IP40 and IP68, it supports safe, compliant usage across a range of environments while enabling easy integration with existing Eaton Souriau JBX series components. The combination of a sealing gland with optional boot and a compact 38 mm length delivers both protection and installation efficiency, while the 5-pin configuration supports essential signaling and power paths in OEM equipment.
Product Information
Extended Description
JBXPC0G05MCNDSMR Eaton: In line cable receptacle, IP40, size 0, 5 male contacts, cable clamp protective boot; JBXPC0G05MCNDSMR
Product Name

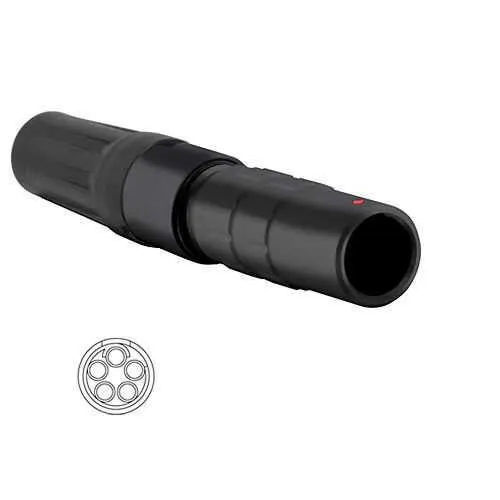

Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G05MCNDSMR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.75 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature → Business Impact → Application: IP40/IP68 metallic backshell delivers dust and moisture resistance, improving uptime and reducing maintenance costs in final assemblies and field installations; this translates to fewer unplanned outages in automated lines and outdoor equipment. Feature → Business Impact → Application: 38 mm length with 10x10 mm cross-section keeps panel cutouts compact, enabling denser layouts in control cabinets and robotics where space is at a premium. Feature → Business Impact → Application: 5 male contacts provide essential signaling and power paths with reliable mating, simplifying cable routing in machines and reducing wiring complexity in automation projects. Feature → Business Impact → Application: UL 1977 compliance supports regulatory alignment and safety certification for industrial automation systems, easing procurement and system integration tasks for OEMs. Feature → Business Impact → Application: Sealing gland with Optional Boot option offers enhanced field-serviceability and moisture protection, minimizing exposure during maintenance in dusty or humid environments.
