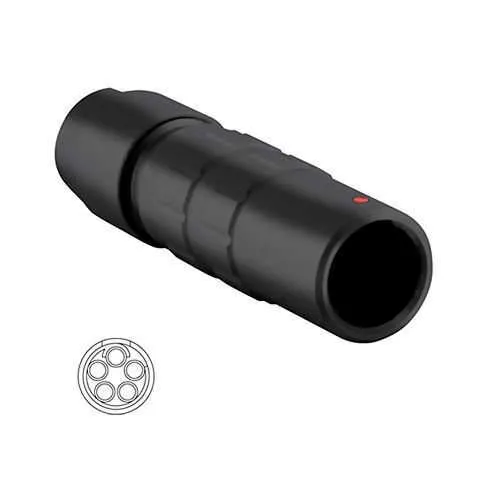

Eaton JBXPC0G05MCNDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G05MCNDSR
Quick Summary
Eaton Souriau JBXPC0G05MCNDSR is a rugged IP-rated metal push-pull connector engineered for industrial wiring in harsh environments. Engineers often struggle with sealing integrity, fast field mating, and reliable performance under dust, moisture, and vibration; this connector addresses those challenges with a durable backshell, cable clamp, and a compact 38 mm length. It carries UL 1977 compliance and IP ratings IP40 and IP68, offering dependable operation across control cabinets, machinery, and outdoor enclosures. By delivering a 5-pole configuration in a compact form, it enables streamlined wiring, reduces assembly time, and lowers maintenance costs in automation and wiring projects while integrating with Souriau’s JBX series ecosystem.
Product Information
Extended Description
JBXPC0G05MCNDSR Eaton: In line cable receptacle, IP40, size 0, 5 male contacts, cable clamp backshell; JBXPC0G05MCNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G05MCNDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.75 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature → Business Impact → Application: IP-rated metal housing provides rugged durability and ingress protection, reducing field failures and warranty costs in harsh environments; application in automated machinery and outdoor installations. Feature → 5 male contacts supports simultaneous power and signal paths in a single compact connector, cutting harness length and installation steps while improving reliability in robotics and control panels. Feature → Sealing gland backshell with cable clamp backshell delivers robust sealing and strain relief, extending service intervals in environments with moisture, dust, and vibration; ideal for line-receptacle installations on conveyors and packaging lines. Feature → Compact dimensions (38 mm length, 10x10 mm footprint) enable tight mounting in cramped panels and equipment enclosures, accelerating installations in machine builders and panel shops. Feature → UL 1977 compliance ensures regulatory alignment for safety-critical control systems, reducing risk during certification and commissioning. Feature → Straight backshell simplifies cabling layouts and mating alignment, improving field rebuilds and maintenance in industrial automation environments. These combined attributes support cost-effective, reliable connectivity in Souriau’s JBX series deployments, including industrial robots, motor drives, and instrumentation cabinets.
Get a Quick Quote for a Eaton JBXPC0G05MCNDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G05MCNDSR?
Enquire Now
FAQs
The JBXPC0G05MCNDSR is designed for IP40 and IP68 protection, featuring a sealing gland backshell and cable clamp. It mates with compatible Souriau JBX components and supports in-line cable receptacle applications, delivering reliable ingress protection in dusty, damp, or outdoor environments while simplifying field installation.
This 5-pole, straight-backshell connector measures 38 mm in depth with a 10 mm width and height, weighs 11.75 g, and uses a sealing gland backshell. It is UL 1977 compliant and offers IP40/IP68 ratings, ensuring both electrical performance and environmental resilience for control cabinets and machinery.
Yes. The JBXPC0G05MCNDSR is well-suited for robotics and control cabinets due to its compact form, rugged IP-rated housing, and 5-contact configuration that supports mixed power and signal needs. Its quick-mate push-pull design reduces cycle times in automated cells and minimizes downtime during maintenance and reconfigurations.
The connector carries UL 1977 certification, affirming safety and performance for industrial and commercial use. Its IP40 and IP68 ratings provide environmental protection against dust and water, crucial for equipment operating in harsh environments. These standards help streamline compliance during procurement and system integration.
The combination of a sealing gland backshell, cable clamp, and straight backshell enables reliable mating, secure cable management, and reduced maintenance frequency. The push-pull mechanism speeds assemblies and disconnections, lowering labor costs and downtime, while UL 1977 compliance supports lower risk during commissioning and long-term operation.
