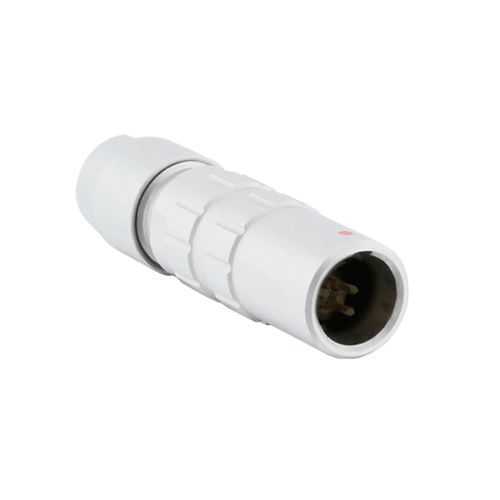

Eaton JBXPC0G05MCSDSR JBX Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G05MCSDSR
Quick Summary
The Eaton Souriau JBX push-pull connector provides rugged, reliable inline cabling for industrial automation and machine-building. Pain points like moisture ingress and unplanned downtime in harsh environments are common, especially on conveyors and robotic cells. This series delivers IP40 and IP68 sealing with UL 1977 compliance, ensuring dependable operation across temperature swings and high-vibration applications. With a compact 38 mm length and a sealing gland backshell, it saves panel space while simplifying installation and future maintenance. Using the JBX family reduces wiring complexity and supports durable, easy-to-service connections in automated systems. Secondary considerations such as metallic backshell construction and 5-contact configuration enhance reliability in demanding environments.
Product Information
Extended Description
JBXPC0G05MCSDSR Eaton: In line cable receptacle, IP40, size 0, 5 male contacts, cable clamp backshell; JBXPC0G05MCSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G05MCSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.75 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature: IP40/IP68 metallic push-pull connector provides robust environmental protection. Business Impact: minimizes ingress risk and protects critical signal and power paths, reducing field failures and service calls. Application: in-line cable receptacles for conveyors, robotics, and outdoor machinery. Feature: 38 mm product length with 10 mm width and height; 5 male contacts; straight backshell; cable clamp backshell; sealing gland. Business Impact: compact yet capable footprint enables tighter panel layouts and easier retrofits, improving installation efficiency and reducing assembly time. Application: panel-mount or inline harness configurations in machine cells. Feature: UL 1977 compliance; backshell type Sealing Gland; backshell angle Straight. Business Impact: regulatory readiness and可靠 sealing for safety-critical systems, enabling multi-supplier integration in control cabinets. Application: industrial automation and electrical distribution where certified components are required. Feature: All-metallic housing and sealing design deliver vibration resistance and long-term durability. Business Impact: lowers maintenance costs and extends service intervals in high-cycle environments. Application: packaging lines, material handling, and outdoor equipment. Feature: 5-contact arrangement supports multi-signal/multi-power applications with straightforward mating. Business Impact: reduces harness complexity and inventory while speeding diagnostics. Application: robot cells, CNCs, and integrated tooling where reliable connectivity is essential.
Get a Quick Quote for a Eaton JBXPC0G05MCSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G05MCSDSR?
Enquire Now
FAQs
Install by aligning the push-pull mating faces, ensuring correct keying with the straight backshell. Secure the cable via the included cable clamp backshell and sealing gland to achieve UL 1977-compliant environmental protection. Verify IP40/IP68 sealing after termination, then connect to the mating Souriau JBX components for a robust inline circuit in automation equipment.
The combination of a metallic housing, sealing gland backshell, and cable clamp provides reliable ingress protection across IP40 and IP68. This design withstands dust, moisture, and vibration, reducing field failures and extending service intervals in harsh industrial settings such as conveyors, robotics cells, and outdoor equipment.
Yes, the JBXPC0G05MCSDSR carries UL 1977 compliance, making it suitable for control and automation environments where safety and reliability are required. Ideal applications include industrial automation, packaging lines, material handling, and robotics where secure, serviceable inline connections are critical.
Use the JBX family for consistent mating interfaces, backshell options, and sealing performance. Ensure connector gender and contact configuration align with the existing harness and mating receptacles, and select the sealing gland backshell variant to maintain IP protection across environments.
The rugged IP40/IP68 rating, metallic housing, and sealing gland backshell reduce downtime due to ingress-related faults and simplify maintenance with straightforward assembly. While initial cost is offset by longer service intervals, predictable performance in vibration-heavy or outdoor applications lowers total cost of ownership over the system life cycle.
