Eaton JBXPC0G05MSNDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G05MSNDSMR
Quick Summary
The Eaton Souriau JBX series IP40/IP68 metallic push-pull connector securely mates cables in rugged industrial systems. Engineers wrestle with moisture ingress, sealing failures, and maintenance downtime in field installations. UL 1977 compliance and IP protection ensure safety and environmental resilience, with a sealing gland and optional boot for added ingress protection. This combination lowers integration risk and supports faster deployment in automation, robotics, and process equipment. Its compact 38 mm length and 10 mm width fit tight panels, while the 5 male contacts enable compact wiring harnesses. By aligning with Souriau JBX series, procurement gains a proven supply chain with interchangeable parts that reduce part variance and spare part stock.
Product Information
Extended Description

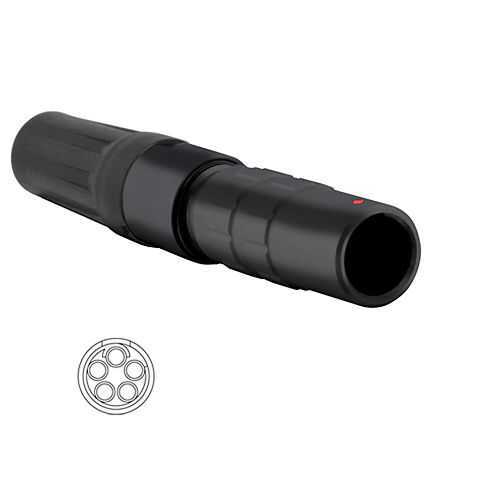

JBXPC0G05MSNDSMR Eaton: In line cable receptacle, IP40, size 0, 5 male contacts, cable clamp protective boot; JBXPC0G05MSNDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G05MSNDSMR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.86 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature: IP40/IP68 metallic housing provides rugged protection against dust and water ingress. Business Impact: Increases uptime and reduces field service costs by minimizing sealing failures. Application: Outdoor equipment, machine tools, and heavy-duty conveyors. Feature: Push-pull locking with a sealing gland and optional boot enables fast, tool-free mating while preserving ingress protection. Business Impact: Speeds assembly and maintenance, lowering labor costs and downtime. Application: Panel-mounted controls and robotic wiring harnesses. Feature: 5 male contacts in a compact 38 mm length, 10x10 mm footprint, 11.86 g weight, straight backshell. Business Impact: Enables dense harnessing and space optimization in tight control panels. Application: Instrumentation, process equipment, and small-form-factor automation modules. Feature: UL 1977 compliance coupled with IP ratings. Business Impact: Enhances regulatory acceptance and safety credibility, reducing compliance risk. Application: Industrial control panels and safety-critical installations. Feature: Backshell with sealing gland and optional boot, straight angle. Business Impact: Provides flexible installation options and enhanced sealing while maintaining compact form factor. Application: Industrial automation assemblies and field retrofits.
Get a Quick Quote for a Eaton JBXPC0G05MSNDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G05MSNDSMR?
Enquire Now
FAQs
Yes. The JBXPC0G05MSNDSMR is part of the JBX family and uses compatible backshell configurations, including a straight backshell and sealing gland with optional boot, enabling seamless integration into existing Souriau-based harnesses.
It uses 5 male contacts, with a 38 mm length and 10 mm width/height, weighs 11.86 g, and features IP40/IP68 protection. The backshell is straight, and the unit employs a sealing gland with optional boot. Complies with UL 1977.
Ideal for industrial automation, robotics, machine tools, and process equipment where rugged ingress protection, compact form factor, and reliable mating are essential, including outdoor installations and harsh manufacturing environments.
This connector carries UL 1977 compliance and IP40/IP68 protection ratings, ensuring safety in hazardous or moisture-prone environments. CE applicability should be verified per project requirements, as it is not specified in the provided data.
The tool-free push-pull mating and robust sealing reduce downtime during field maintenance, while the compact, durable design minimizes space-related integration challenges. Together, these factors improve MTBF and reduce total cost of ownership in automated systems.
