Eaton JBXPC0G05MSNDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G05MSNDSR
Quick Summary
The Eaton Souriau JBX series IP40/IP68 metallic push-pull connector is designed for robust cable-to-device connections in harsh industrial environments. Engineers often struggle with securing reliable sealing and mating reliability in demanding installations. This connector meets UL 1977 compliance and IP40/IP68 protection, with a straight backshell for straightforward cable routing and a compact footprint that supports dense panel layouts. Its lightweight 11.86 g profile and 38 mm length help optimize wiring & connectivity in automation equipment, robotics, and machine-builds, delivering both performance and cost efficiency.
Product Information
Extended Description

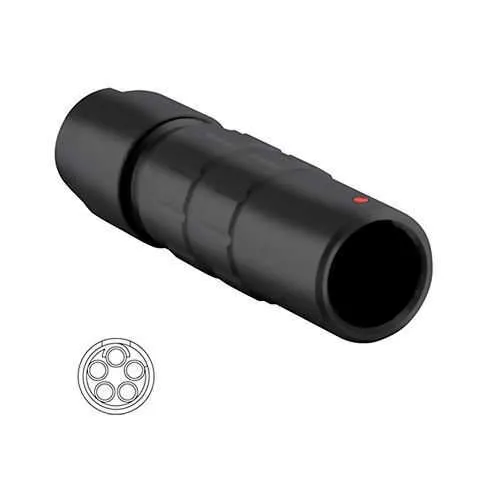

JBXPC0G05MSNDSR Eaton: In line cable receptacle, IP40, size 0, 5 male contacts, cable clamp backshell; JBXPC0G05MSNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G05MSNDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.86 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
The IP40/IP68 metallic housing provides rugged durability that reduces downtime in dusty or wet environments, improving uptime and maintenance costs. In practice, this translates to fewer field failures and simpler serviceability for control cabinets and automation equipment. The Sealing Gland backshell with a cable clamp backshell ensures reliable sealing and strain relief, directly reducing ingress risk and extending cable life in outdoor or washdown scenarios. At 38 mm long and 10x10 mm in footprint, the connector occupies minimal space while offering 5 male contacts for combined power and signal needs, ideal for compact machine architectures. UL 1977 compliance adds an extra layer of regulatory confidence for control panels and equipment installations. Compatibility with the JBX series simplifies spares and maintenance, while the straight backshell eases in-field assembly, even in restricted spaces. This design supports faster harnessing and standardized installation practices across factory floors, contributing to measurable reductions in assembly time and total cost of ownership.
